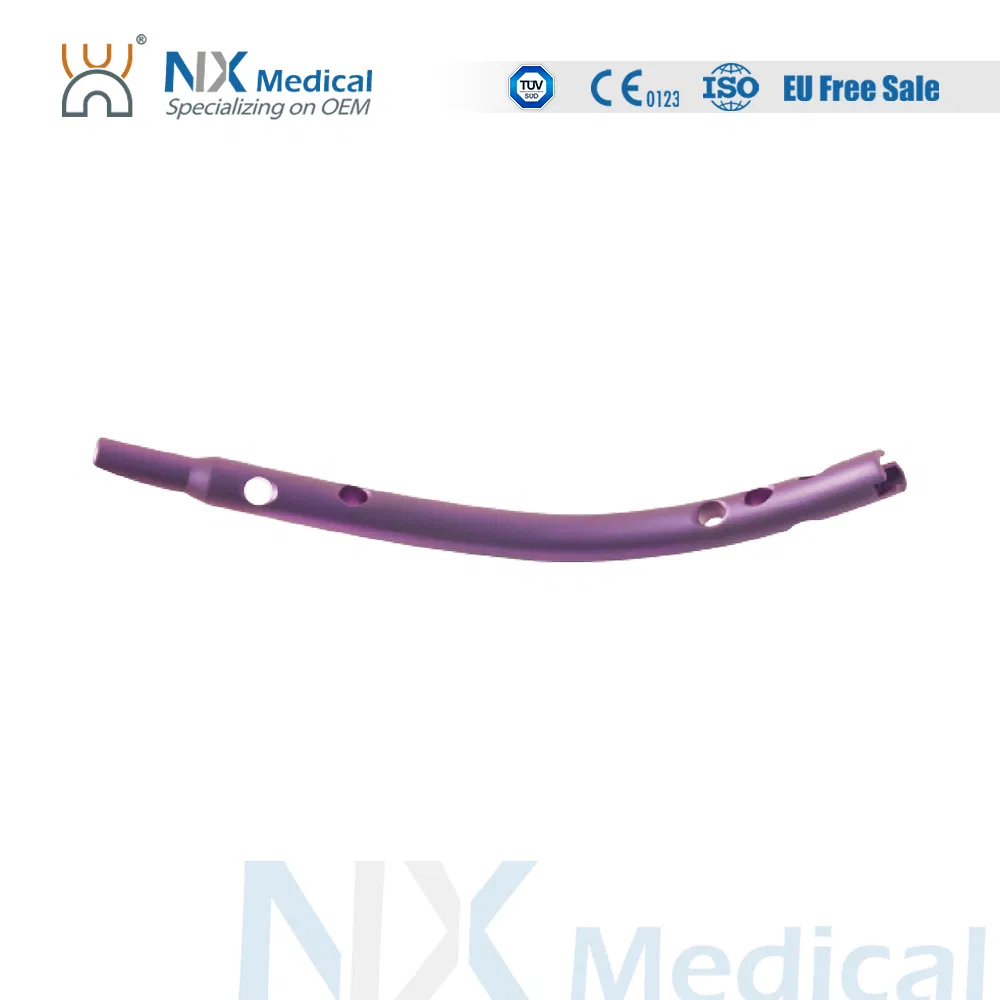

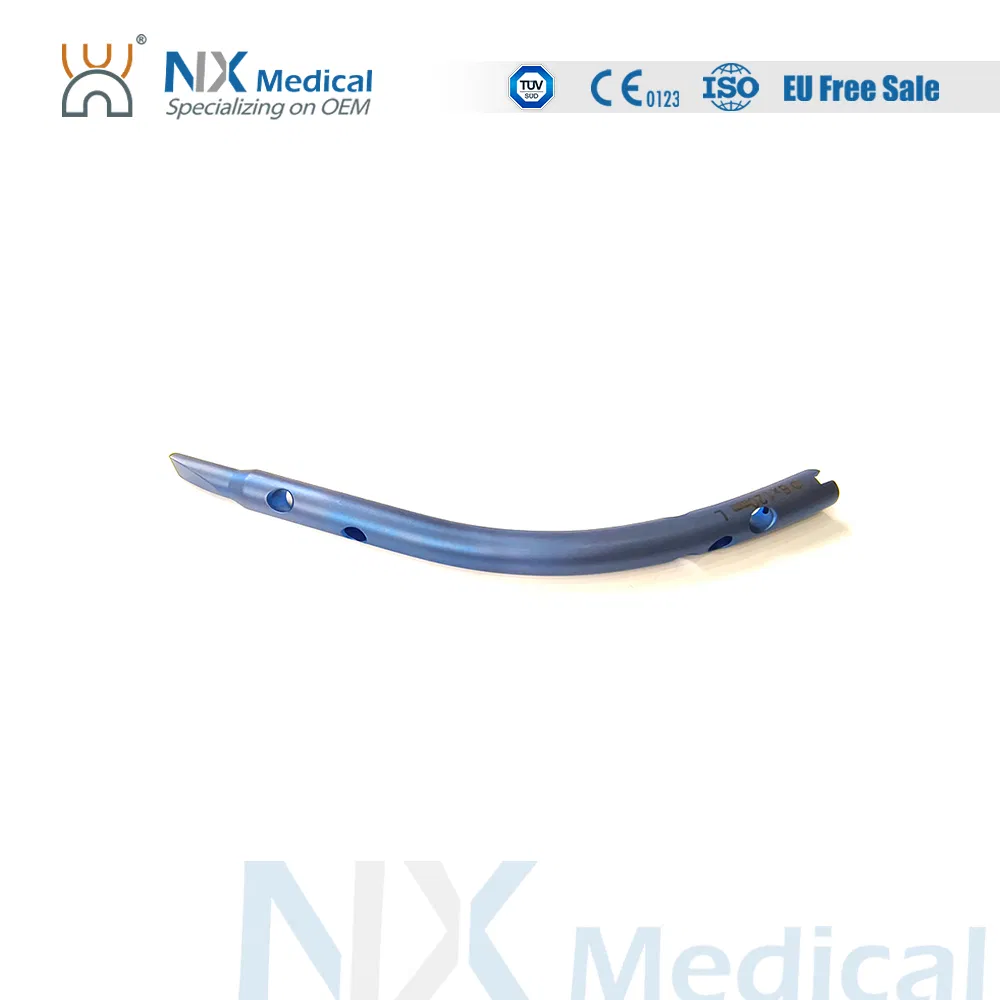

China Factory Nx Medical Orthopedic Trauma Implant Titanium Retrograde Tibial Intramedullary Nail

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
NXGGK01
Usage
Fracture Fixation
Using Site
Tibia
Certification
ISO, CE
Material
Titanium (TA)
Guarantee
Two Years

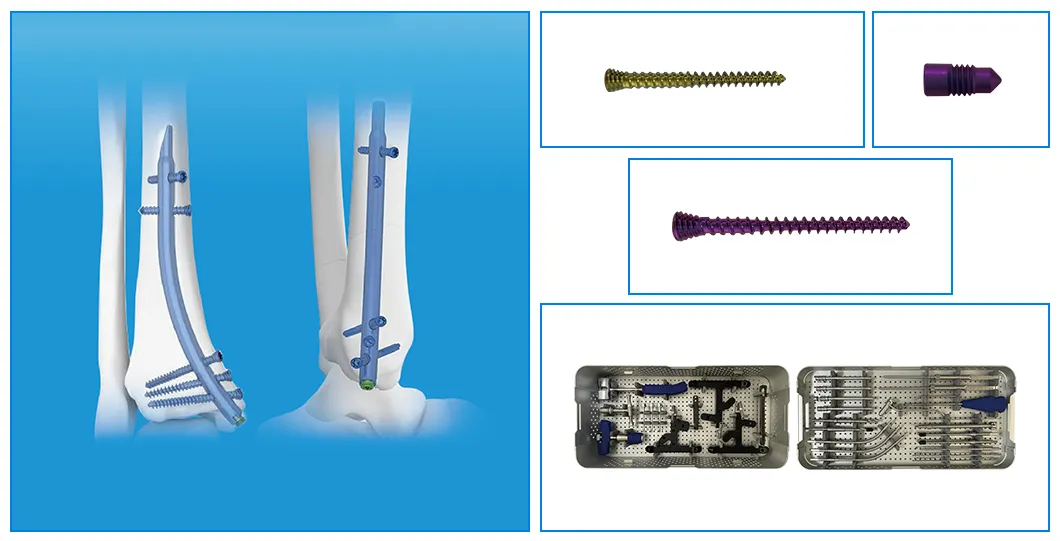

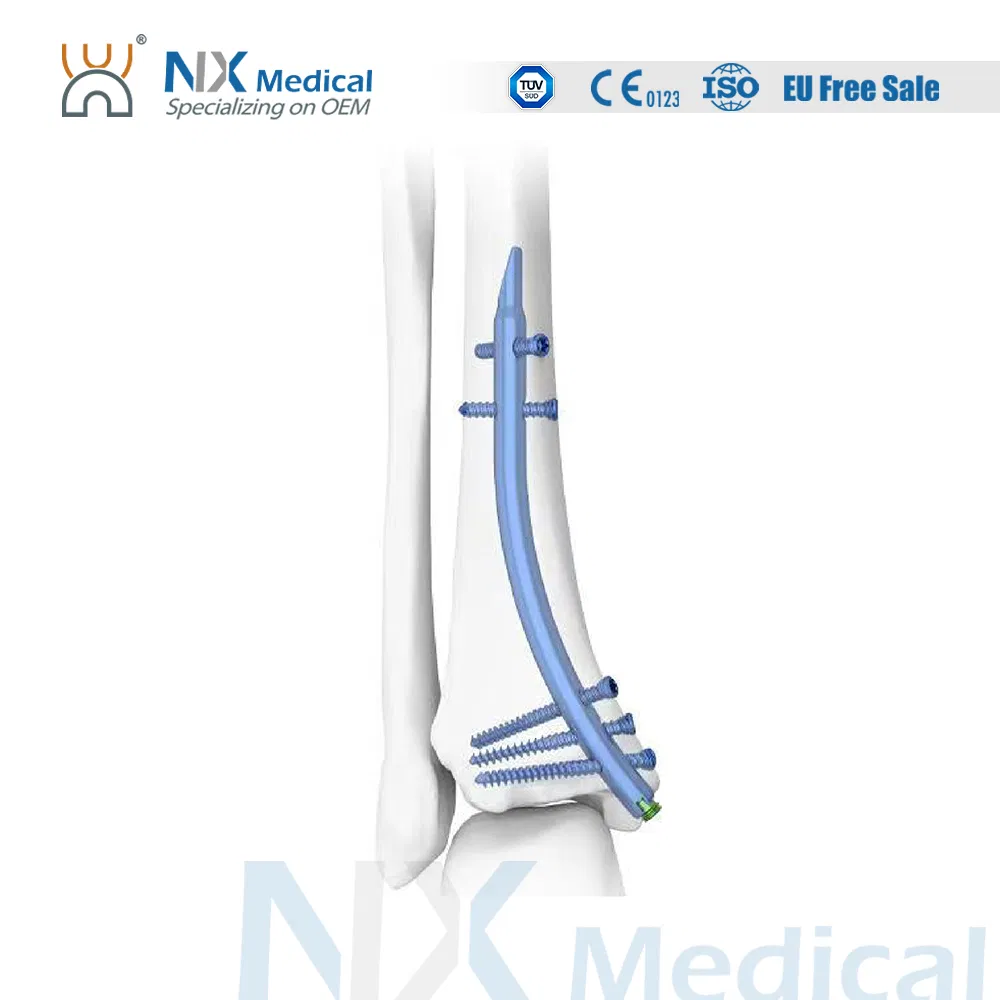

Retrograde Tibial Nail System
1

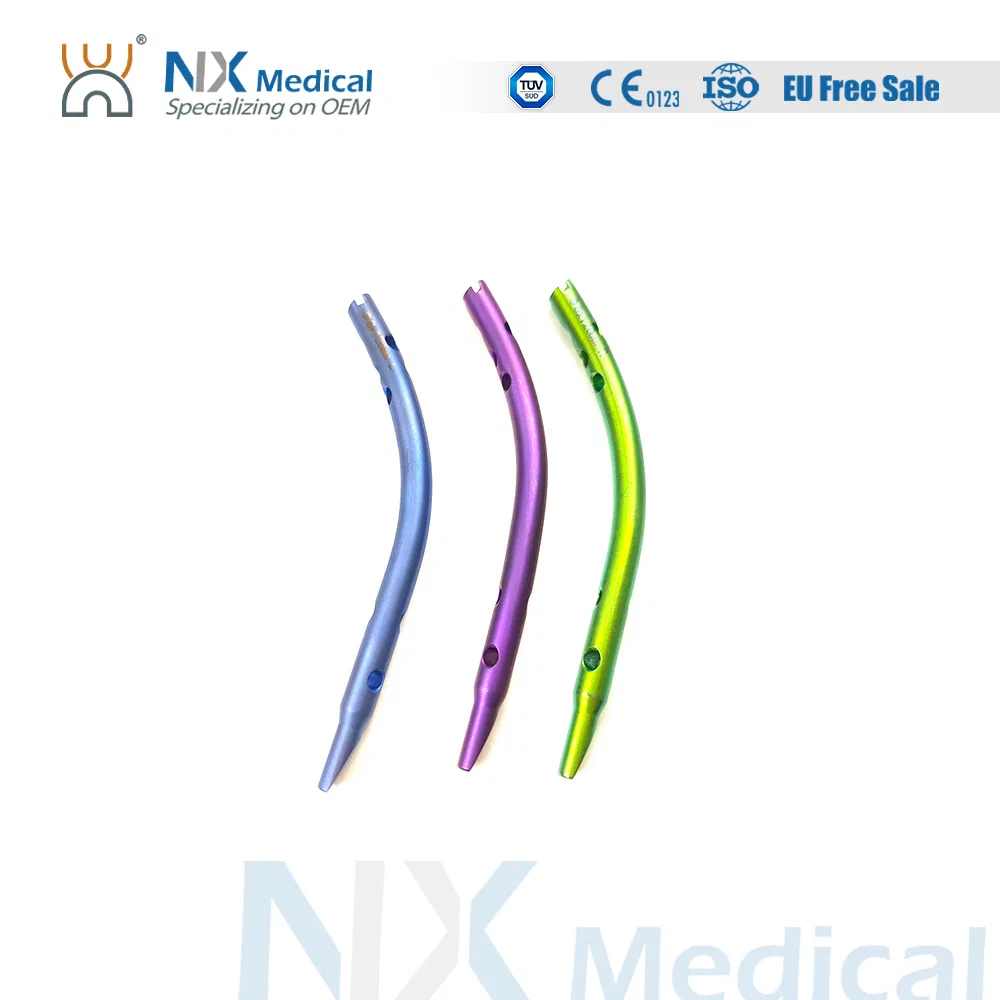

Colour coding to easily differentiate nail sizes for surgical efficiency.
2
Proximal oblique cutting design reduces irritation to soft tissues of the medial malleolus.
3
Two proximal interlocking screws prevent fracture rotation and displacement.
4
Distal flat cutting design of the nail avoids insertion difficulties during the procedure.
5
Three distal divergent locking screws provide highly effective support and fixation.
6
Advanced, user-friendly instruments facilitate precise nail insertion.
7
Carbon fiber jigs facilitate accurate preparation for the first distal screw insertion.
Product Specifications
Product Component Size / Length (mm) Material
Retrograde Tibial Nail 7 x 110 / 8 x 120 / 8 x 140 Titanium (TA)
φ3.5mm Interlocking Cancellous Screw 30 / 32 / 34 to 52 (2mm increments) Titanium (TA)
φ3.5mm Interlocking Cortical Screw 18 / 20 / 22 / 24 / 26 / 28 Titanium (TA)
φ4.0mm Interlocking Cortical Screw 24 / 26 / 28 / 30 / 32 / 34 Titanium (TA)
Retrograde Tibial Nail End Cap Standard / 5mm Titanium (TA)
Profile and Capabilities

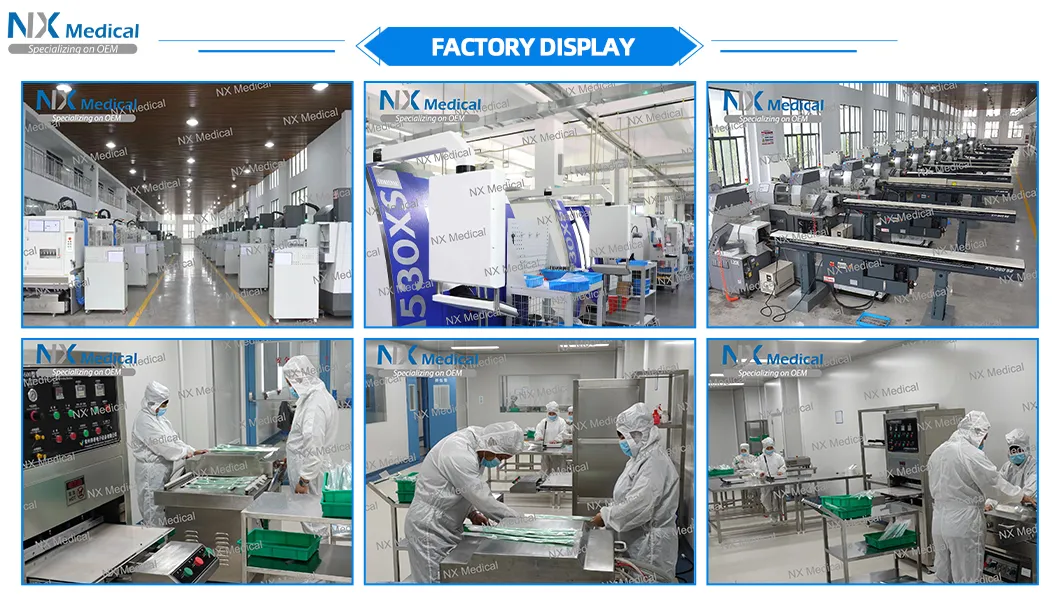

The manufacturer is a leading orthopedic product provider located in East China, offering a comprehensive range of cost-effective surgical and reliable therapeutic solutions. With a commitment to the global orthopedic industry, there is continuous investment in R&D to provide superior trauma implants, spinal implants, and surgical instruments worldwide.

Quality is paramount; a strict internal quality system ensures frequent self-audits. The facility is compliant with ISO13485, and products are certified by TUV CE0123 and NMPA. The goal is to provide the safest and most advanced implants that ensure reliable operating procedures and rapid recovery for patients.

Certifications
Frequently Asked Questions
Can I request a sample order?
Yes, we welcome sample orders to test and verify quality. Mixed samples are also acceptable for evaluation.
Do you offer customized manufacturing?
Yes, we have a complete design department and advanced CNC machinery to provide high-precision customized services based on specific requirements.
What is the typical sample lead time?
For existing items, samples are ready within 3 days. For OEM or customized products, the process typically takes approximately 2 weeks.
Can you brand products with our specific logo?
Yes, logo printing is available for both the products and the packaging, provided the minimum order quantity (MOQ) requirements are met.
How is product quality ensured before shipping?
We conduct strict sampling inspections on all products prior to shipment and ensure that all packaging is intact to maintain product integrity.
How do I proceed with a formal order?
First, share your requirements or application needs. We will provide a quote based on those details. Once the sample is confirmed and a deposit is placed, we will arrange production.
