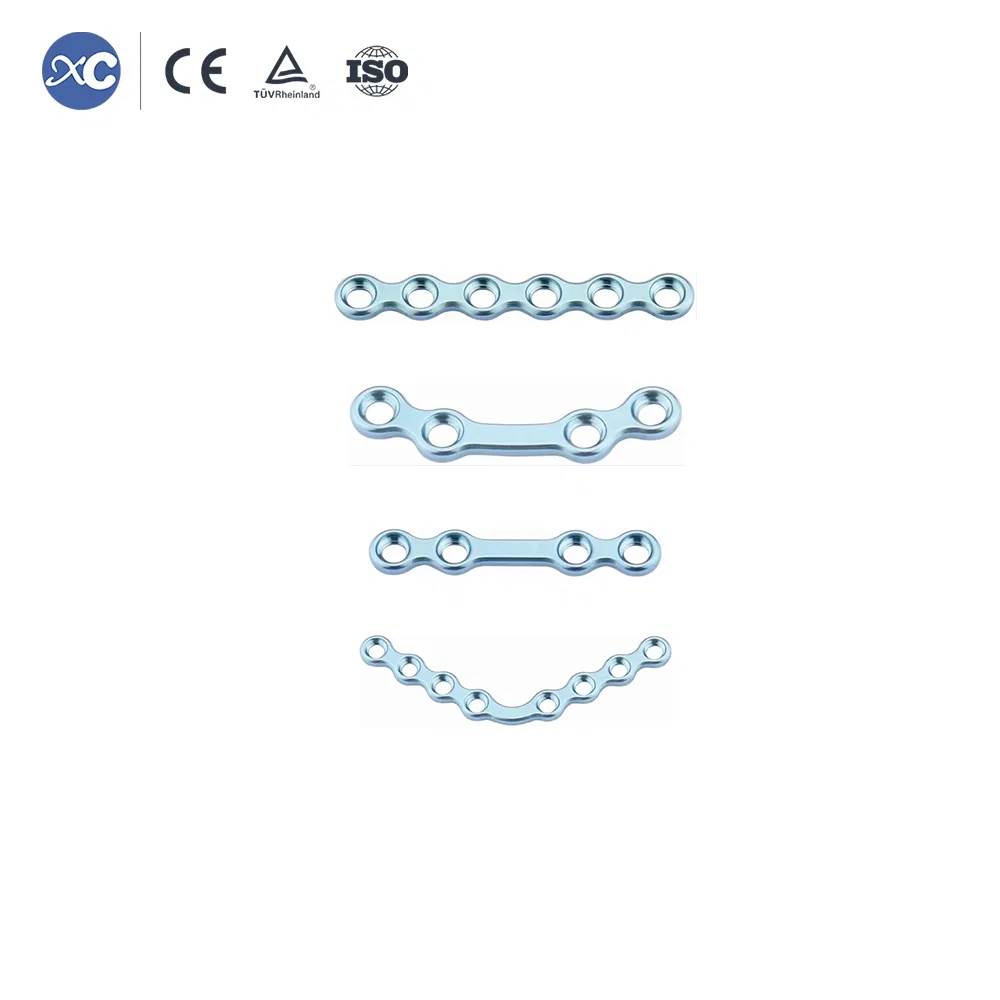

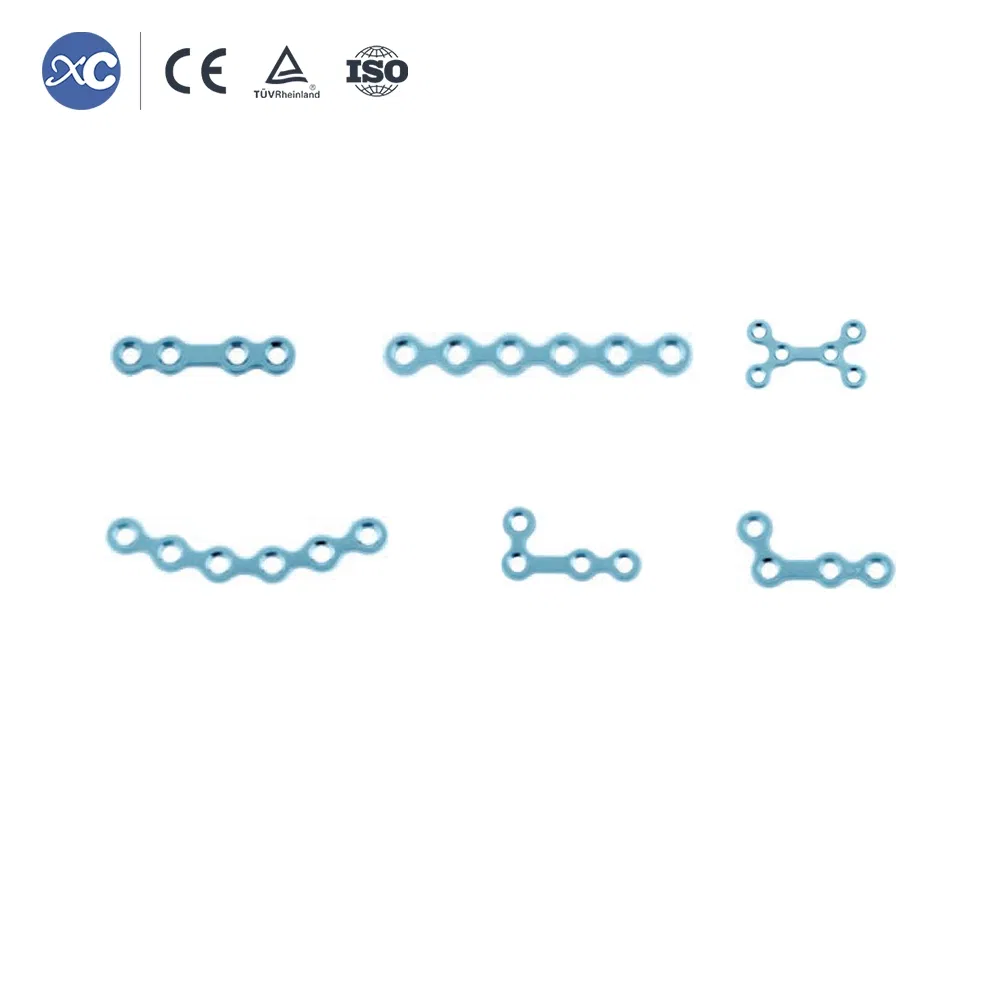

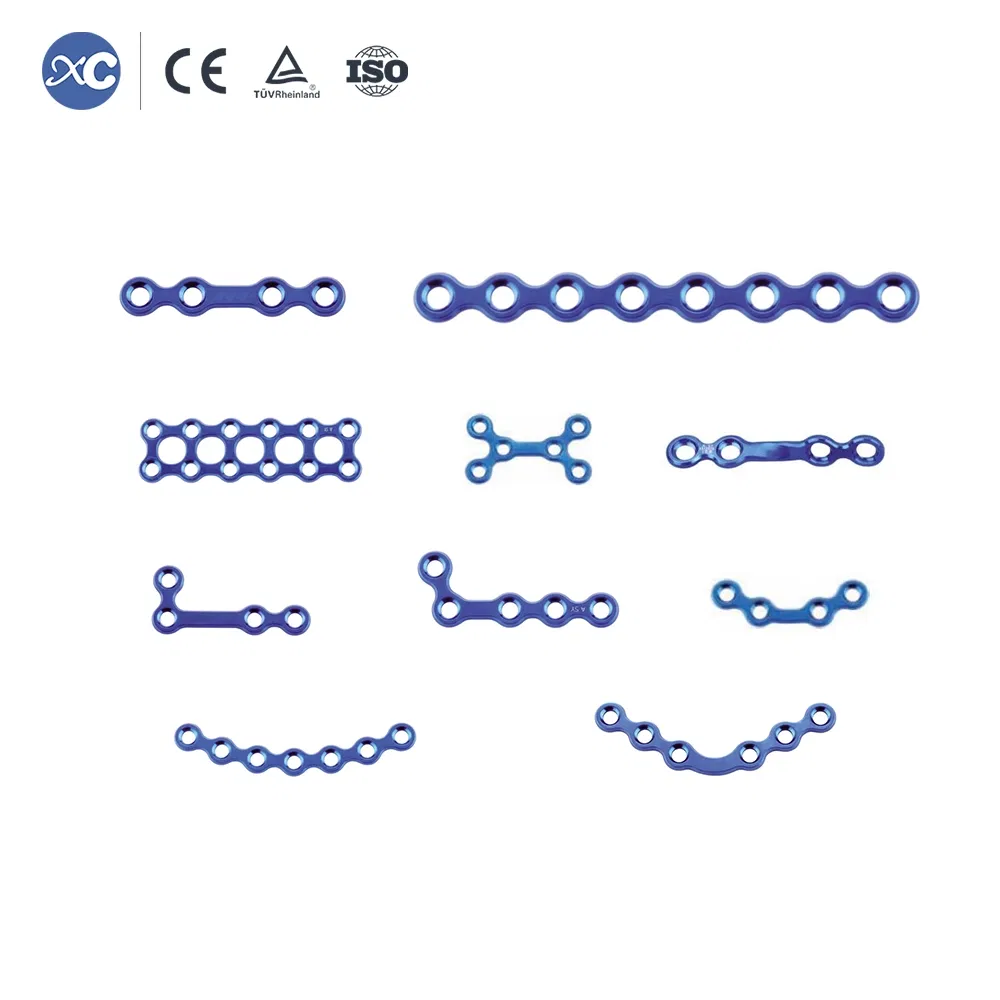

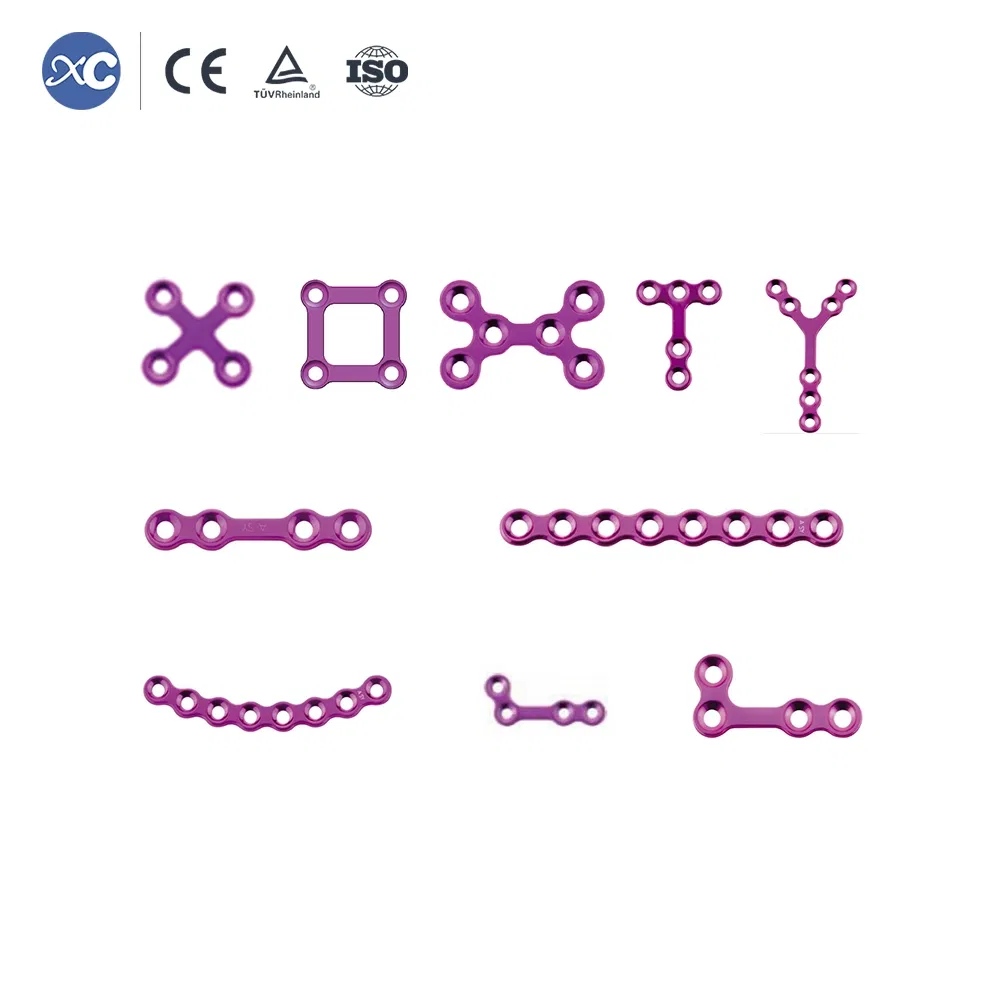

| 1.5mm Locking Plates (Thickness: 0.6mm) | ||
|---|---|---|
| Maxillofacial Micro Locking X-Plate | RP1HS414X1 | 4 holes, 0.6mm, 14mm |
| Micro Locking Rectangular Plate | RP1HS414J1 | 4 holes, 0.6mm, 14*14mm |
| Micro Locking Straight Bridge Plate | RP1HS420J1 | 4 holes, 0.6mm, 20mm |
| Micro Locking Straight Plate | RP1HS624Z1 - RP1HS1456Z1 | 6-14 holes, 0.6mm, 24-56mm |
| Micro Locking Arc Plate | RP1HS623H1 - RP1HS1449H1 | 6-14 holes, 0.6mm, 23-49mm |
| 2.0mm Locking Plates (Thickness: 0.8mm - 1.4mm) | ||
|---|---|---|
| Mini Locking Straight Bridge Plate | RP2HS424ZQ2 | 4 holes, 0.8mm, 24mm |
| Mini Locking Double Y-plate | RP2HS623SY2 | 6 holes, 0.8mm, 23mm |
| Mini Locking 90°L-plate | RP2HS420L2 | 4 holes, 0.8mm, 20mm |

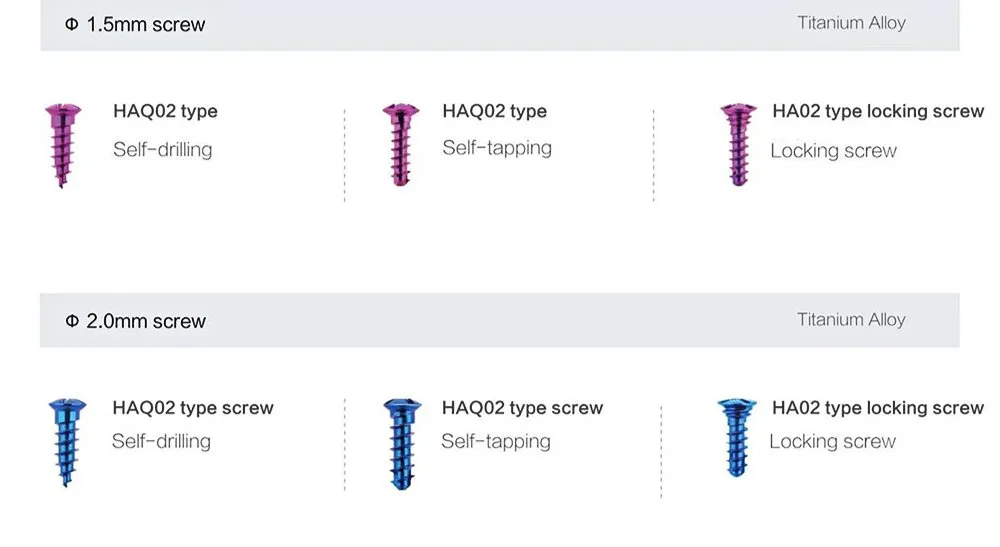

| Self-tapping Locking Screw | RSH205D5SZG | 2.0*5.5mm - 2.0*11mm |
Plates have no front or back, usable on both left and right sides for maximum surgical efficiency.

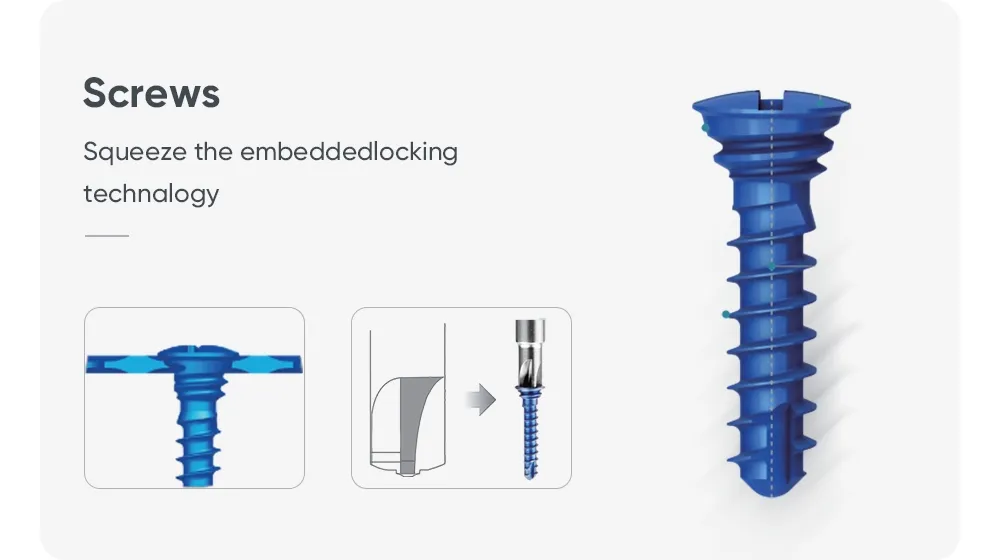

Radial compression fit between screw and plate ensures strong, stable fixation independent of bone quality.
Supports both locking and non-locking fixation for greater flexibility and broader clinical indications.

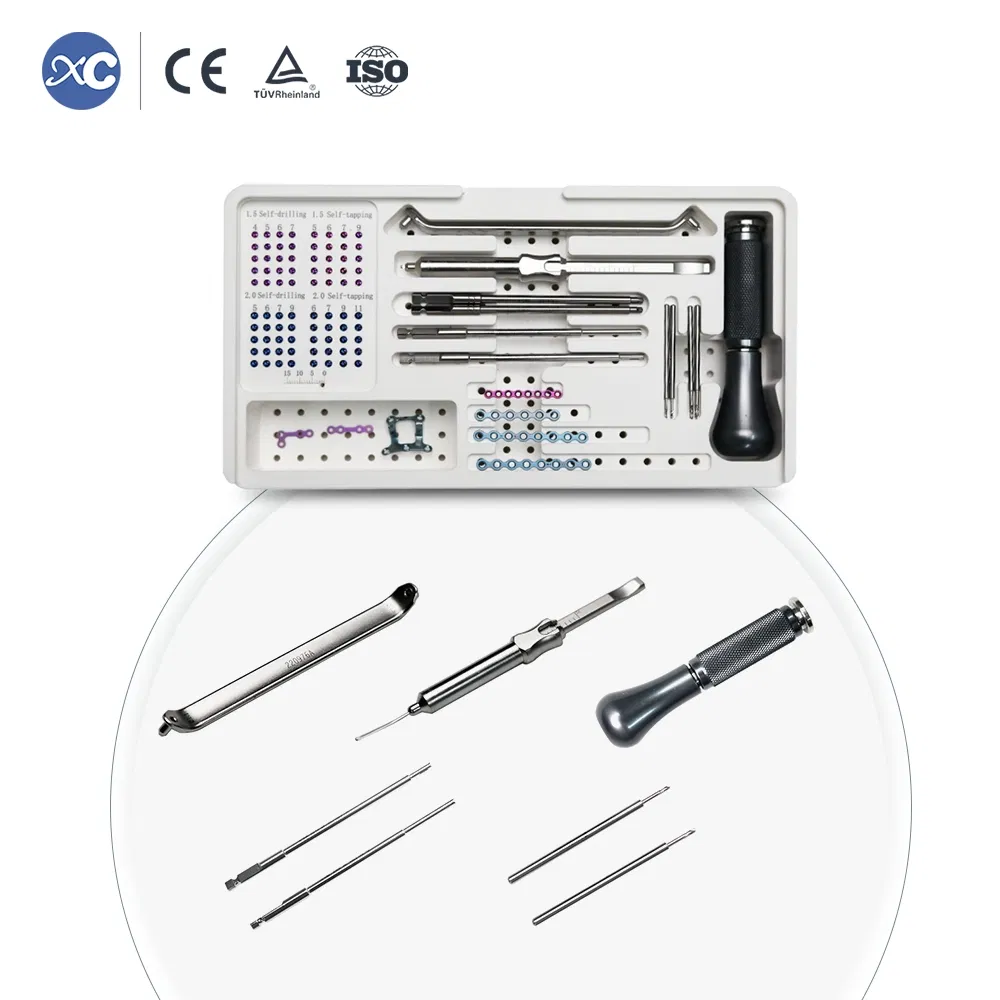

Professional 1.5/2.0mm Maxillofacial Plate Instrument Set designed for precision implantation.

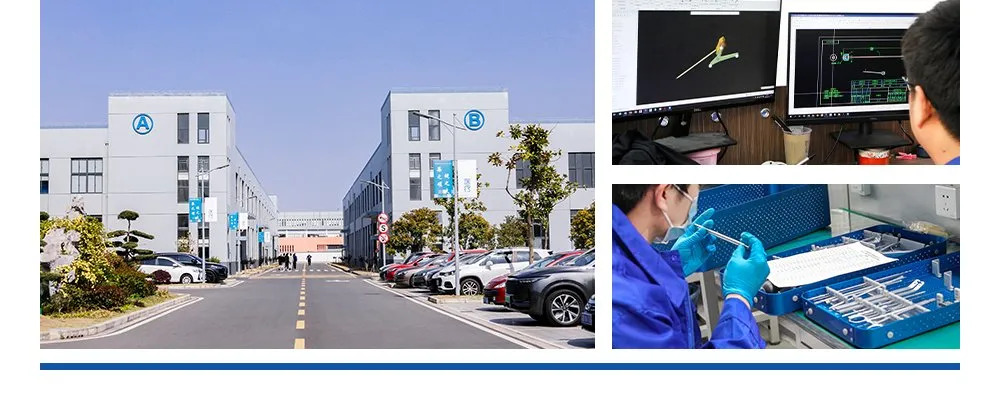

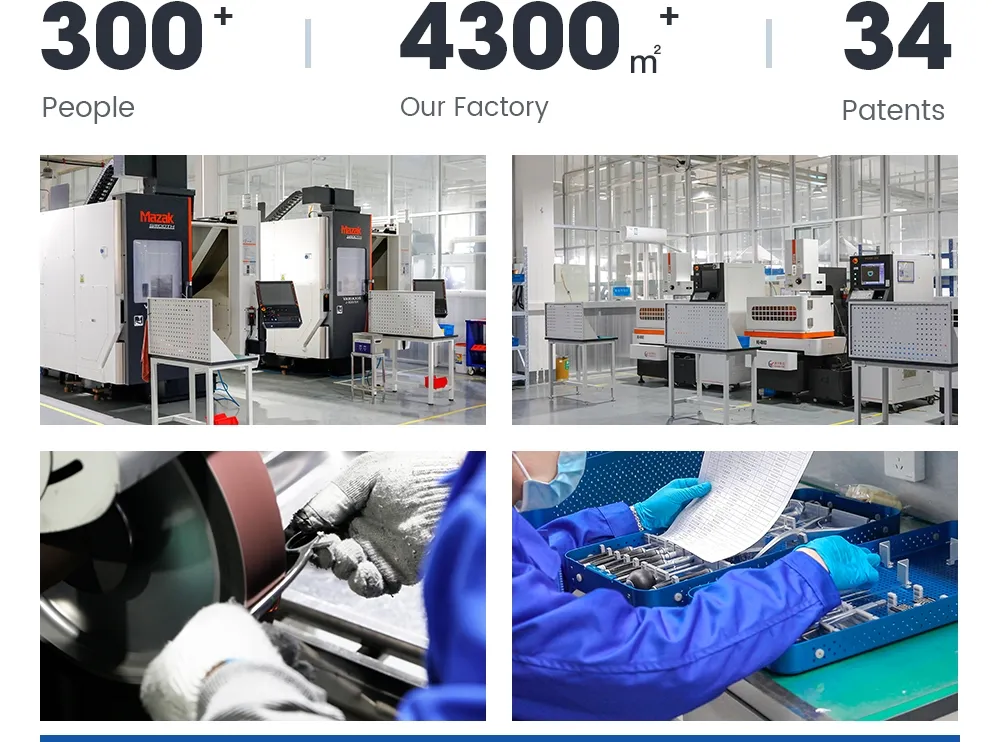

We provide a full range of orthopedic implants and instruments. As a professional manufacturer with dedicated production lines and warehouses, we ensure the highest standards of quality control.
With over 15 years of research and development, our expertise spans across six main series: spinal systems, interlocking nail systems, locking plate systems, basic instrument systems, and medical power tools, including veterinary orthopedic solutions.
