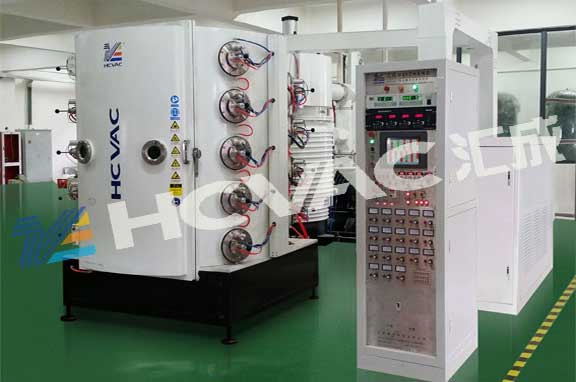

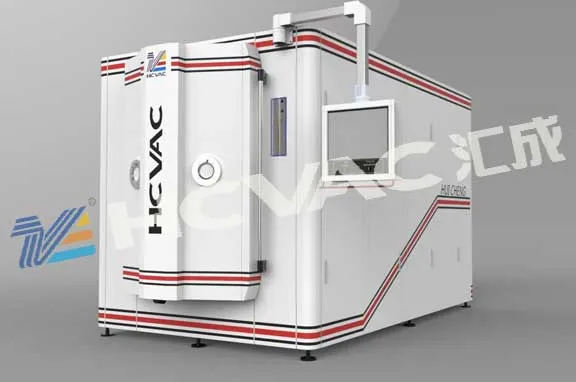

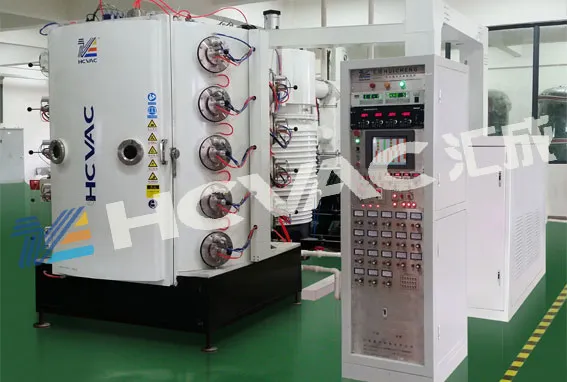

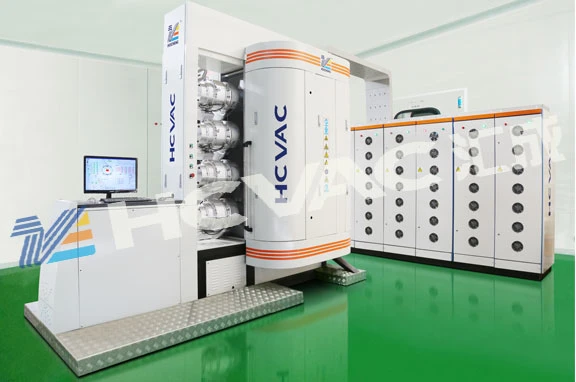

High-performance titanium gold vacuum plating system designed for premium surface finishing.

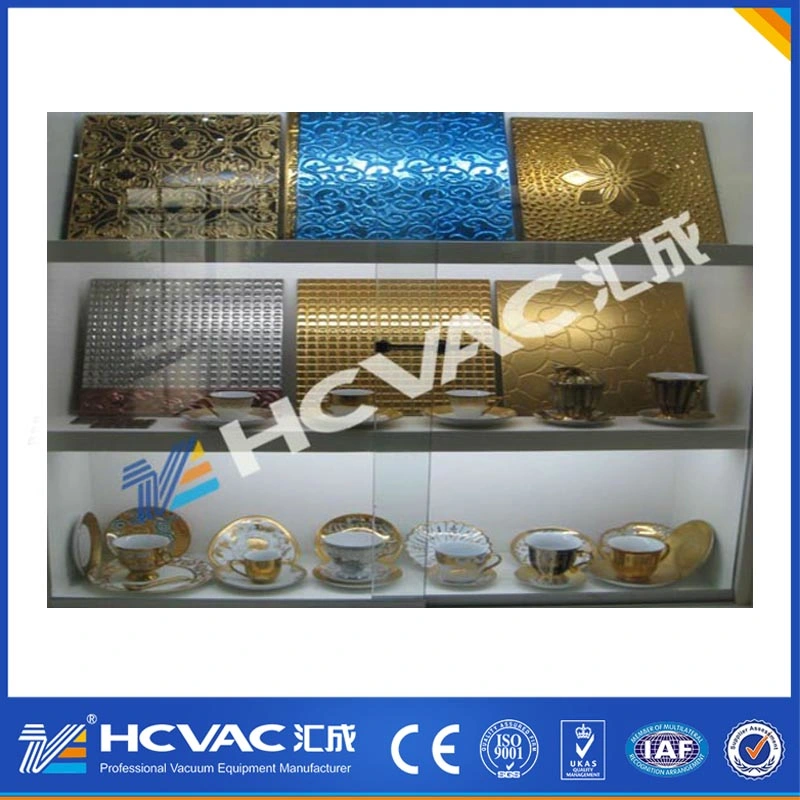

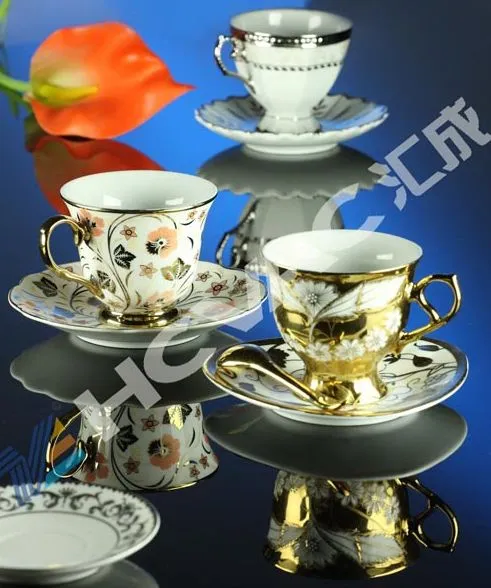

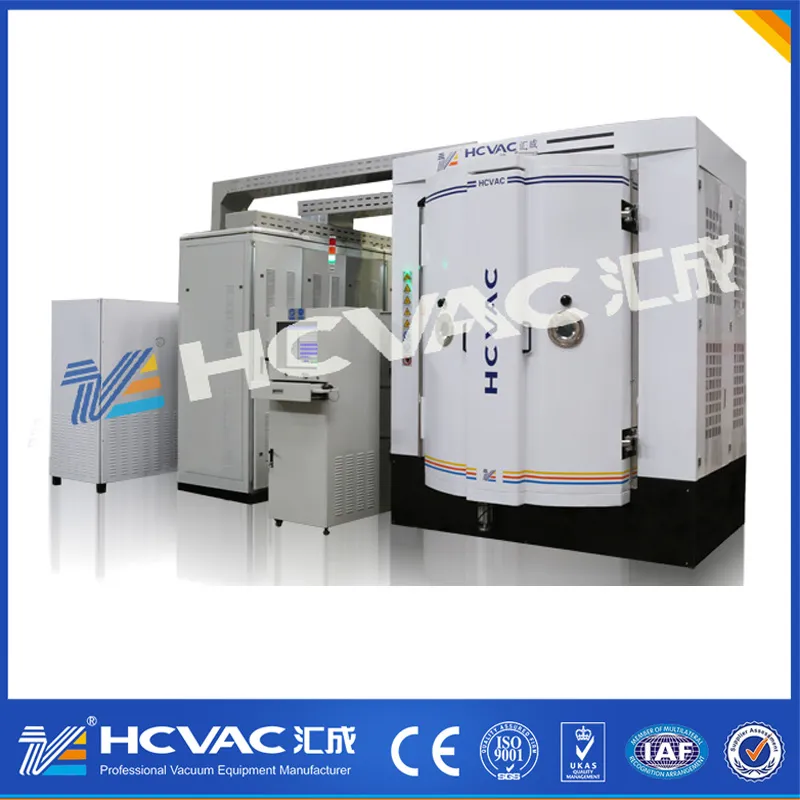

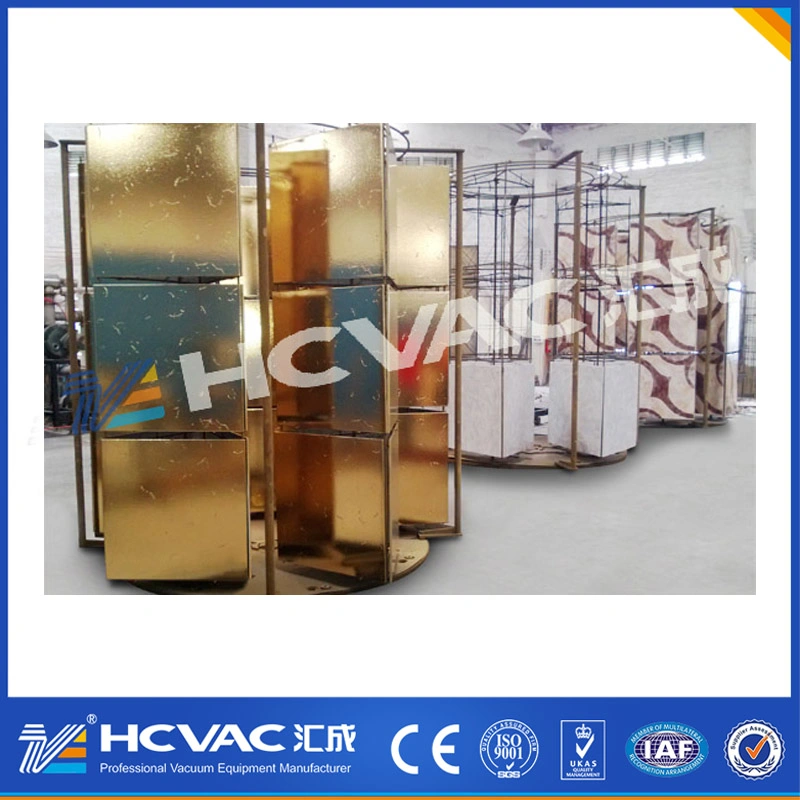

The PVD Ion Deposition Machine is engineered to coat ceramic tiles, tableware, porcelain, floor tiles, and glass mosaics. Beyond ceramics, this versatile system effectively coats metal and glass products. Our high-capacity models are capable of coating up to 1500 square meters per day.

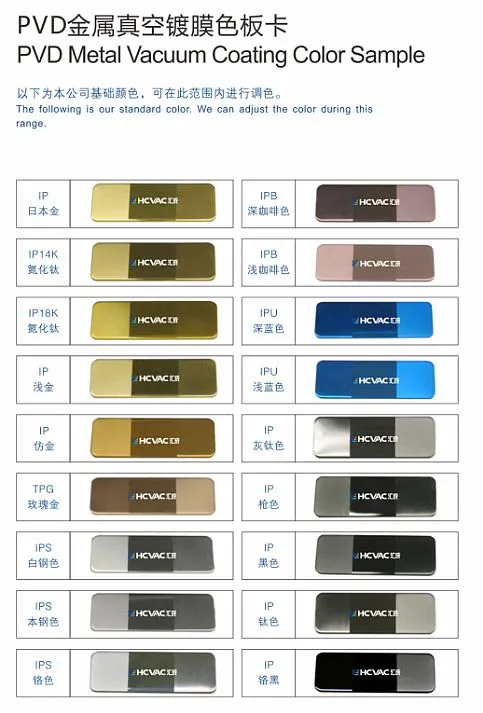

This system deposits TiN (gold), Ti (silver), and other durable coatings. It serves as a superior alternative to traditional gold paint, significantly enhancing adhesion, reducing costs, and boosting production efficiency.
Operating on the electric arc principle, the machine integrates cold cathode arc discharge with magnetron sputtering technology. This thins particles to improve film properties on both metal and non-metal surfaces.
| Model / Dimension | LH-800 | LH-1250 | LH-1416 | LH-1618 |
|---|---|---|---|---|
| Chamber Size | 800*1000mm | 1200*1500mm | 1400*1600mm | 1600*1800mm |
| Arc Targets | 8 Targets | 12 Targets | 14 Targets | 20 Targets |
| Power Source | Electric-arc power, Filament power, Pulsed bias power supply | |||
| Vacuum System | Molecule/Diffusion pump + Roots pump + Mechanical pump | |||
| Control Mode | Manual / Automatic / PLC + HMI Control | |||
| Max Temperature | 350°C PID control, radiation heating | |||
