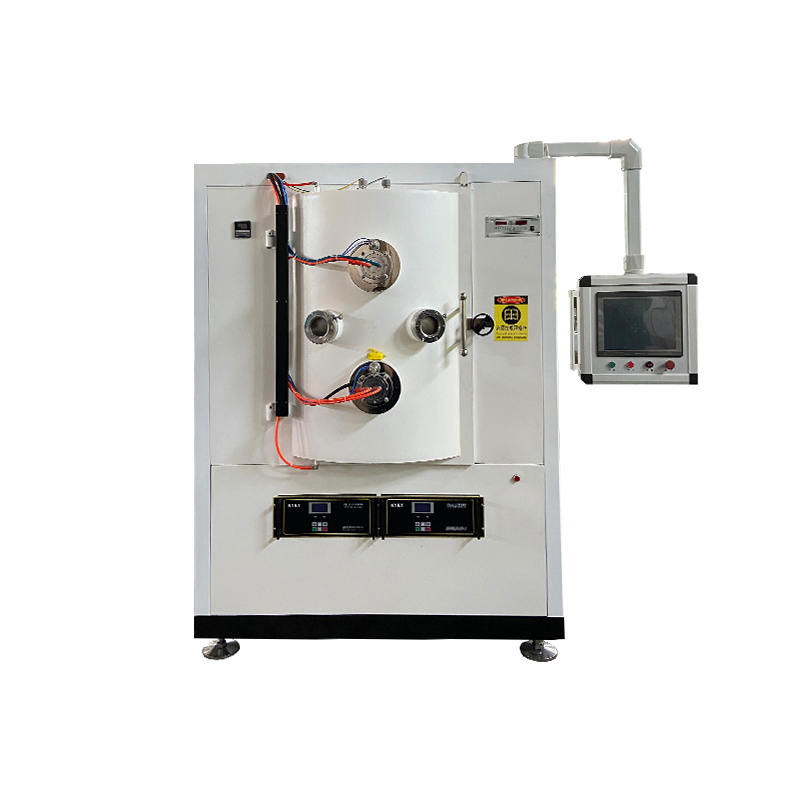

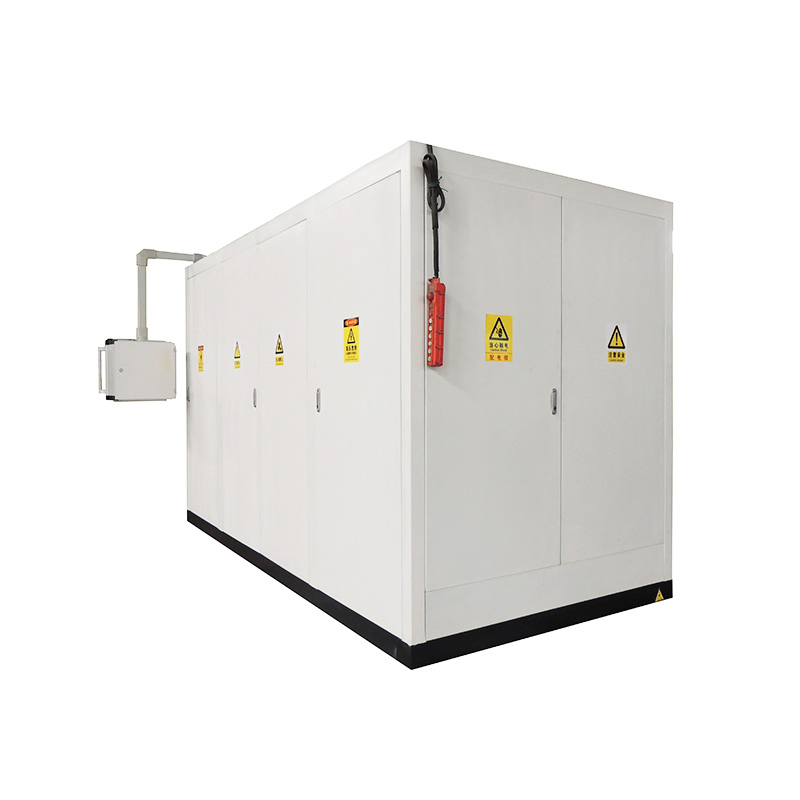

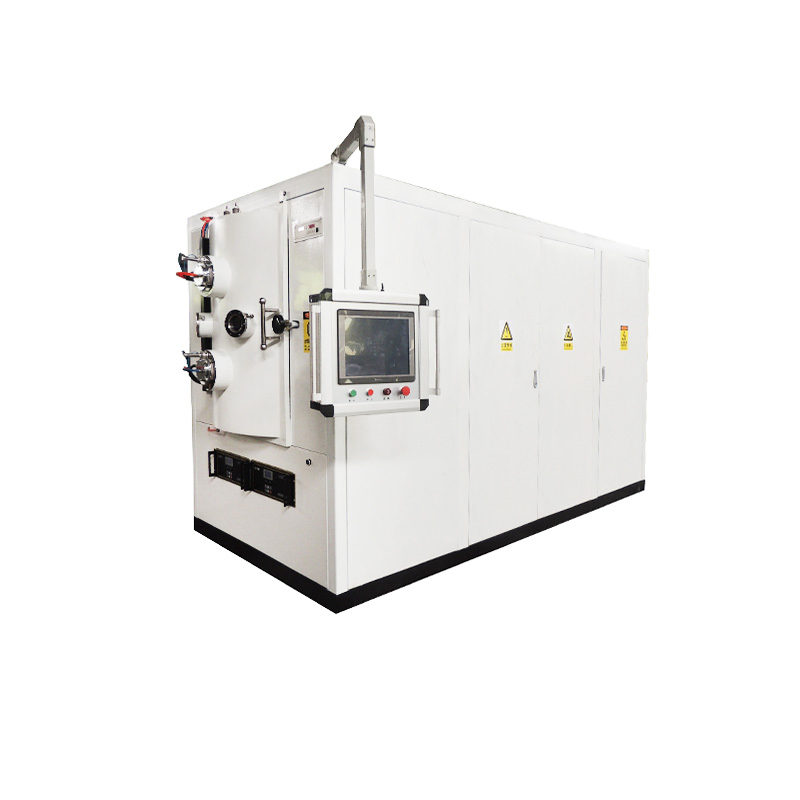

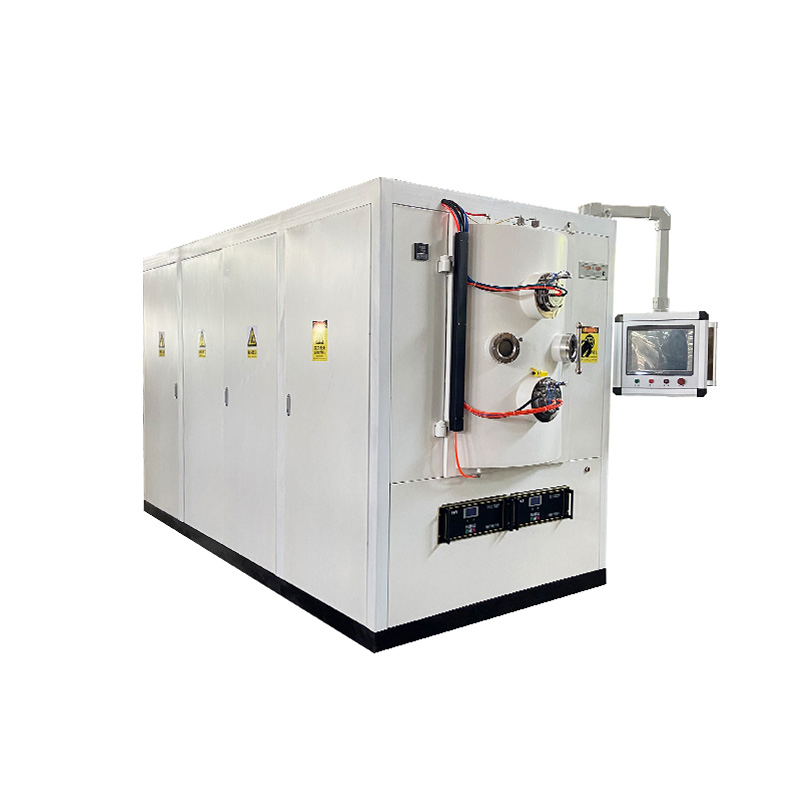

Titanium Nitride Coating Equipment is a high-tech environmental friendly product for metal, glass and surface coating. It significantly improves workpiece hardness, wear resistance, and overall durability. Based on arc deposition technology, the ARC series is the ideal system for producing PVD hard coatings on metal tools, molds, and dies.
| Parameter | Details |
|---|---|
| Model | ARC series |
| Vacuum Chamber | SUS304, φ600mm-1200×600-1200mm (H) |
| Substrate Dome Size | Customized to requirements |
| Rotation Speed | 10 rpm to 50 rpm (Variable) |
| Arc Sources | 2 to 16 sets |
| Vacuum System | Diffusion/Turbo Molecular Pump + Mechanical Pumps |
| Ultimate Pressure | 5.0×10⁻⁴ Pa or lower |
| Pump Down Rate | 25 minutes (Atm. to 5.0×10⁻³ Pa) |
| Substrate Heater | Up to 550°C |
| Layout Dimensions | 5000mm(W) × 6500mm(D) × 3500mm(H) |
| Power Requirements | 3-phase, 380V, 50/60Hz, 100-180kVA |
| Gross Weight | Approx. 8500kg |

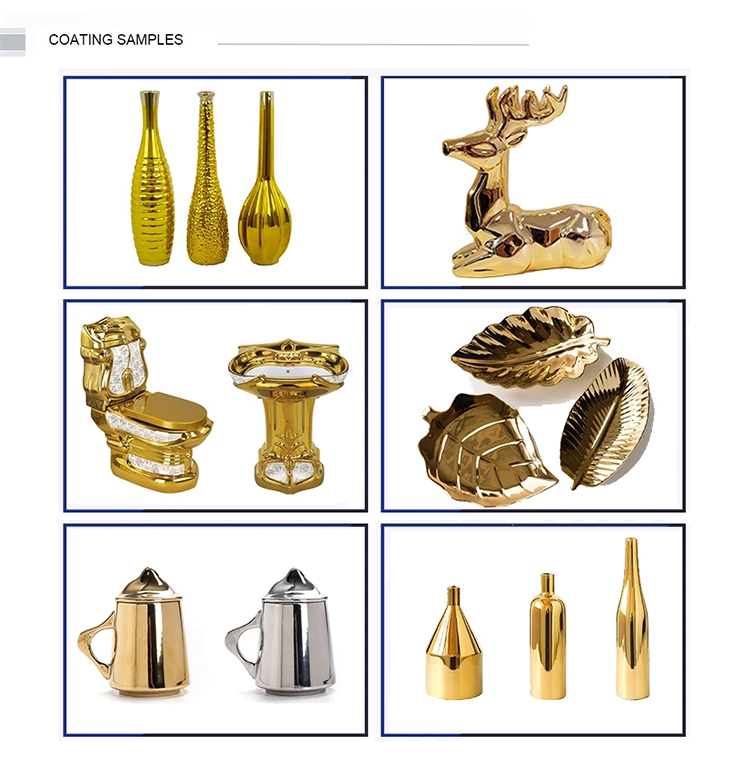

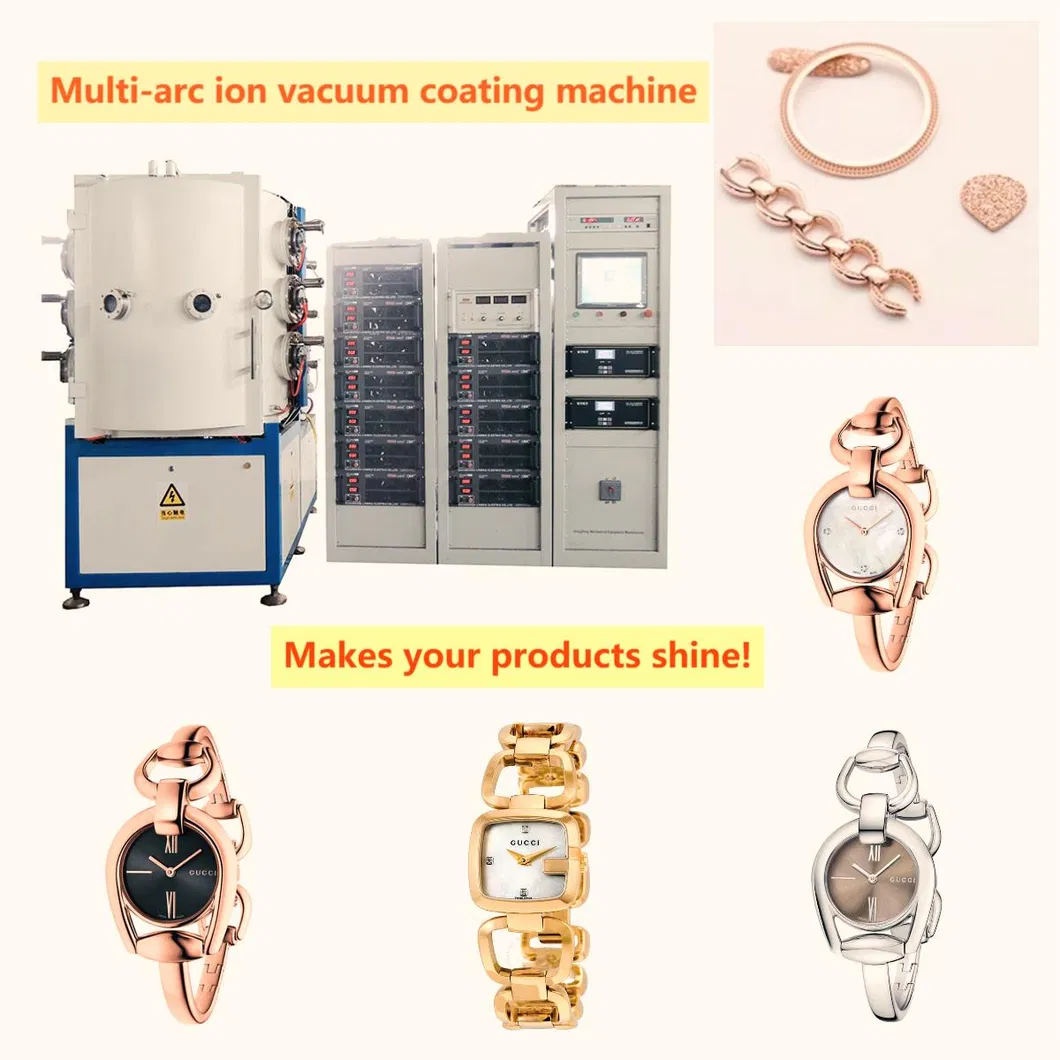

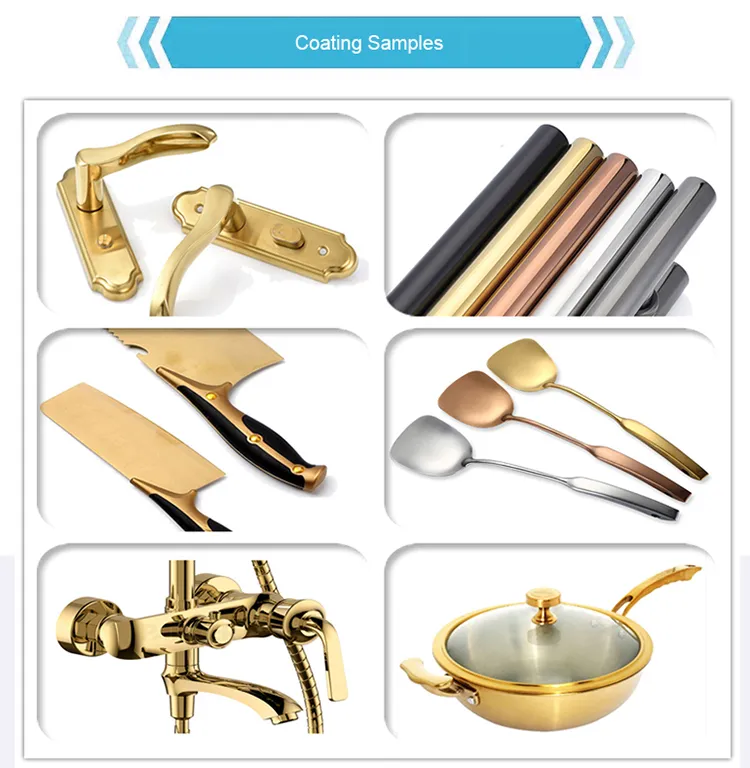

Suitable for watch industry, ceramics, hardware (sanitary ware, locks), architecture (stainless steel railings), precision molds, and automotive components (pistons, alloy wheels).
