Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement

1 / 5

Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement

Customization:	Available
Type:	Power Drill
Kind:	Orthopedics

Send Inquiry

Product Description

📋 Basic Information

Model NO.

ND-3511

Certification

CE, ISO13485

Group

Adult

Product Name

Surgical Power Drill

Operating Principle

Total Hip Replacement

Motor

Brushless Motor

Warranty

2 Years

Voltage

100V-240V

Torque

750g/Cm

Package

Aluminum Box

🩺 Product Description

Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement

Our medical instruments and devices are broadly applied in traumatic surgery, joint surgery, orthopedic surgery, and neurosurgery operations. These units are suitable for K-wires or intermediary interlocking nail surgery and arthroscopic surgery. The entire unit is autoclavable, featuring an imported motor to ensure low noise, high speed, high proper alignment, and a long service life. The system can easily adopt various flexible reamers and chucks during surgical processes.

📊 Technical Data

Working Voltage	14.4V
Output Power	130W
Unit rise in Temperature	≤ 25ºC
Input Voltage	AC 220V, 50Hz
Output Voltage	14.4V, 900mA
Charger Input Power	30VA
Charging time	3 hours
Speed	300r/min
Non-loaded noise	63dB(A)
Radial run-out	0.5mm
Torque	33000gcm

💎 Product Technical Merits

Designed specifically for joint operations.
Low speed with great torque, compatible with various acetabulum burnishing and medullary cavity expanding tools.
Main unit can be sterilized by high temperature and high pressure up to 135 ºC.
Excellent quality, portable design, low noise, and variable speed control.
Carbonless motor available for increased power and selection during operation.
Scientific balance technology reduces vibration and enhances handpiece control for comfortable operation.
High concentricity ensures precision in polishing the acetabulum during HIP operations.

📸 Product Display

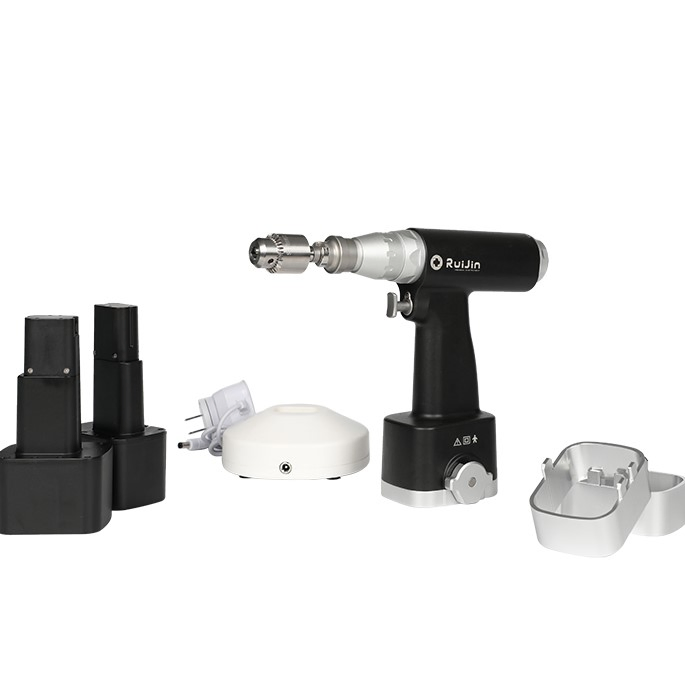

Standard Configuration: One handpiece, one charger, two batteries, one sterilizing channel, one drill chuck, and one aluminum alloy box.

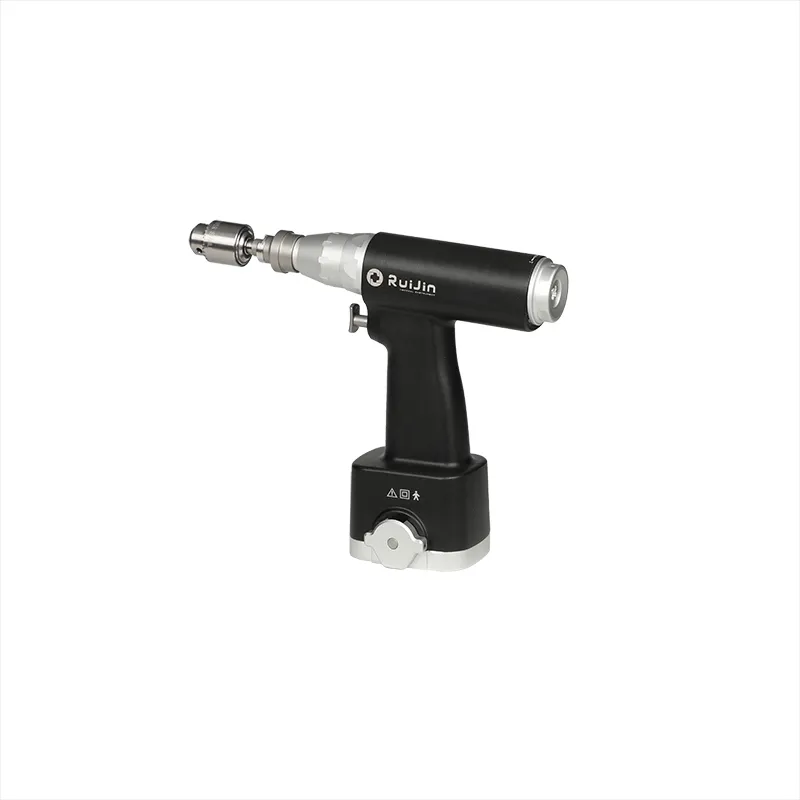

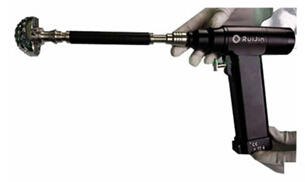

Hip joint drill with various optional adaptors

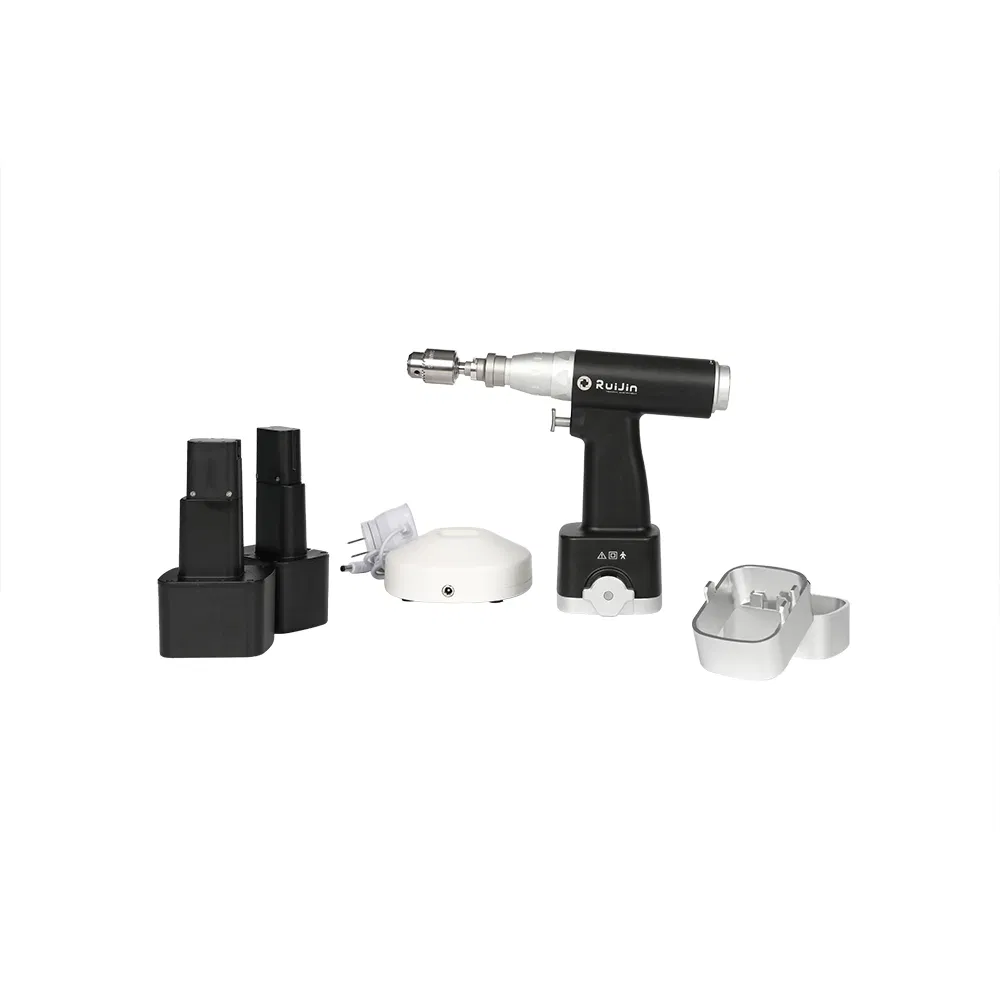

Set includes 2pcs batteries for continuous power

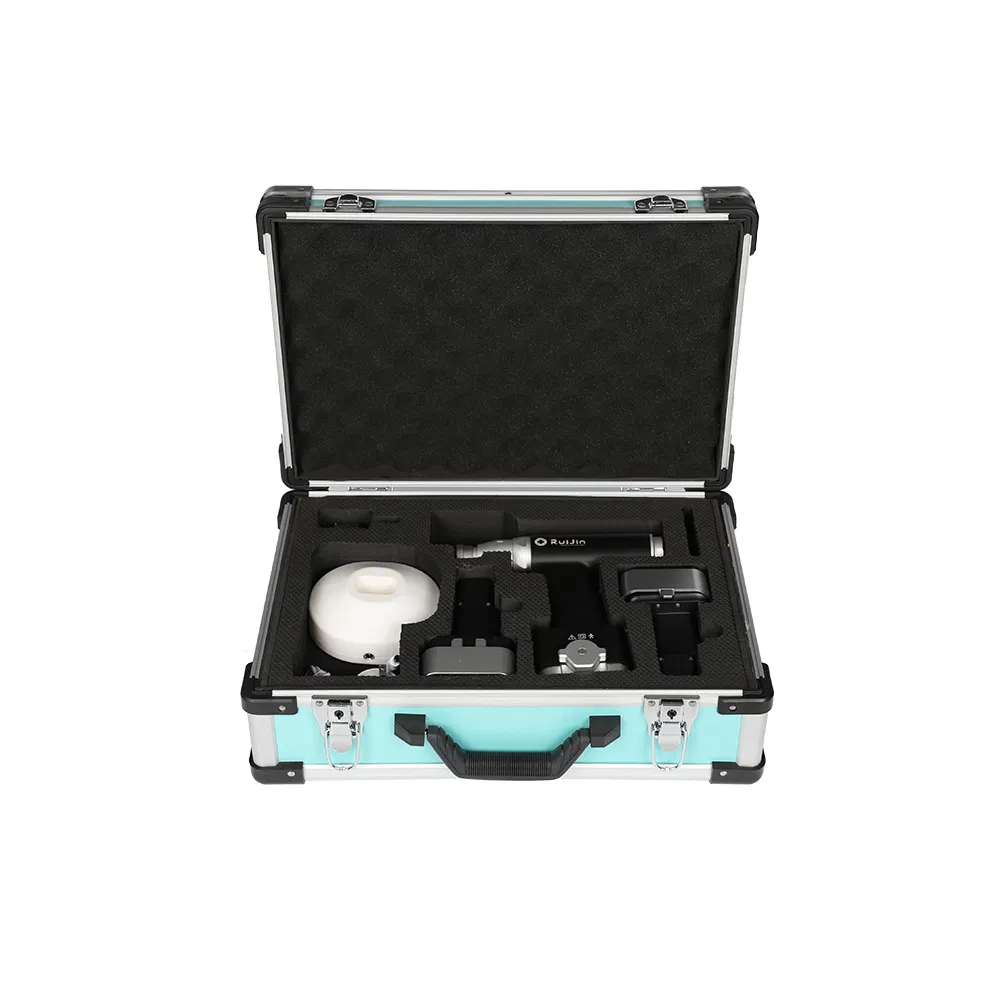

Complete set with protective aluminum case

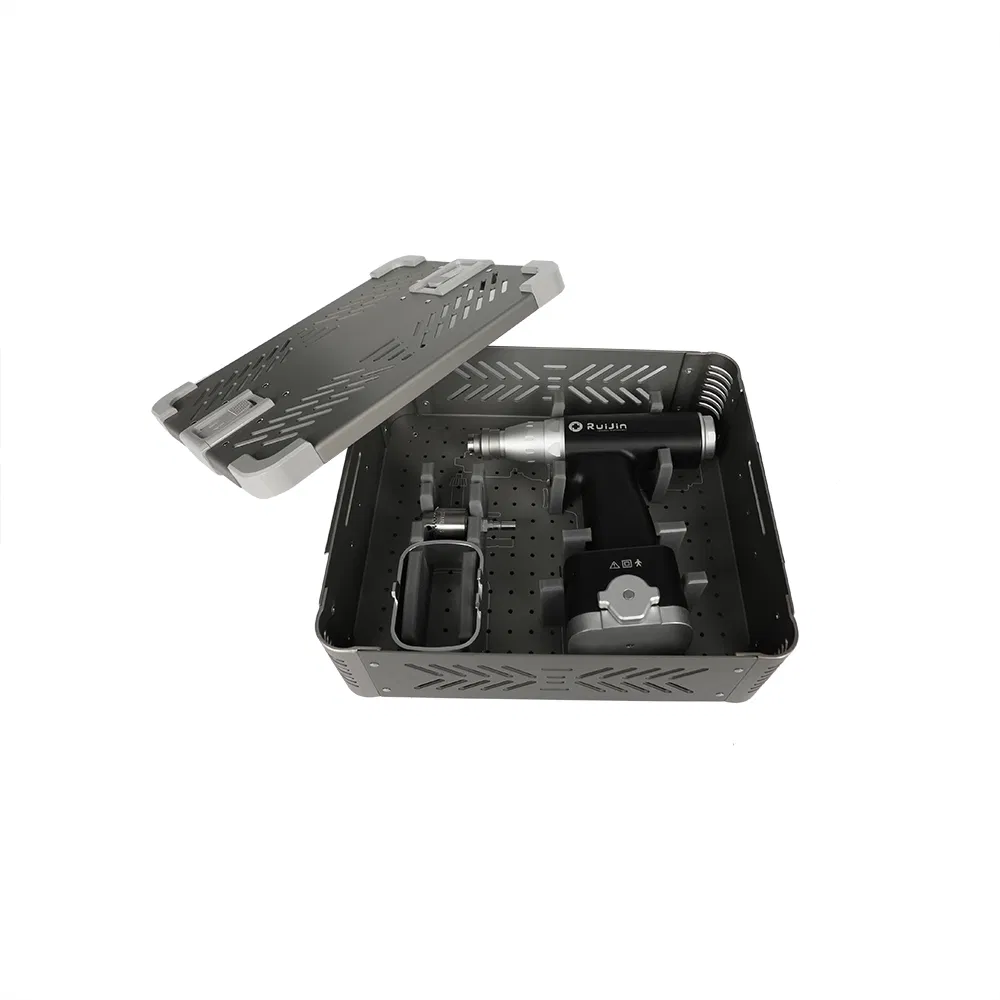

Specialized sterilization tray (Optional)

📜 Quality Certification

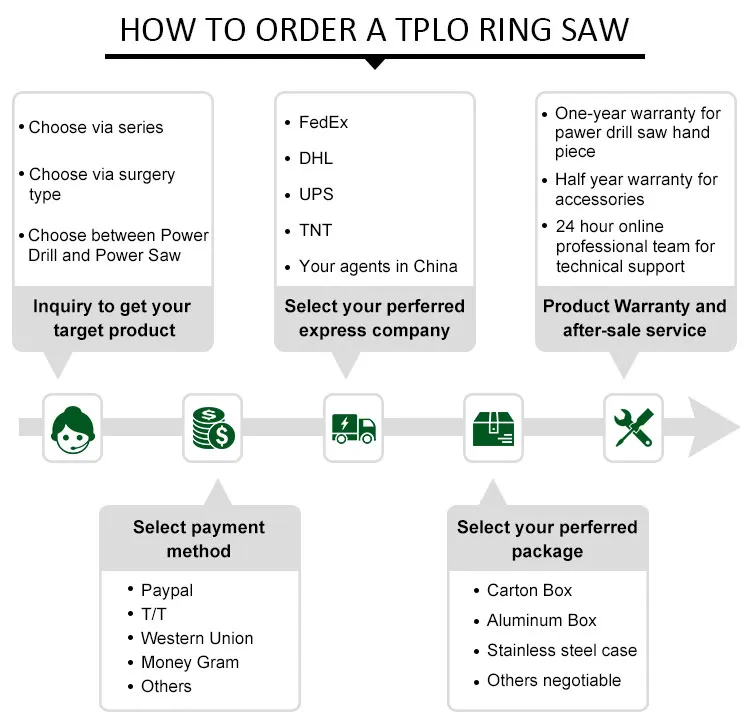

⚙️ Operation & Ordering

⚠️ Attention & Notes

1. Professionals Only	The device is forbidden to be dismantled by non-professionals.
2. Power Source	Chargeable, matches 110V/60Hz - 220V/50Hz electricity sources.
3. Battery Maintenance	Remove battery when not in use to prevent automatic discharge.
4. Sterilization	Batteries cannot be disinfected. Sterilization temperature must be below 135°C.
5. Cleaning	Clean drill bits and saw blades with a purifier and keep dry after operation.

Frequently Asked Questions

Q1: What types of surgery is this power drill suitable for? A: It is widely used in trauma surgery, joint surgery (specifically total hip replacement), orthopedic surgery, and neurosurgery operations.

Q2: Can the entire unit be sterilized in an autoclave? A: Yes, the main handpiece and components are autoclavable up to 135°C. However, please note that batteries cannot be disinfected and should be kept dry.

Q3: What is the typical charging time for the batteries? A: The battery requires approximately 3 hours to reach a full charge. Each standard set includes two batteries to ensure continuous operation.

Q4: Is the motor compatible with different adaptor brands? A: Yes, the hip joint drill can be used with various optional adaptors, including those from Stryker, AO, Hudson, and Synthes.

Q5: What is the warranty period for this surgical drill? A: This product comes with a professional 2-year warranty for the machine components.

Q6: What comes included in the standard package? A: The standard configuration includes one handpiece, one charger, two batteries, one sterilizing channel, one drill chuck, and one aluminum alloy protective box.
