Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
1 / 3
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery

Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Overview
Model NO.
Evans
Usage
Correct Deformities, Fracture Fixation
Package
Carton
Specification
30x23x2
Trademark
Redleaf
Origin
China
🛠️ Product Description

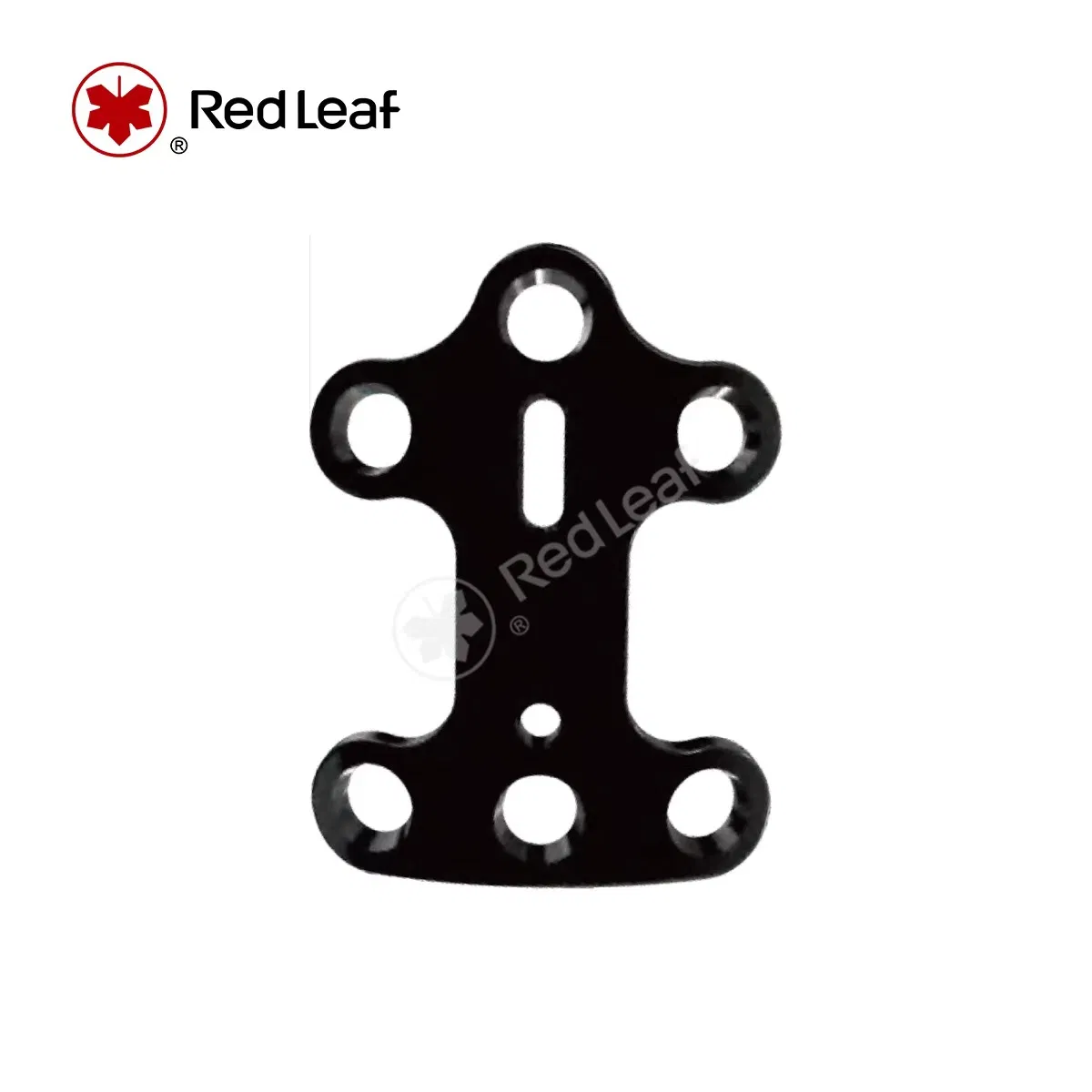

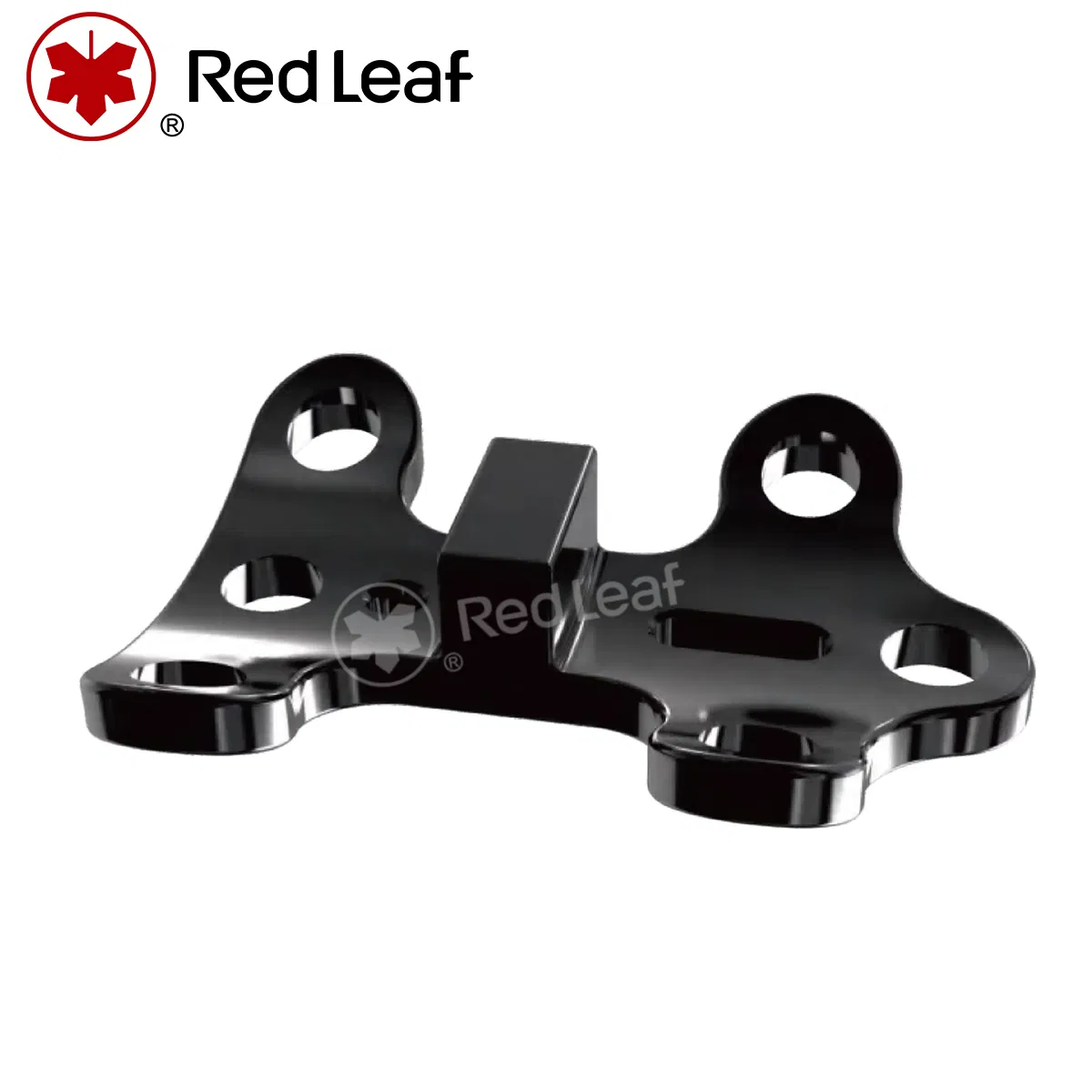

Orthopedic Locking Plate
Design Concept

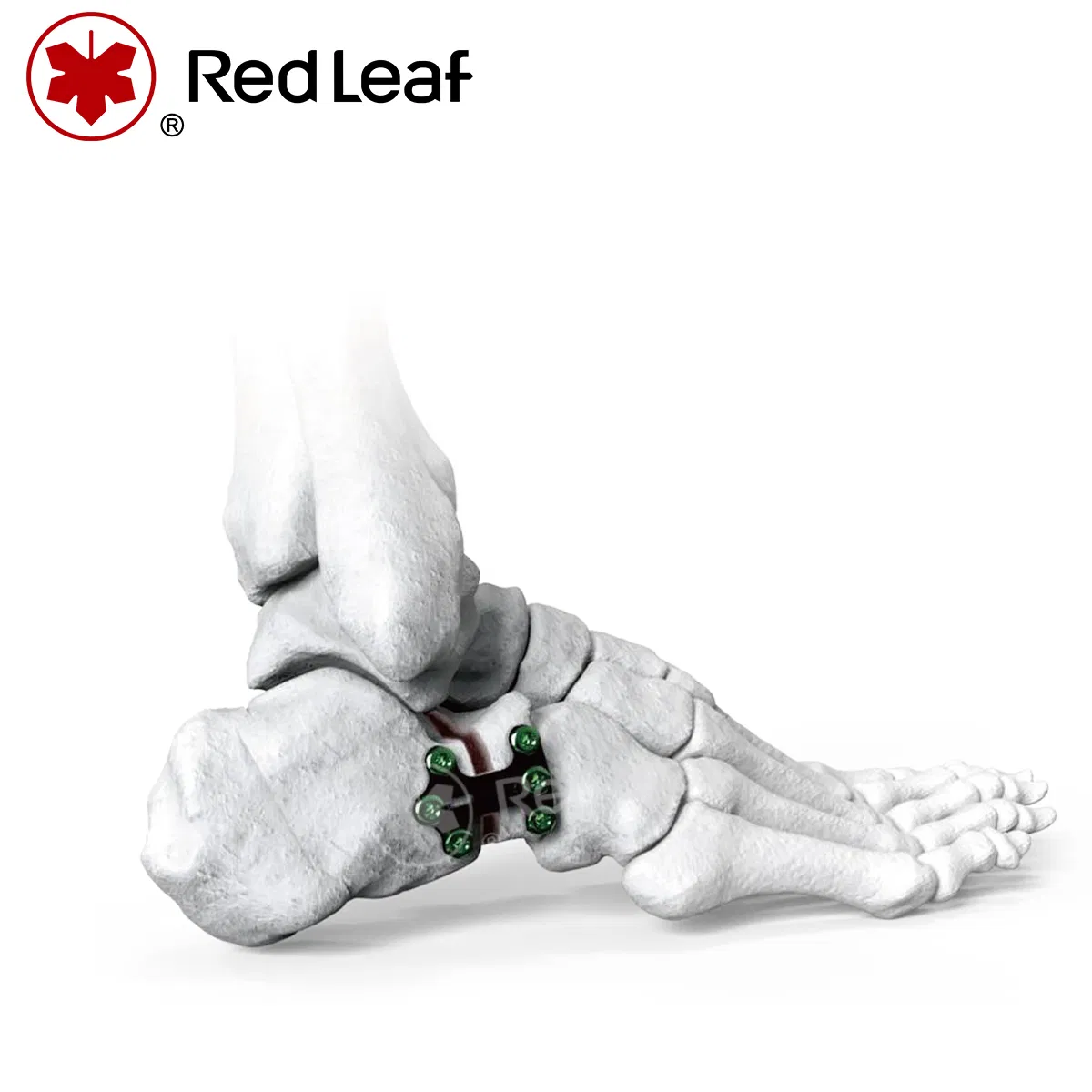

  • Suitable for flatfoot and valgus deformities
  • Transverse osteotomy of calcaneal neck
  • The distance between the osteotomy surface and the calcaneocuboid joint surface is 10-15mm

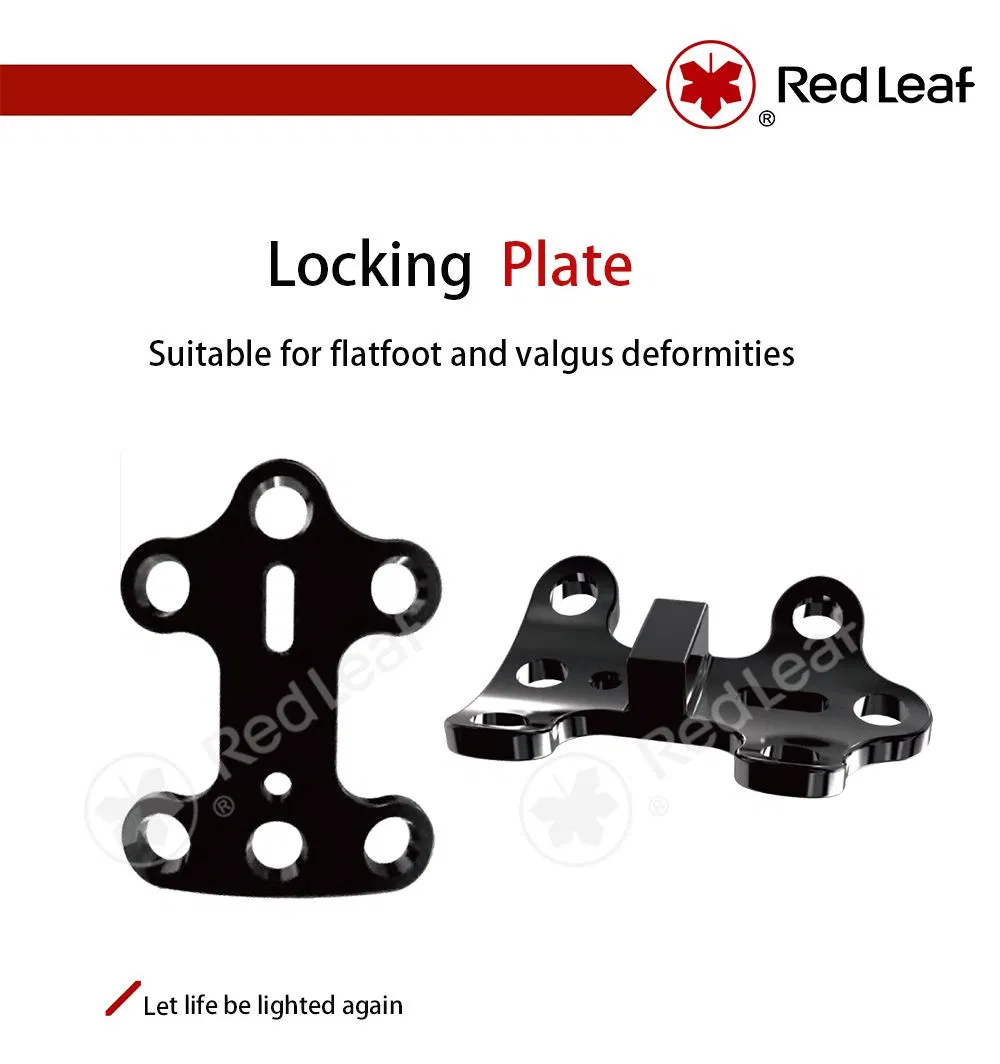

Design Concept Detail
Key Points
  • Transverse osteotomy of the calcaneal neck, with the osteotomy surface 10-15mm away from the calcaneocuboid joint surface.
  • After cutting the inner cortex with a swing saw, slow down the cutting speed to avoid damaging the inner soft tissue.
  • Evenly spread, with parallel openings, considering bone ingrowth and preventing bone non-union.
Screw Information
  • Matching screw: 3.5 self tapping locking screw
  • Length: 6-40mm, one specification per 2mm
  • Kirschner wire: 1.9mm
  • Material: TC4 titanium alloy
📊 Product Parameters
Specifications Length (mm) Width (mm) Thickness (mm) Step Width Cushion Block Height
Big 36.0 23.0 2.0 6/8/10 6/8/10
Middle 30.0 23.0 2.0 4/6/8 4/6/8
Small 26.0 23.0 2.0 2/4/6 2/4/6
Product Diagram 1 Product Diagram 2
Application 1 Application 2 Application 3
❓ FAQ
What are the primary clinical indications for this locking plate?
This orthopedic plate is specifically designed for the correction of flatfoot and valgus deformities through transverse osteotomy of the calcaneal neck.
What material is used in the manufacturing of the Evans locking plate?
The plate is manufactured using high-quality TC4 titanium alloy, ensuring biocompatibility and necessary structural strength for fracture fixation.
What are the available size specifications?
It is available in three main specifications: Big (36.0mm), Middle (30.0mm), and Small (26.0mm), with varying step widths and cushion block heights to suit different patient needs.
What type of screws should be used with this system?
The system is designed to match 3.5mm self-tapping locking screws, with lengths ranging from 6mm to 40mm.
What is the recommended surgical positioning for the osteotomy?
The osteotomy surface should ideally be positioned 10-15mm away from the calcaneocuboid joint surface for optimal results.
What quality certifications do these products carry?
The products are manufactured under rigorous standards and carry certifications such as CE, FDA, ISO9001, ISO13485, and EN1865.
