Customization: Available
Type: Power Drill
Kind: Orthopedics
Send Inquiry

Product Description

📋 Basic Specification
Model NO.ND-3511
CertificationCE, ISO13485
Operating PrincipleTotal Hip Replacement
Product NameSurgical Power Drill
Motor TypeBrushless Motor
Warranty2 Years
Sterilizing TimeAbout 20 Mins
Working Voltage14.4V
PackageAluminum Box
HS Code9018909000
🩺 Product Overview

Medical surgical instruments autoclavable rechargeable orthopedic electric drill tools for Total hip replacement

These medical instruments are broadly applied in traumatic surgery, joint surgery, orthopedic surgery, and neurosurgery operations. Designed for K wires, intermediary interlocking nail surgery, or arthroscopic surgery. The whole unit is autoclavable. The imported motor ensures low noise, high speed, and long service life. The system can adopt various flexible reamers and chucks easily during the surgical process.

📊 Technical Data
Working Voltage14.4V
Output Power130W
Unit rise in Temperature≤ 25ºC
Input VoltageAC 220V, 50Hz
Speed300r/min
Non-loaded noise63dB(A)
Torque33000gcm
Charging time3 hours
✨ Product Technical Merits
  • Specialized for joint operations.
  • Low speed with great torque; compatible with various acetabulum burnishing and medullary cavity expanding tools.
  • Main unit can be sterilized by high temperature and high pressure up to 135ºC.
  • Excellent quality, portable, low noise, and variable speed control.
  • Carbonless motor for increased power and easy power selection during operation.
  • Scientific balance technics reduce vibration and enhance handpiece control for comfortable operation.
  • High concentricity ensures precision when polishing the acetabulum in HIP operations.
🖼️ Product Display

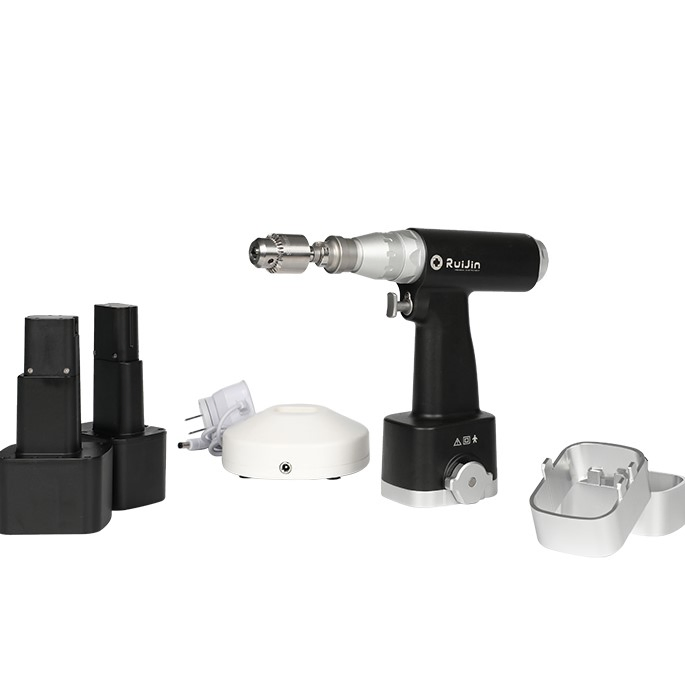

Standard Configuration:

  • One handpiece
  • One charger
  • Two batteries
  • One sterilizing channel
  • One drill chuck
  • One aluminum alloy box

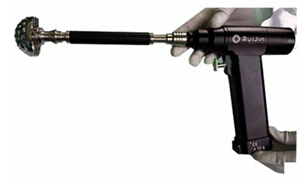

Hip joint drill with various adaptors (Stryker, AO, Hudson, Synthes, etc.)

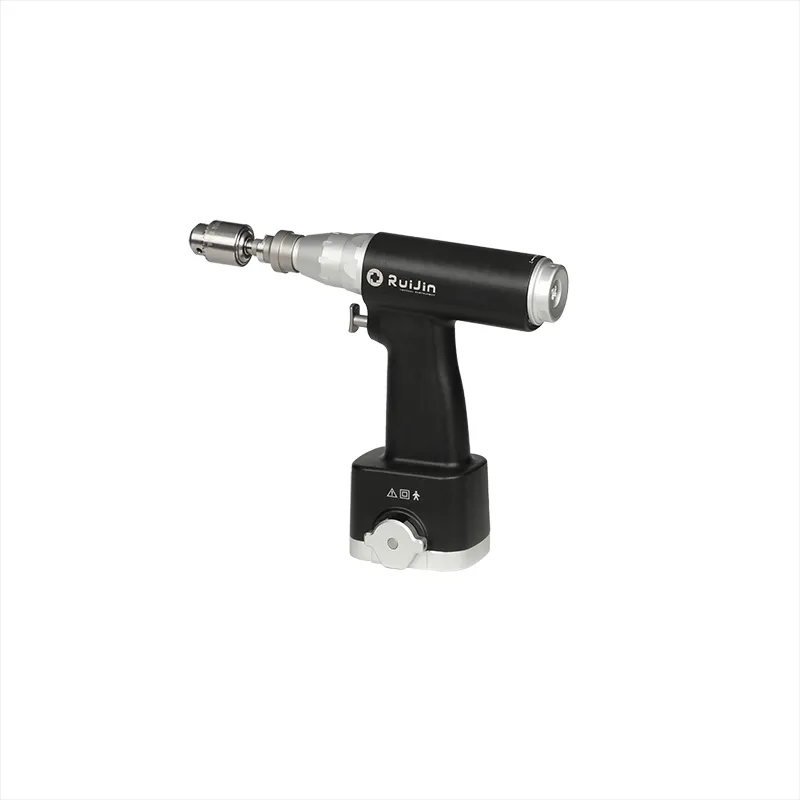

Surgical Drill Handpiece

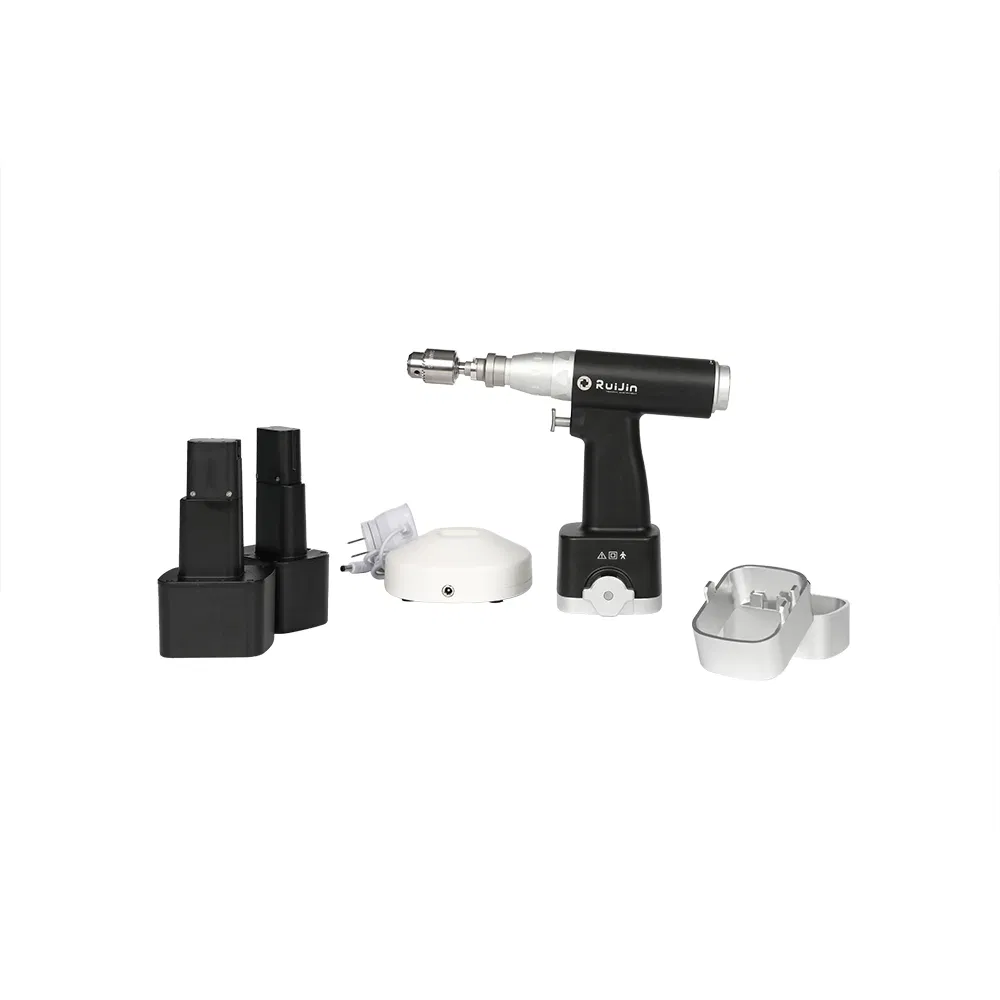

Rechargeable Batteries

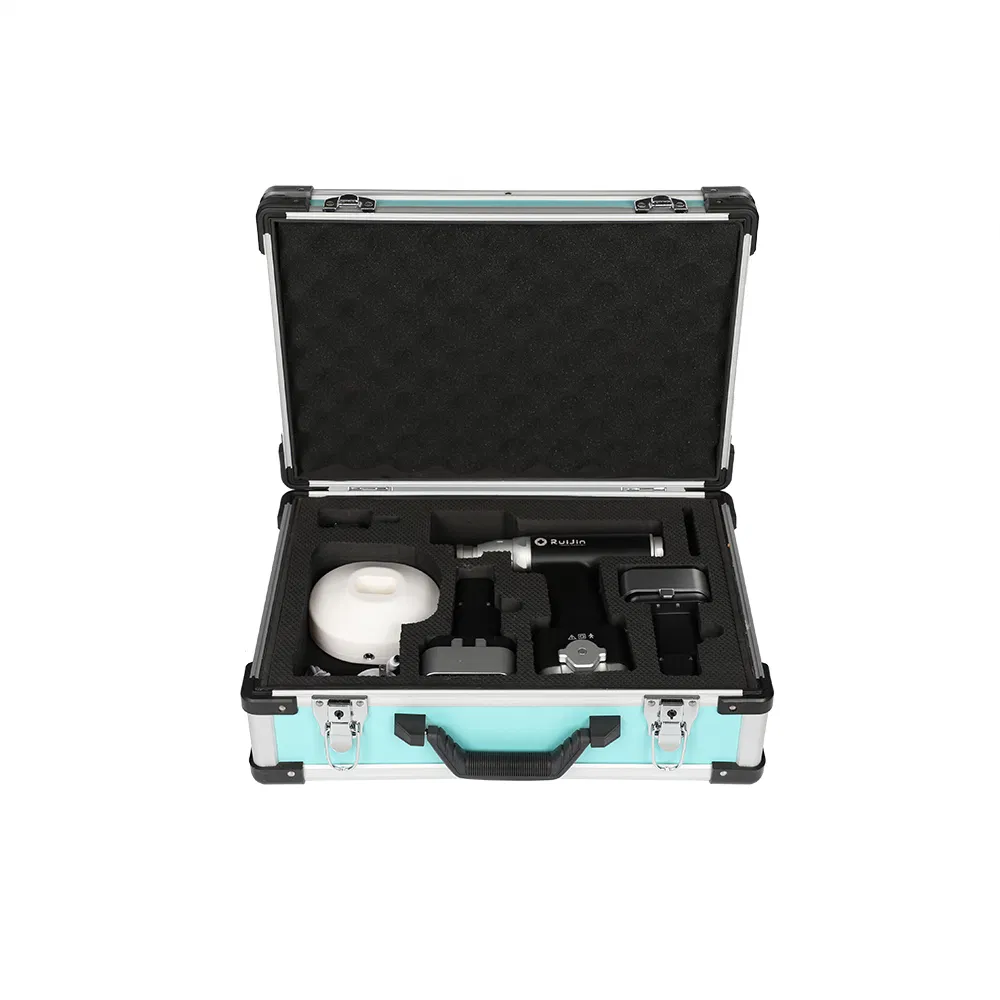

Aluminum Protective Case

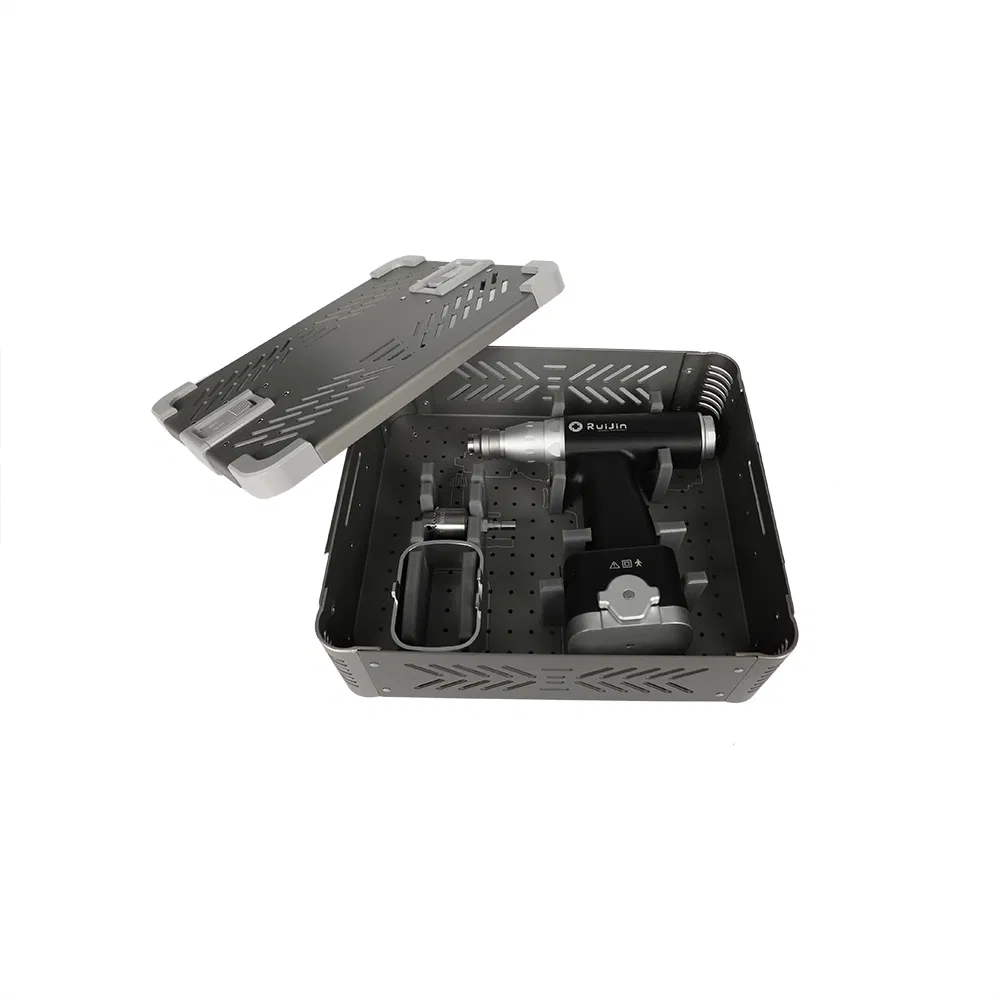

Specialized Sterilization Tray (Optional)
Sterilization Tray
📜 Certificates & Quality
Quality Certificates
🏭 Production & Process

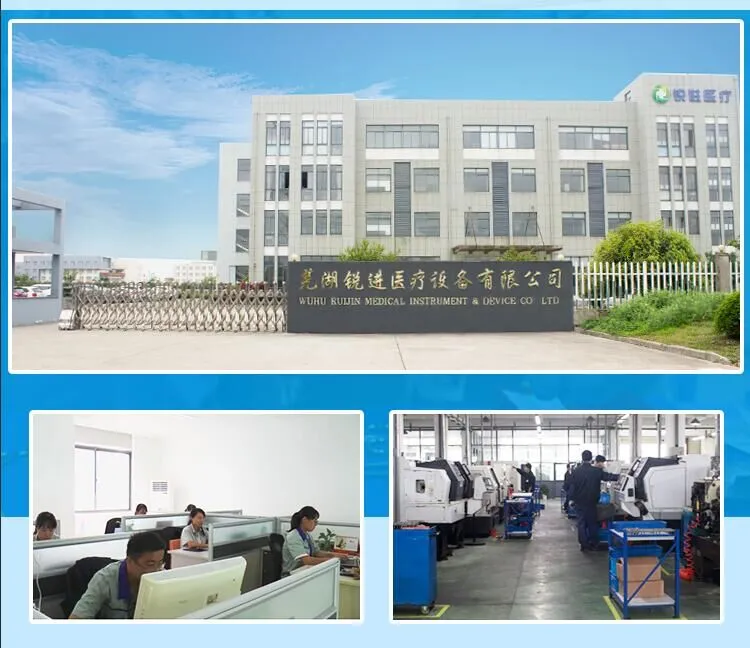

Manufacturing Facility

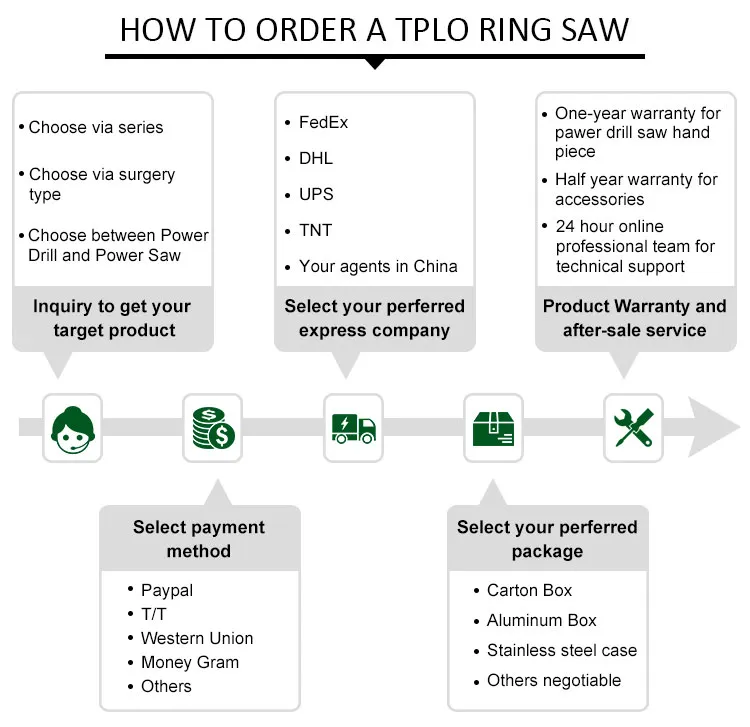

Ordering Process
⚠️ Attention & Notes
1The device is forbidden to be demolished by non-professionals.
2Products are compatible with electricity sources 110V/60Hz - 220V/50Hz.
3The battery must be removed from the handpiece when not in use to prevent automatic discharge.
4The battery cannot be disinfected. Ensure the battery compartment is dry after sterilization.
5The sterilization temperature must be lower than 135°C to avoid motor damage.
❓ Frequently Asked Questions
What is the main surgical application for the ND-3511?
The ND-3511 is specifically designed for Total Hip Replacement and other orthopedic procedures requiring high torque and low speed for acetabulum burnishing.
Can the surgical drill be sterilized?
Yes, the main unit is fully autoclavable and can be sterilized at temperatures up to 135°C. However, the battery must be removed before sterilization.
How many batteries are included in a standard set?
Each standard set includes two high-capacity batteries to ensure continuous operation during surgery.
Is this drill compatible with different brand adaptors?
Yes, the hip joint drill can be equipped with various optional adaptors, including Stryker, AO, Hudson, and Synthes.
What is the warranty period for this medical drill?
The product comes with a 2-year warranty, reflecting its professional manufacture and high-quality brushless motor design.
What are the charging requirements for the device?
The charger supports input voltages from 100V to 240V, and a full charge typically takes about 3 hours.
