Railway Rail Cast Iron Shoulder Used on Concrete Sleeper

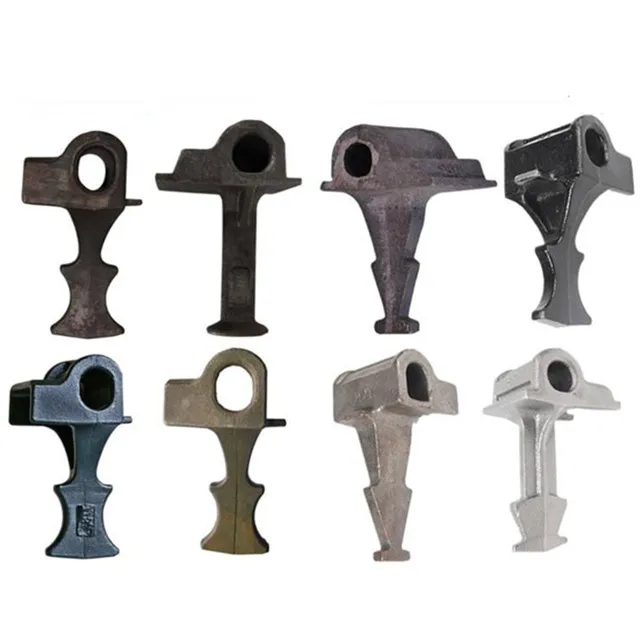

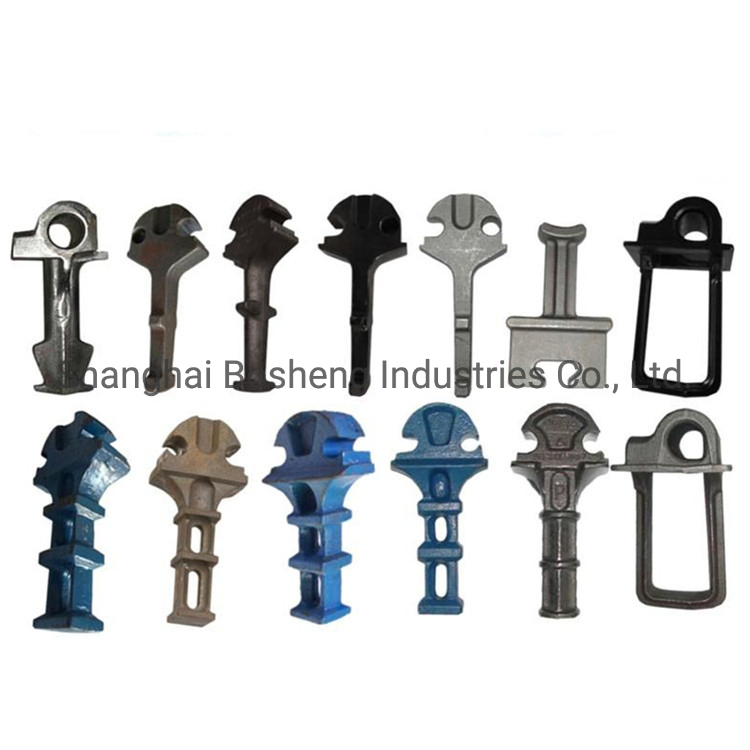

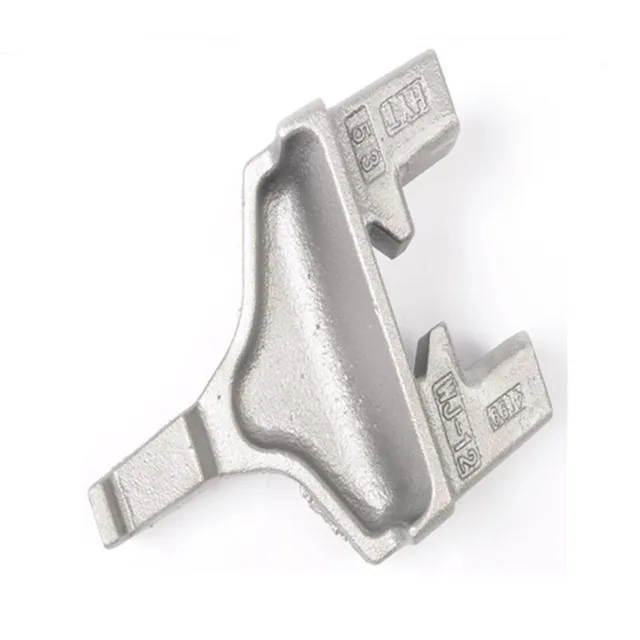

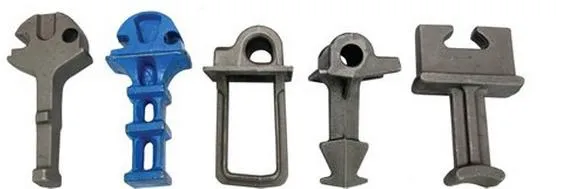

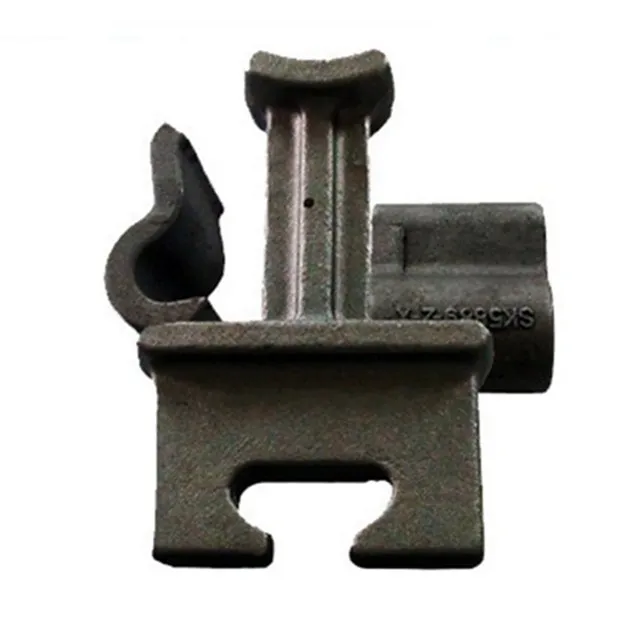

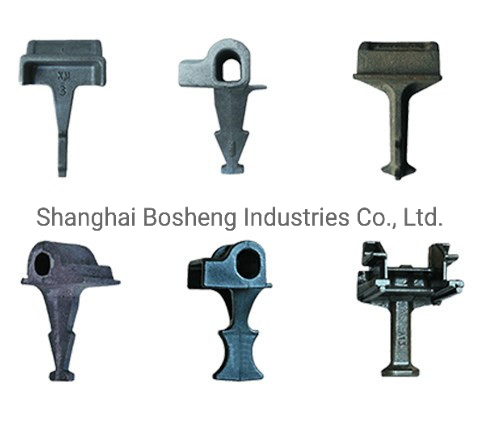

Rail shoulder, also called rail iron shoulder, is mainly used to be casted in the concrete ties to fixate elastic rail clips. According to the shape, it can be classified into Single Stem Rail Iron Shoulder and Twin Stems Rail Iron Shoulder. Besides, according to the manufacturing ways, rail shoulder can be divided into 3 types: casting rail shoulder, weld-on rail shoulder and hot forging rail shoulder.

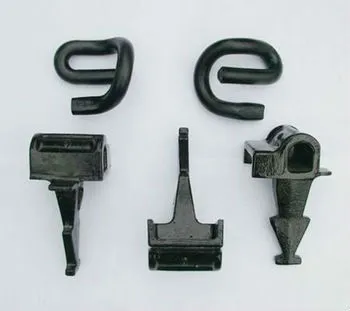

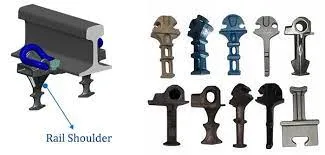

The rail shoulder is embedded in concrete at the time of casting, it's used to grips the clip effectively and provides lateral support to rail. The Rail shoulder is semi-embedded part cast in the concrete rail ties to fix the elastic rail clip to the base plate.

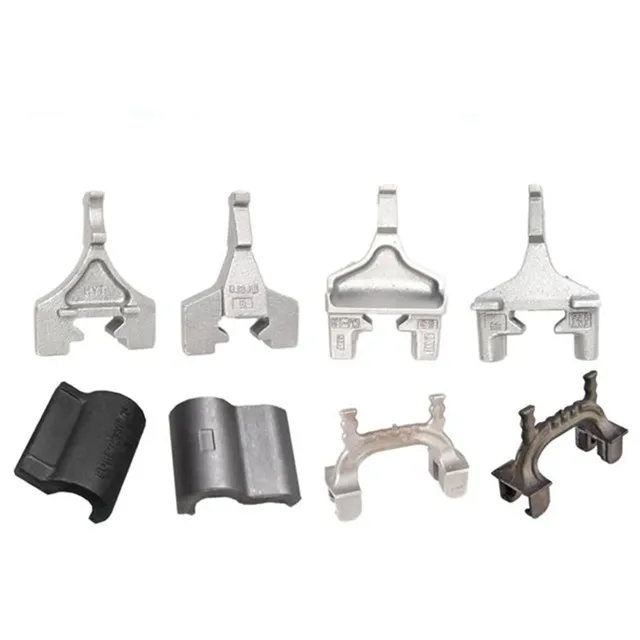

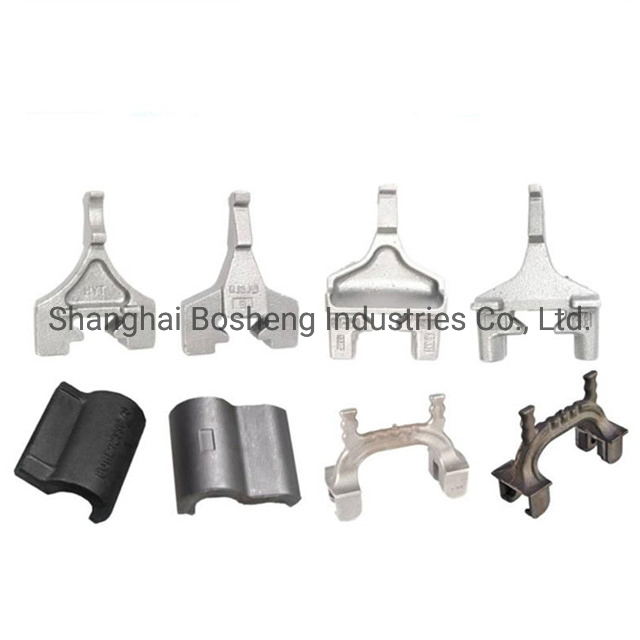

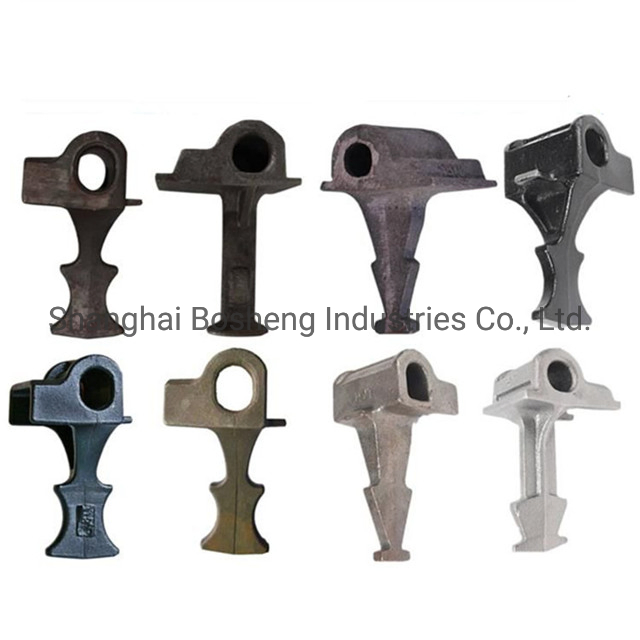

Common types of rail shoulders include Cast-in Shoulder and Weld-on Shoulder, both of which are used for the fixing of elastic rail clips. One is Single Stem Iron Shoulder used in pre-stressed concrete ties and the other is Twin Stem Iron Shoulder used in Bi-Block or Twin Block concrete ties.

Our production processes are in accordance with the requirements of ISO quality management system. From supplier quality control to finished products, we follow strict standard procedures:

• Before producing Rail Shoulder, we check and test the raw materials, requiring production batch numbers, chemical composition, and mechanical properties.
• Inspectors perform sample sampling and batch testing after manufacturing, providing raw material certificates to control the process.
• Physical and chemical testing is conducted based on specific requirements. Materials are only accepted if they meet rigorous standards.
• We organize quality control coordination meetings and provide technical advice for semi-finished products and external suppliers to ensure qualified delivery.
