Basic Info.
Model NO.
GB NF ISO JIS DIN UIC AREMA Rail SHOULDER
Type
Shoulder
Transport Package
Cartons, Woven-Bags or Gunny-Bags in Wooden Cases
Origin
China
HS Code
8602900000
Production Capacity
20000PCS/Day
Product Description

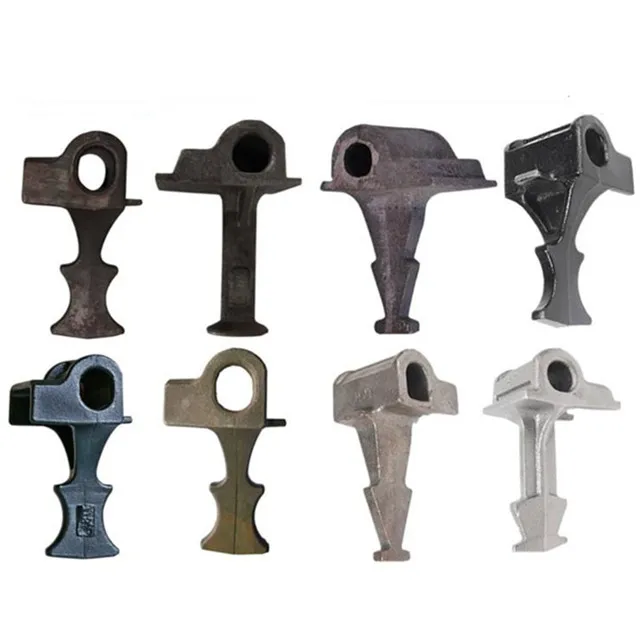

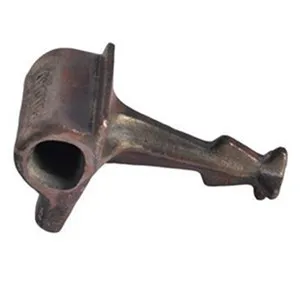

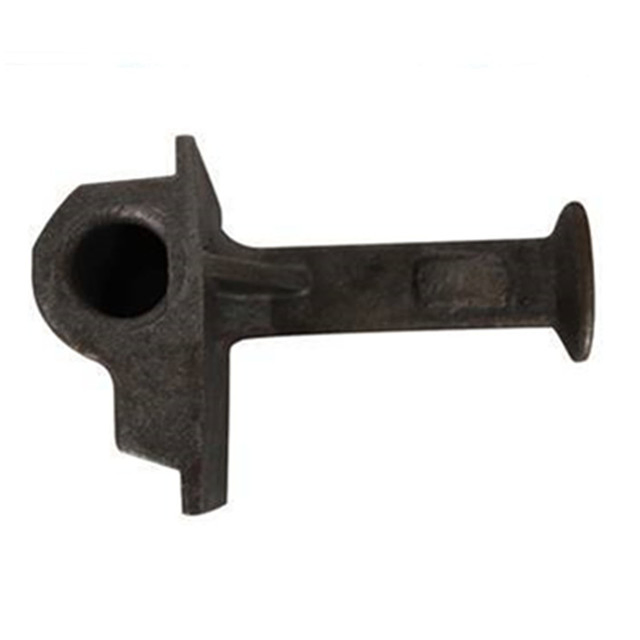

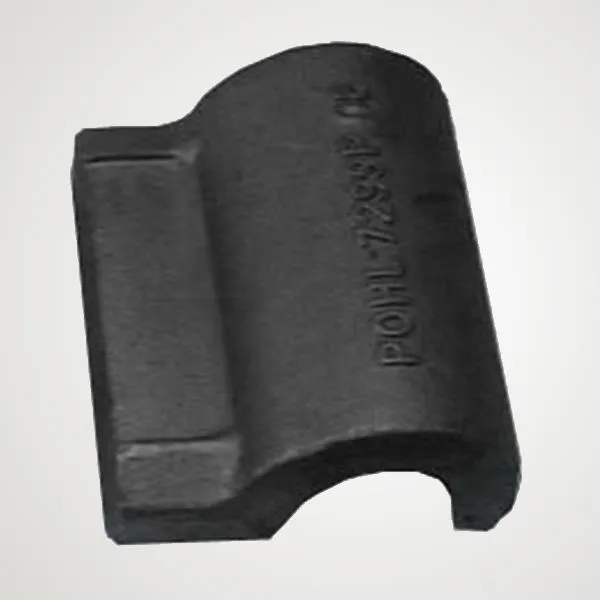

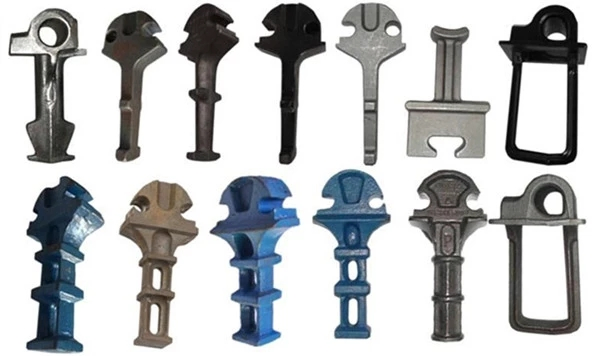

Rail shoulder is cast in the concrete rail ties to fix the elastic rail clips. There are two types of rail shoulders available, the cast-in shoulder and the weld-on shoulder, both of which are used for the fixing of elastic rail clips. The casting shoulders as the embedded part of the railway fastening system are pressed in concrete sleeper and work together with the E clip to fasten the rail.
| Specifications |
QT500-7 |
QT450-10 |
QT400-15 |
| Application |
UIC54 |
UIC60 |
115RE, 50kg rail, 60kg rail, BS80lbs, BS100lbs, etc. |
| Standard |
GB 1348-88 |
GB 1348-88 |
GB 1348-89 |
| Chemical Composition (%) |
C:3.60-3.80, Mn:0.2-0.5, Si:2.50-2.90, P:≤0.08, S:≤0.025 |
C:3.40-3.90, Mn:≤0.5, Si:2.70-3.00, P:≤0.07, S:≤0.03 |
C:3.50-3.60, Mn:≤0.5, Si:3.0-3.2, P:≤0.07, S:≤0.02 |
| Tensile Strength |
≥500 Mpa |
≥450 Mpa |
≥400 Mpa |
| Yield Strength |
≥320 Mpa |
≥310 Mpa |
≥250 Mpa |
| Elongation (%) |
≥7 |
≥10 |
≥15 |
| Hardness |
170~230HB |
160~210HB |
130~180HB |
| Metallographic Org. |
ferrite & pearlite |
graphite & ferrite & pearlite |
ferrite |
Core Strengths
⚙️
Advanced Technology & Equipment: Utilizing leading-edge manufacturing equipment and digital online management to ensure precision in every unit.

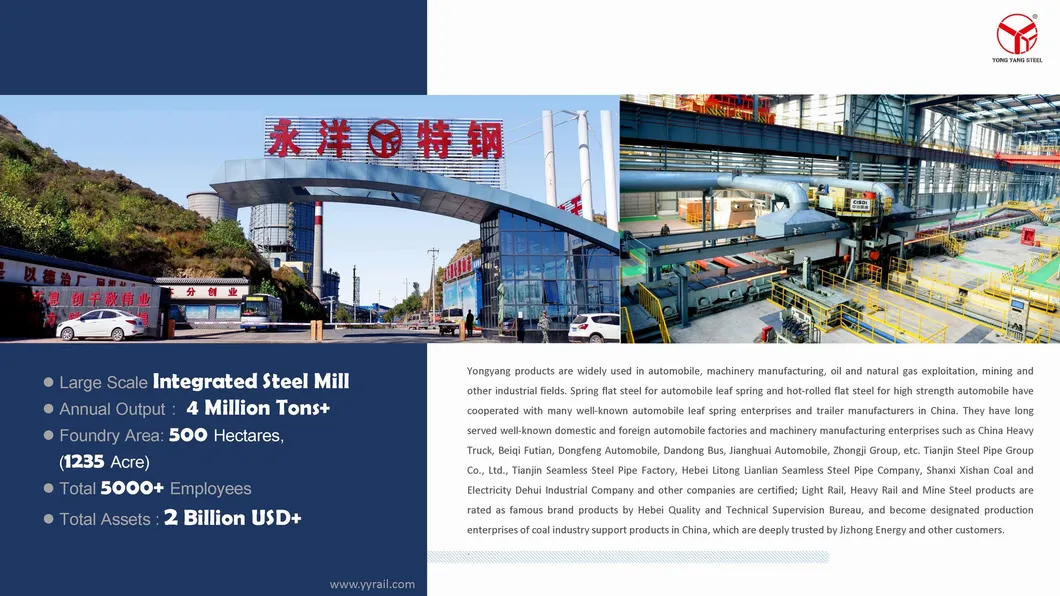

- Large Scale Production: Annual output exceeding 4 Million Tons with a foundry area of 500 Hectares.
- Quality Guaranteed: Fully automatic digital control large scale sawing and cutting machines used to avert tolerances.
- Inspection System: Online ultrasonic inspection of cracks and large scale straighten machines for 100% qualification rate.
- Compliance: Fully compliant with ISO 9001 and ISO 14001 standards for Quality and Environmental Management.
- Stock Availability: Daily stock of 200,000 units of various steel rail products in the warehouse.

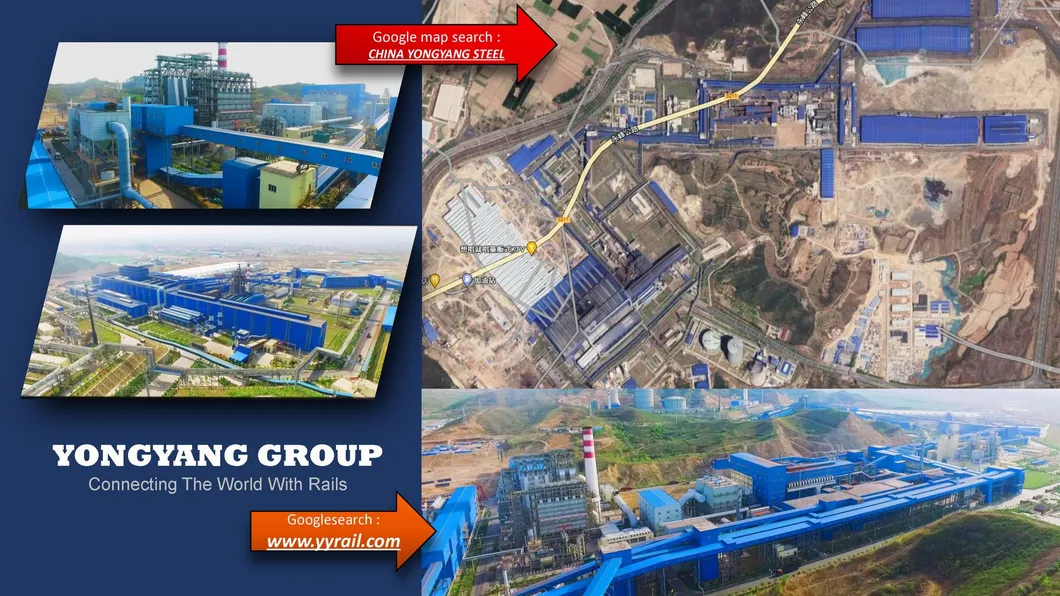

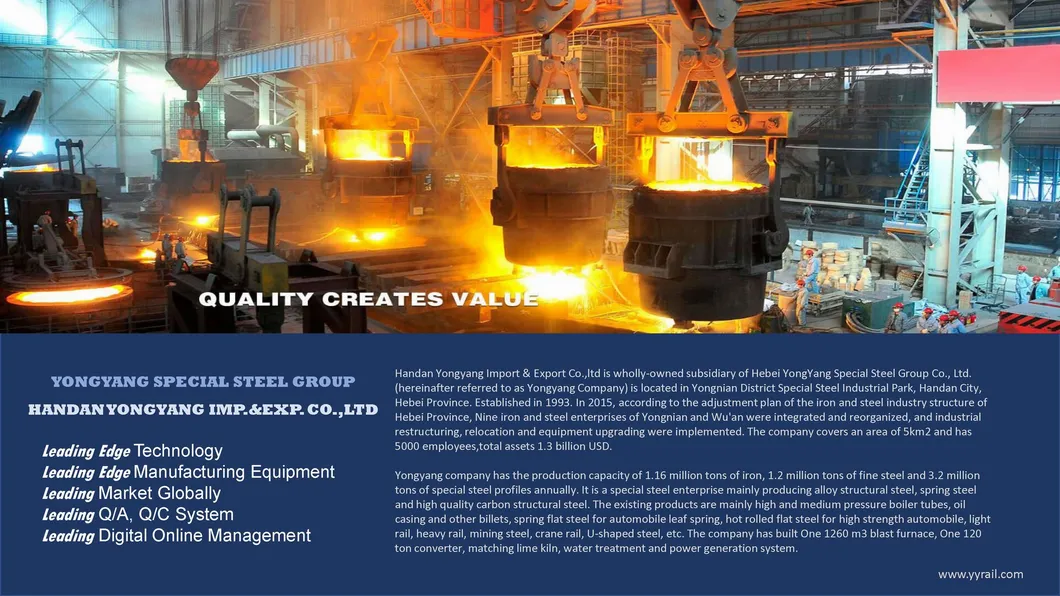

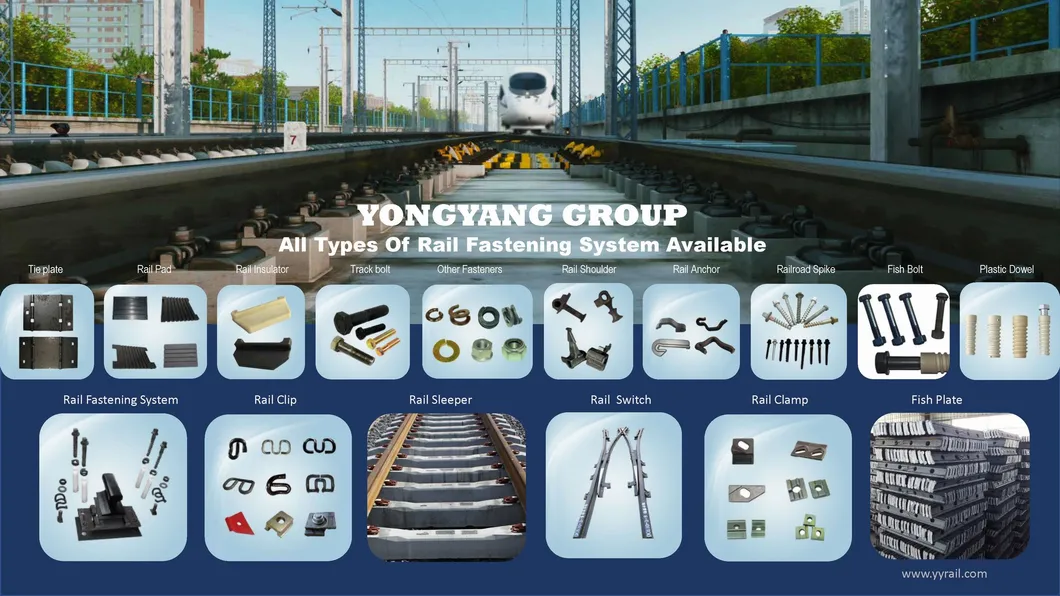

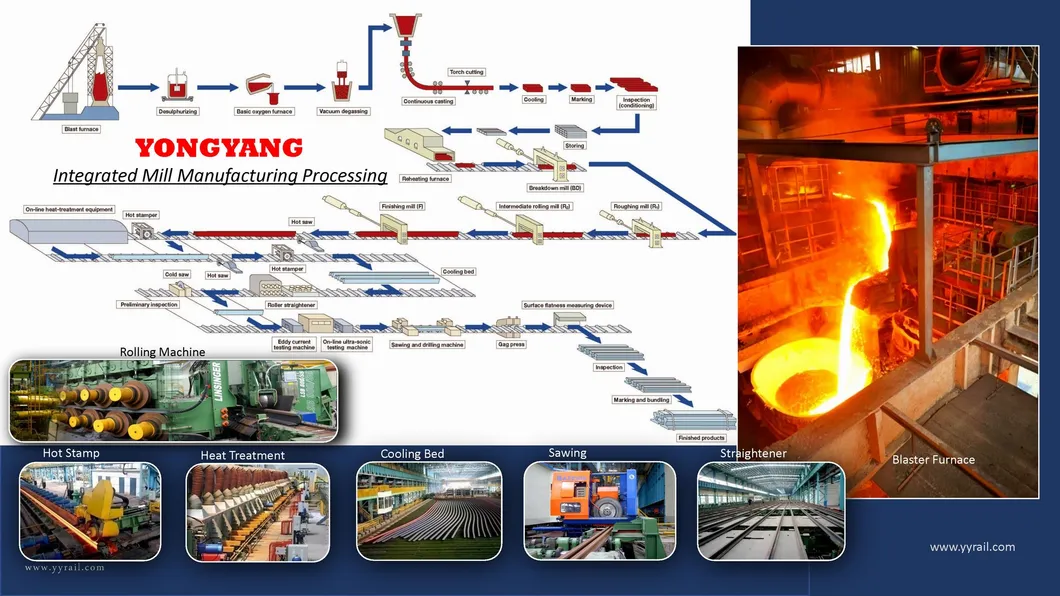

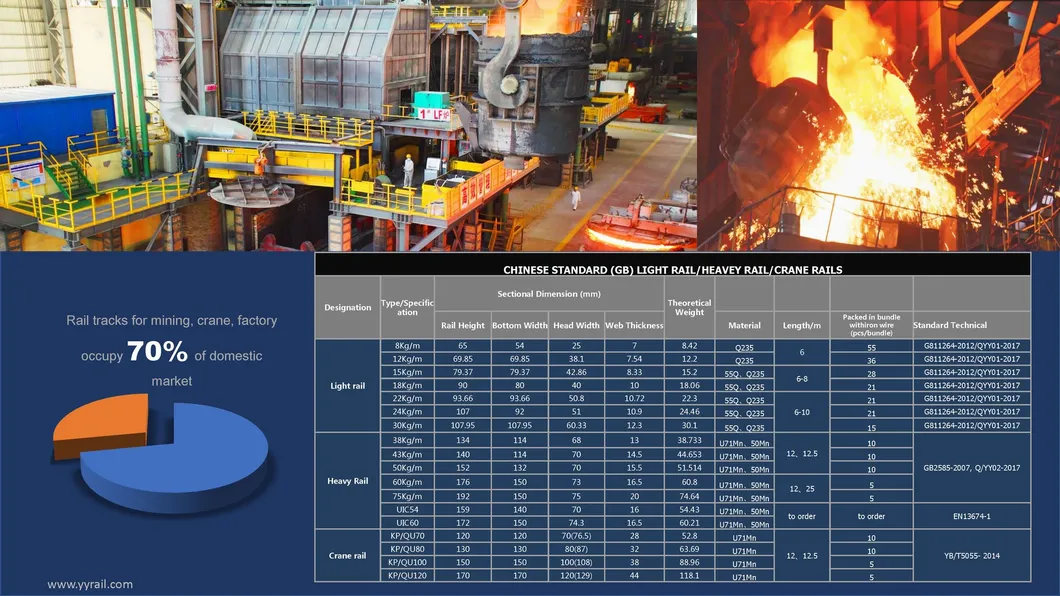

Factory & Production View
Frequently Asked Questions
1. What are the primary types of rail shoulders available?
There are two main types: the cast-in shoulder, which is embedded in concrete ties, and the weld-on shoulder. Both are designed to securely fix elastic rail clips.
2. Which international standards do your rail shoulders comply with?
Our products are manufactured according to various international standards including GB/T 1348, NF EN 1563, ISO1038, DIN 1693, JIS G5502, KS D 4302, and BS EN 1563.
3. What materials are used in the casting process?
We primarily use high-quality cast iron such as QT500-7, QT450-10, and QT400-15, ensuring excellent tensile strength and durability.
4. How do you ensure the precision of the rail track components?
We use fully automatic digital control large-scale sawing and cutting machines, combined with online ultrasonic crack inspection to ensure minimal tolerance and maximum safety.
5. Can I request product samples?
Yes, free samples are available upon request to verify the quality and specifications of our rail fastening products.
6. What is the daily production capacity for rail shoulders?
Our facility has a robust production capacity of approximately 20,000 pieces per day to meet large-scale global demands.
