Basic Information
Model NO.
External Fixation
Certification
CE, ISO13485
Material Type
Titanium Alloy & Stainless Steel
Production Capacity
500,000 Pieces/Year
Product Description

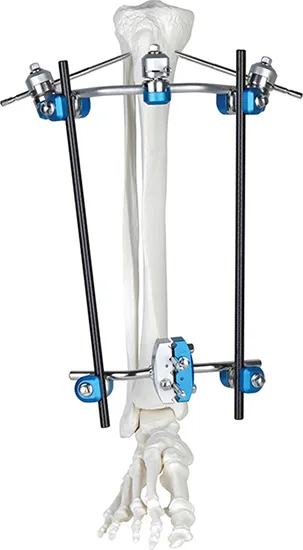

External Fixator -- Modular Fixation External Fixation System
Product Key Features
- Characterized by cutting-edge technology, ensuring ease of use and efficiency.
- Allows for the independent placement of bone screws in both proximal and distal fractures.
- Incorporates a snap-fit design, facilitating smoother operations and reducing time requirements.
- Enhances fracture visibility using high-quality medical aluminum carbon fiber.
- Provides exceptional stability and optimal elasticity.
- Ensures a compact and streamlined frame construction.
- Designed to address the complexity of fractures and soft tissue loss.
- Offers simplicity and effective functionality.

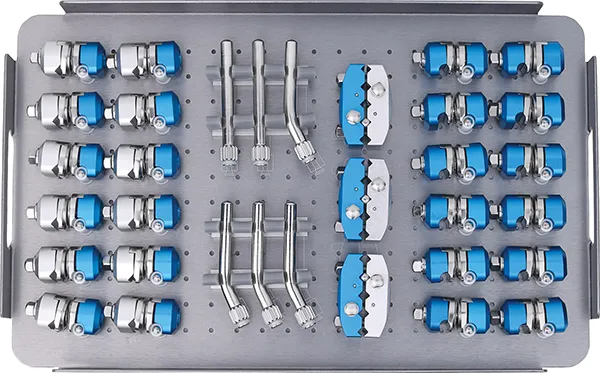

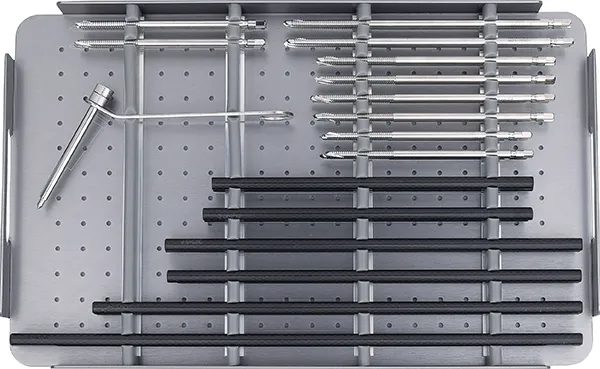

| Component Name |
Specification/Size |
Quantity |
| Pin To Rod Coupling | φ8/4-5 | 12 |
| Rod To Rod Coupling | φ8/8 | 12 |
| 5-Hole Pin Clamp | φ8/5 | 3 |
| Straight Post | φ8 | 2 |
| 30° Post | φ8 | 4 |
| Self Drilling/Self Tapping Bone Screws | φ5*180 / 150 / 130 / 120 | 4/8/4/4 |
| Guides | φ4/5 | 1 |
| Carbon Fibre Rod | φ8*350 / 300 / 250 / 200 | 2/2/4/4 |
| Semi-Circular Curved Connecting Rod | φ8*160 / 200 | 1/1 |

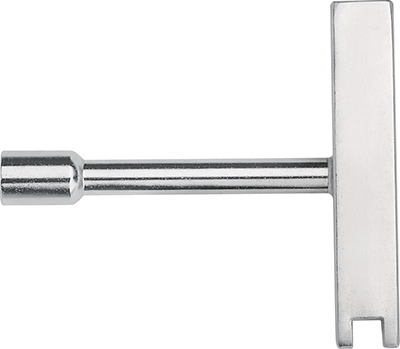

| T-Wrench | #7 | 1 |
| Stabilization/Reduction Wrench | #22 | 1 |
| Torque Wrench | #7 | - |

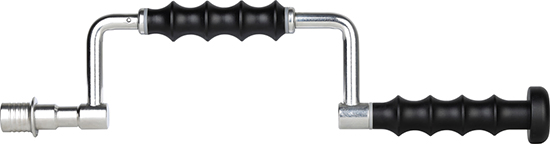

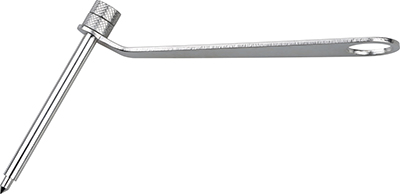

| Hand Drill / Screw Driver | φ5 | 1/1 |

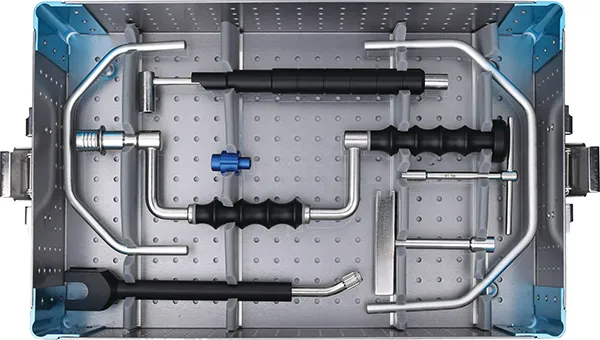

| Instrument Set | - | 1 |
Component Details

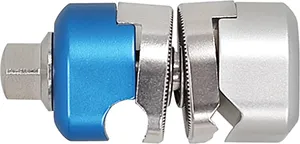

| Item | Anti Pin To Rod Coupling |
| Size | φ8/4-5 |
| Material | Stainless Steel, Aluminum |

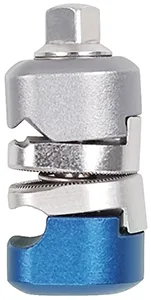

| Item | Pin To Rod Coupling |
| Size | φ8/4-5 |
| Material | Stainless Steel, Aluminum |

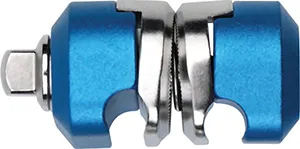

| Item | Rod To Rod Coupling |
| Size | φ8/8 |
| Material | Stainless Steel, Aluminum |

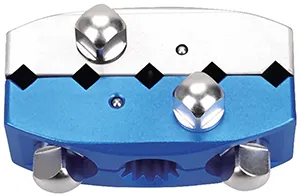

| Item | 5-Hole Pin Clamp |
| Size | φ8/5 |
| Material | Stainless Steel, Aluminum |
| Item | 10-Hole Pin Clamp |
| Size | φ8/5 |
| Material | Stainless Steel, Aluminum |
| Item | 90° Post |
| Size | φ8 |
| Material | Stainless Steel, Aluminum |
| Item | 30° Post |
| Size | φ8 |
| Material | Stainless Steel, Aluminum |

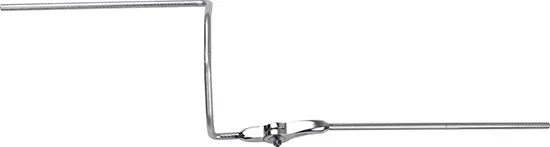

| Item | Knee Joint Mobilizer |
| Size | φ8 |
| Material | Stainless Steel |
Frequently Asked Questions
What materials are used in the External Fixation System?
The system utilizes high-quality Titanium Alloy and Stainless Steel for structural components, and medical-grade Carbon Fiber for rods to ensure optimal strength and radiolucency.
Is this modular fixation system reusable?
Yes, the system is designed to be reusable, providing a cost-effective solution for orthopedic bone fixation procedures.
What certifications does the product hold?
The External Fixator system is fully certified with CE and ISO13485 standards, ensuring it meets international medical safety and quality requirements.
How does the snap-fit design benefit the surgical process?
The snap-fit design facilitates smoother operations and significantly reduces the time required for frame assembly and adjustment during surgery.
Are the bone screws self-drilling?
Yes, the system includes self-drilling and self-tapping bone screws in various sizes (120mm to 180mm) to accommodate different anatomical needs.
Can fracture visibility be maintained during X-rays?
Absolutely. The use of aluminum carbon fiber rods enhances fracture visibility, allowing surgeons to monitor the healing process more effectively under imaging.
