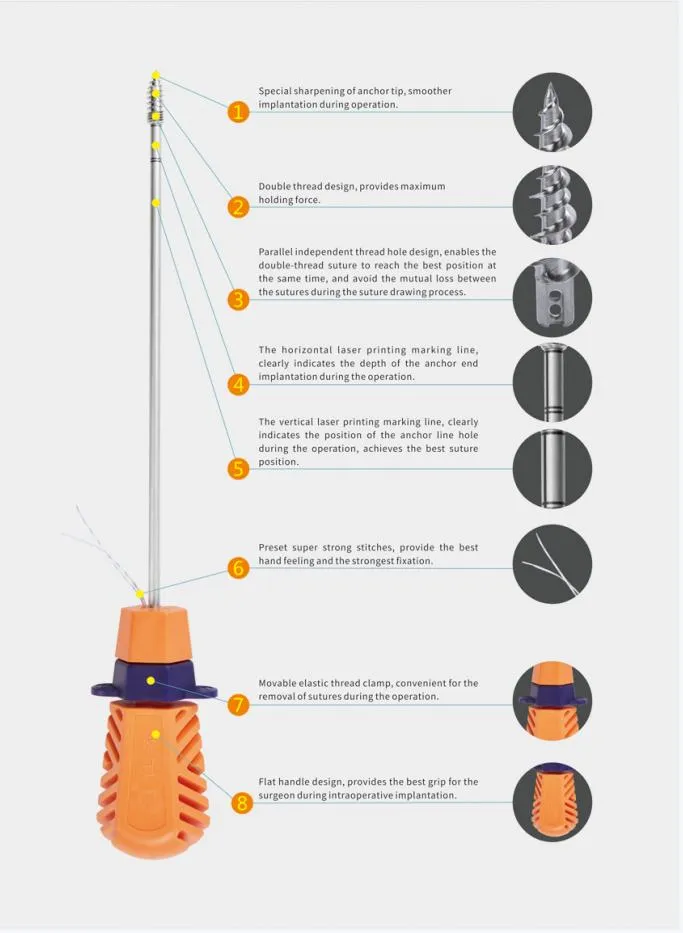

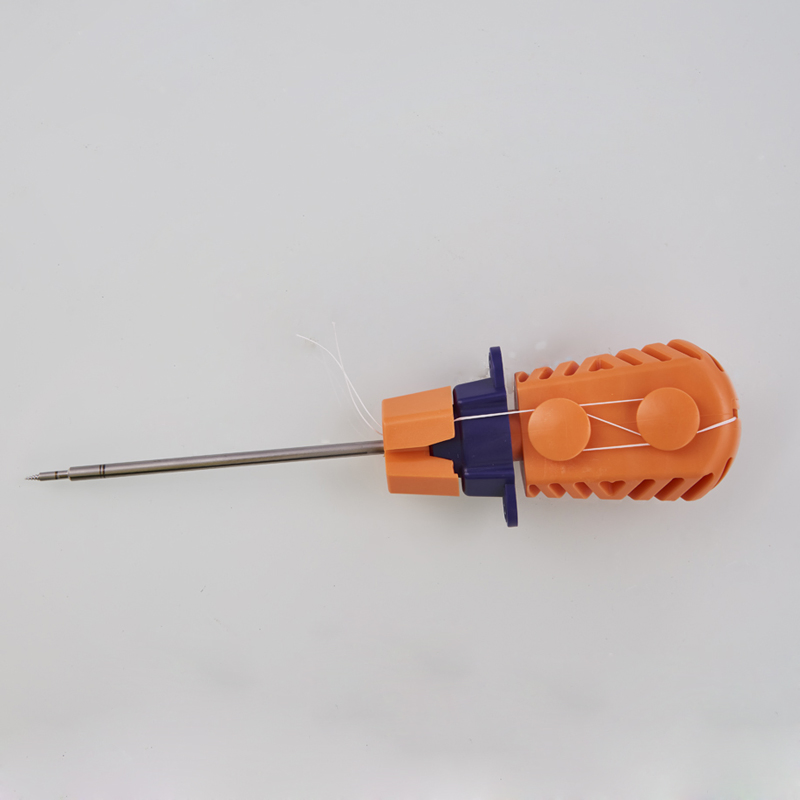

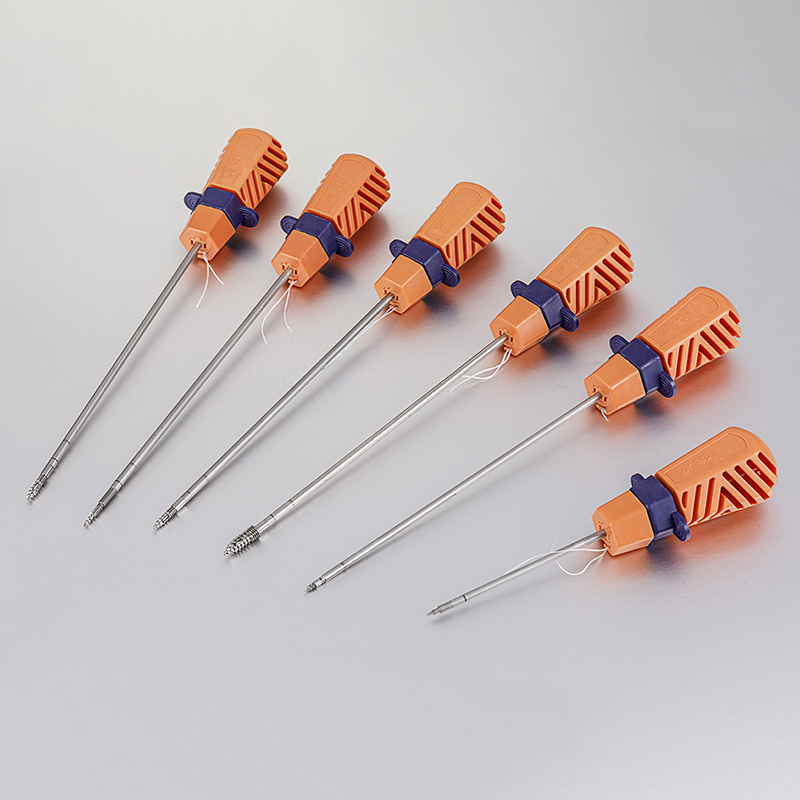

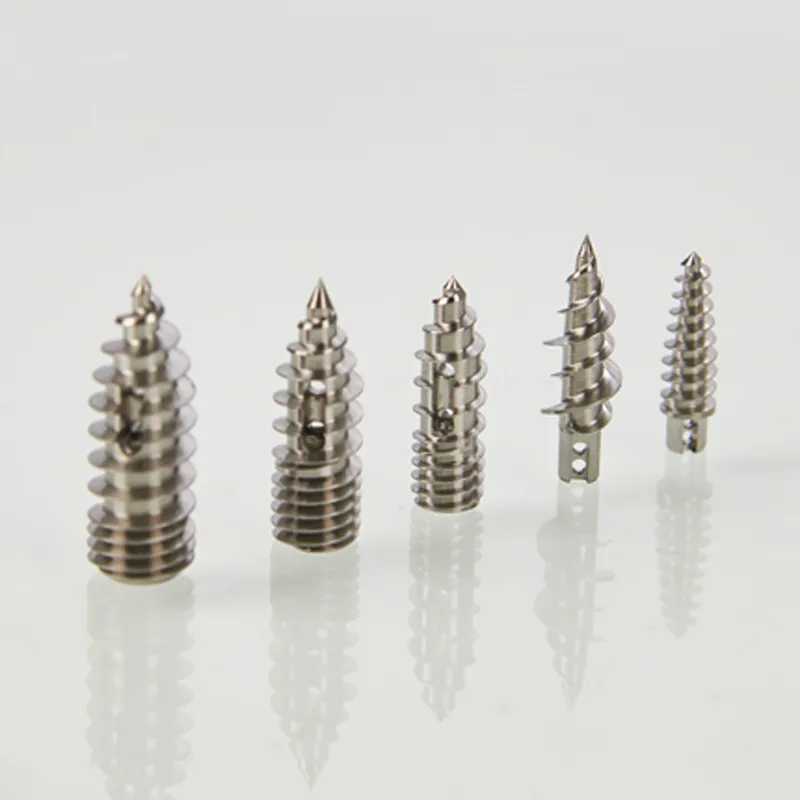

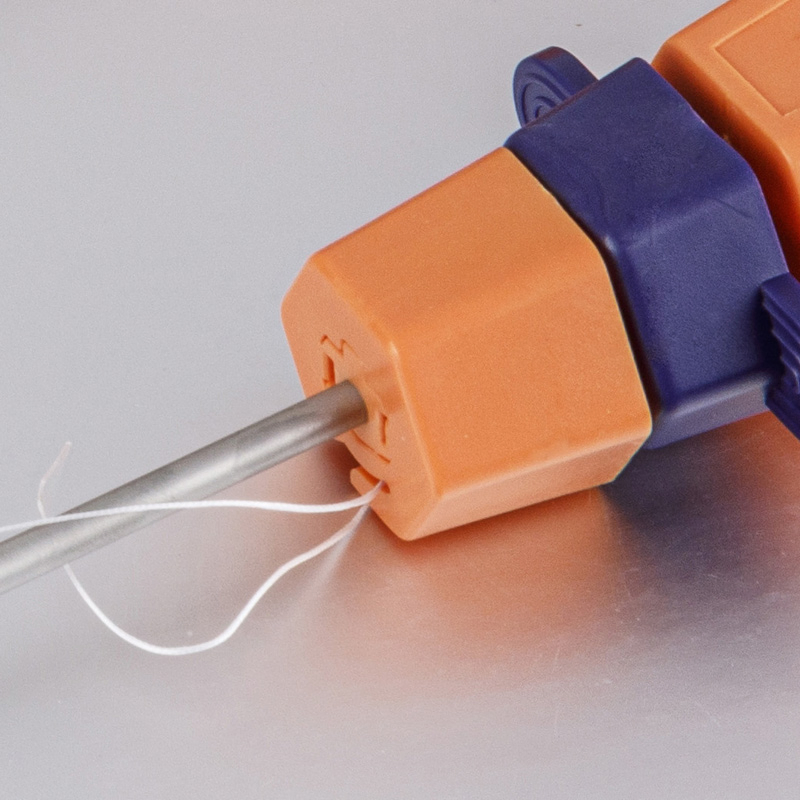

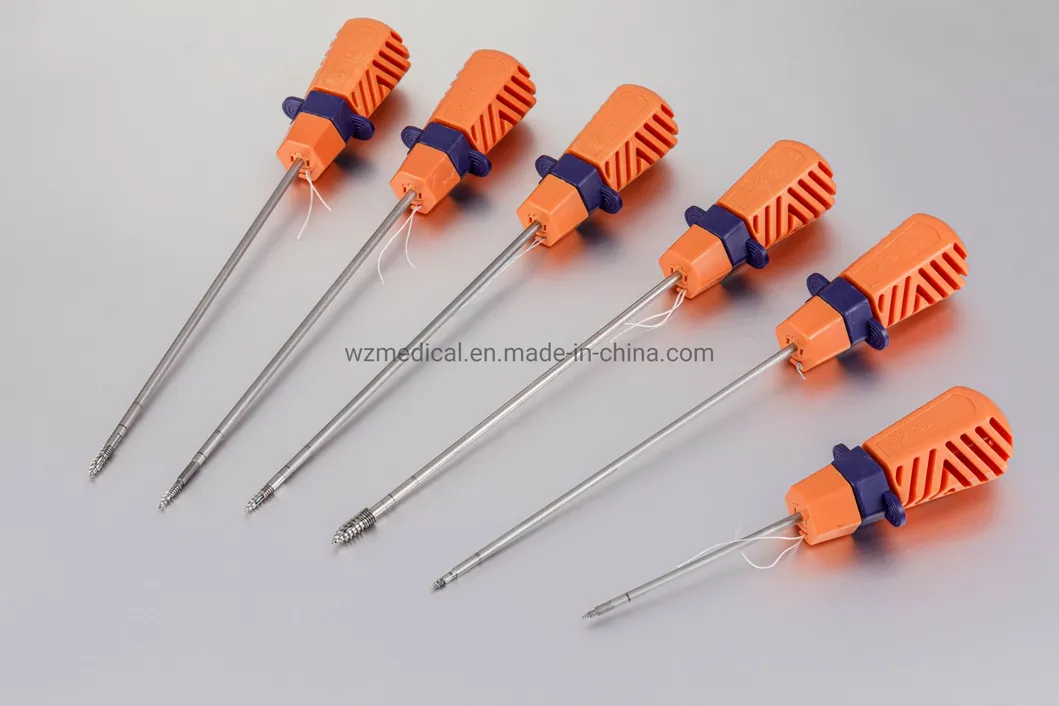

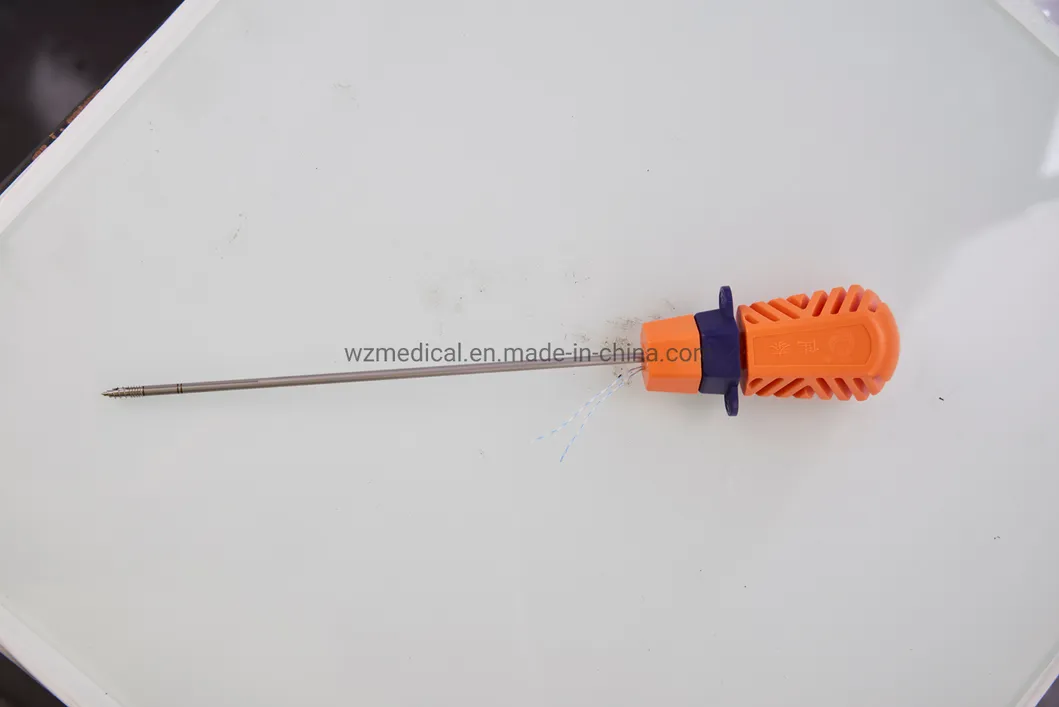

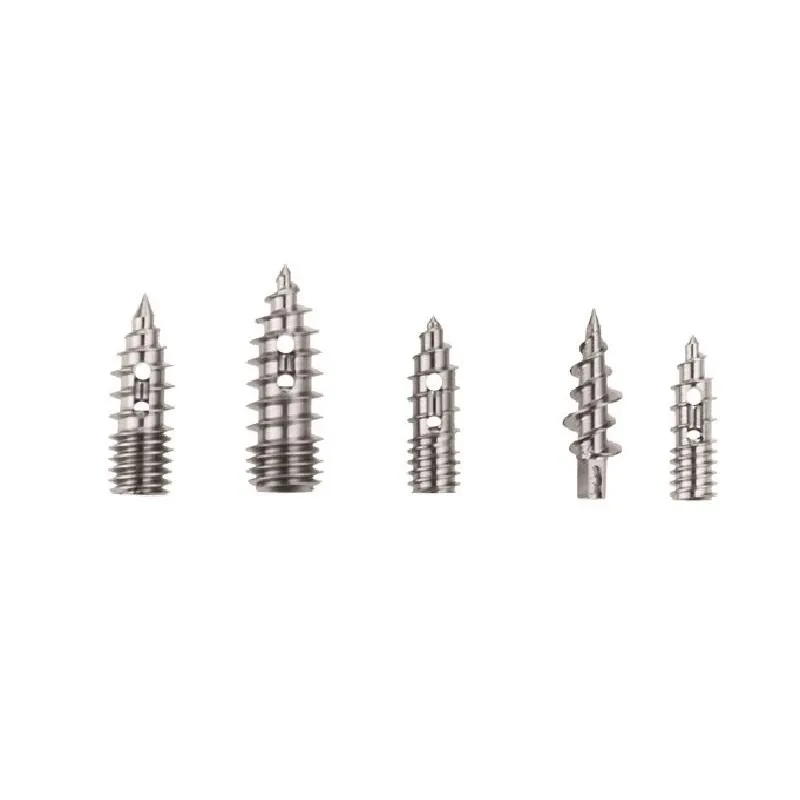

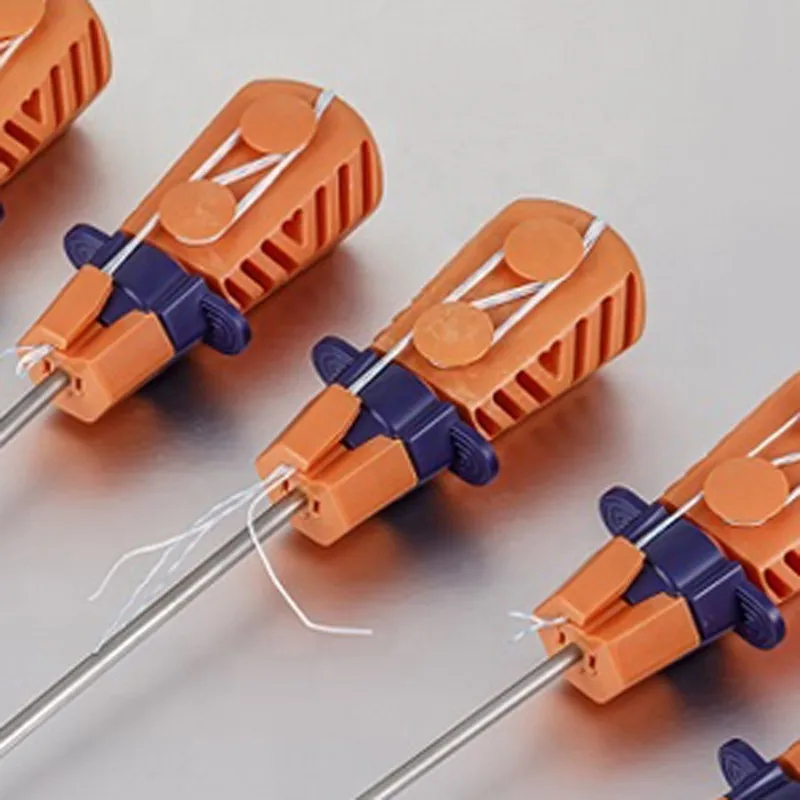

The Suture Anchor System consists of an anchor, nonabsorbable suture, and inserter. The anchor is made of high-quality Ti6Al4V alloy, which meets the requirements of ISO5832-3:2016. The suture is crafted from ultra-high molecular weight polyethylene (UHMWPE) material without coating, woven from several UHMWPE yarns conforming to ASTM F2848-17.
The blue suture is produced from white UHMWPE dyed with FDA-approved blue material (code 73.1015). The part of the inserter contacting the human body is made of stainless steel conforming to ASTM F899-12b, while the handle is designed for ergonomics using polycarbonate and ABS materials.
| Item | Value |
|---|---|
| Properties | Implant Materials & Artificial Organs |
| Model Number | WZ-MDT-S-01 |
| Instrument Classification | Class II |
| Material | Titanium Alloy |
| Color | Silver + Orange |
| Specification | Diameter 1.8x6mm |
| Certificate | CE / ISO |

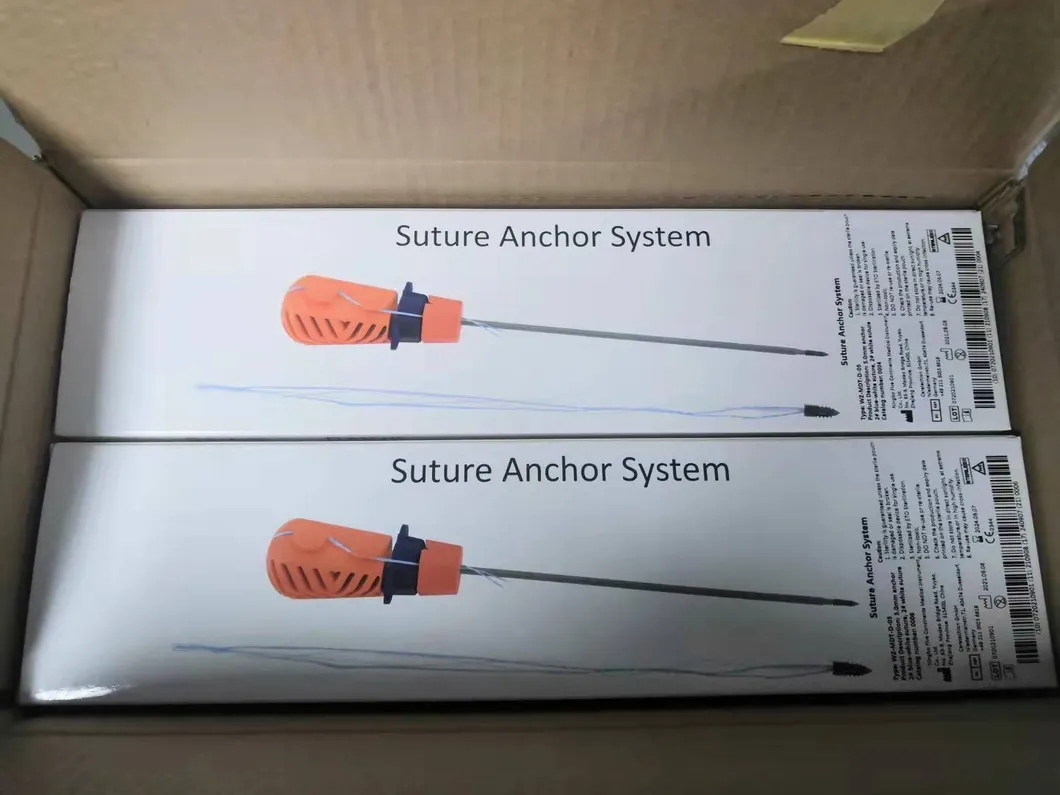

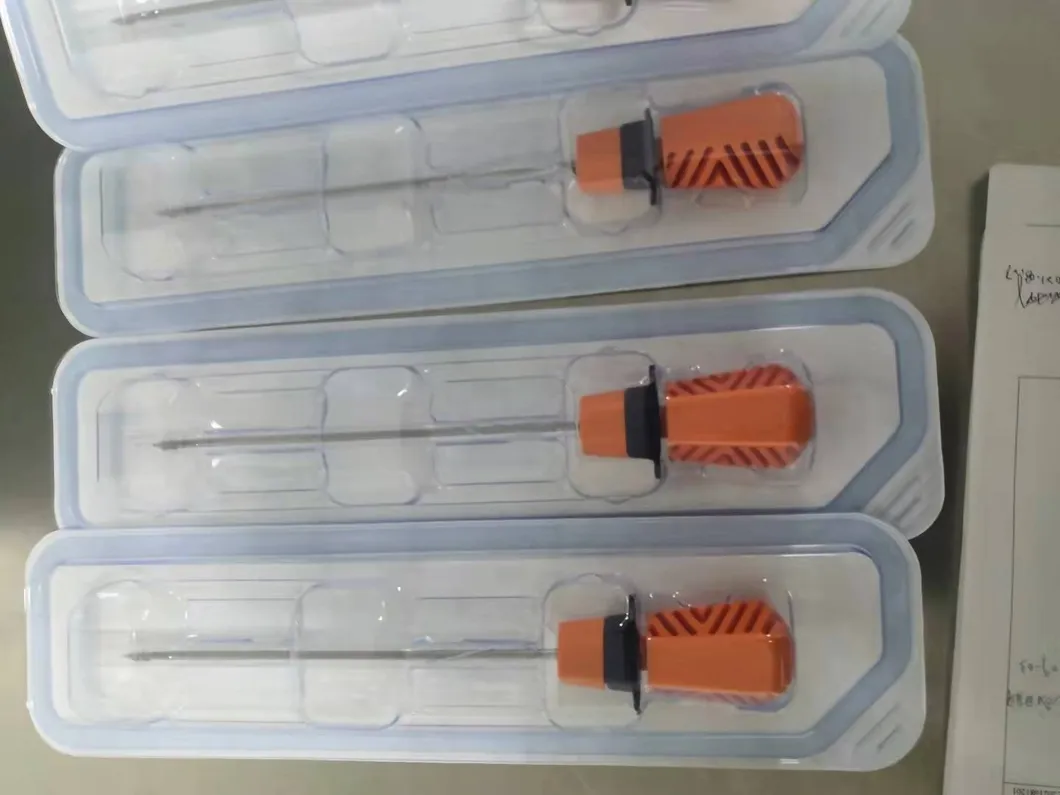

| Package | Sterile Packaging 1pc/package |

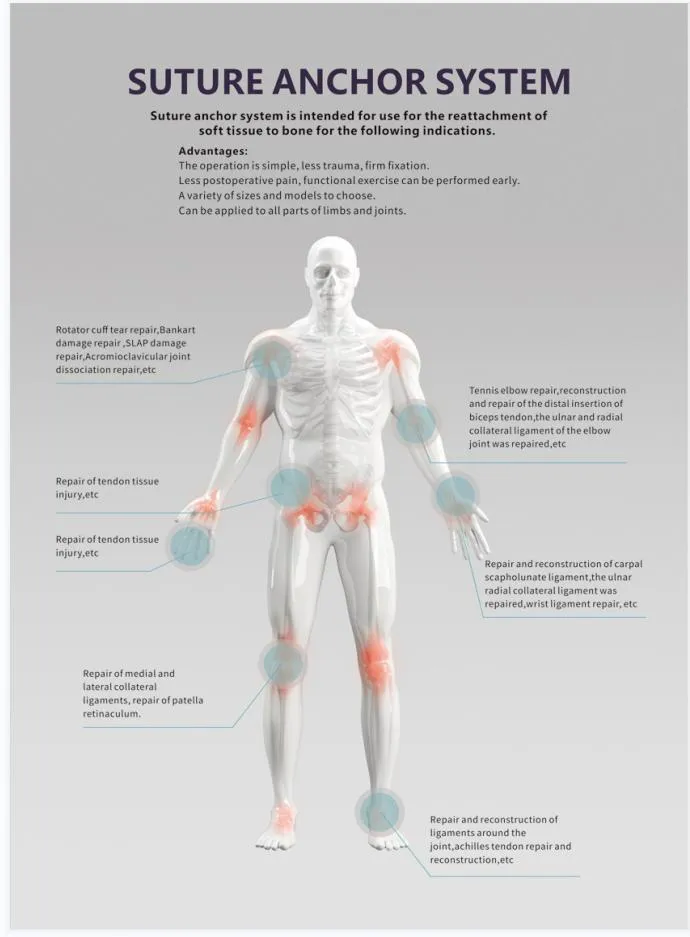

| Application | Implantology / Orthopedic Surgery |
