Voila Orthopedic Implants
1 / 5

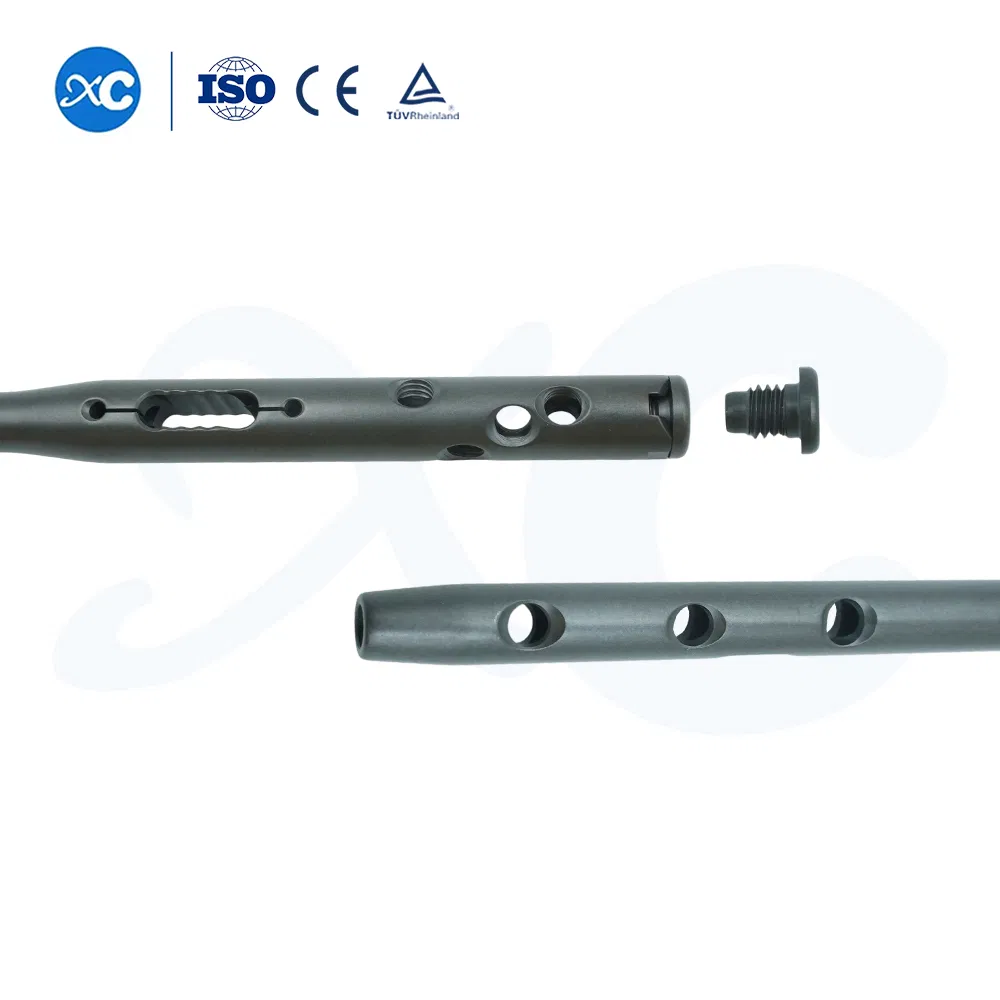

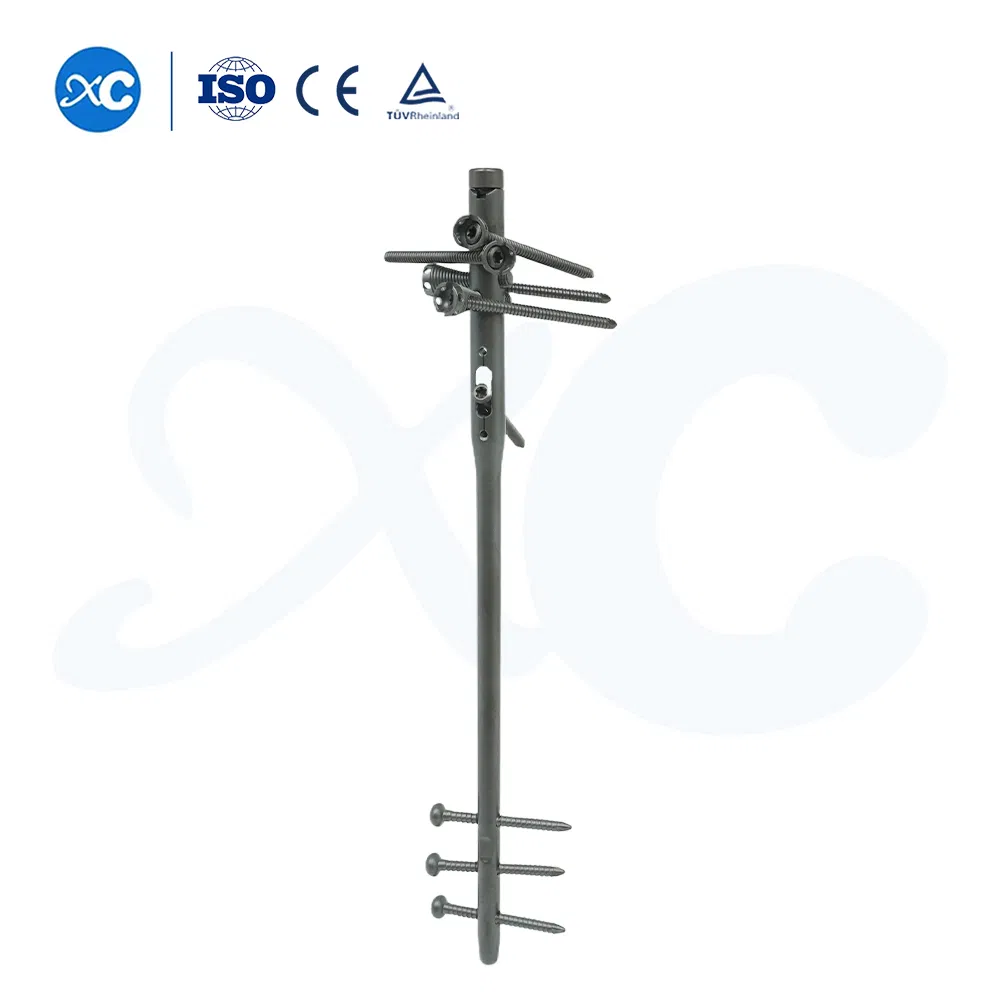

| Model NO. | Humerus Multi Lock Intramedullary Nail |
| Quality Guarantee Period | One Year |
| Group | Children |
| Specification | 1PC |
| Origin | China |
| Transport Package | Box |

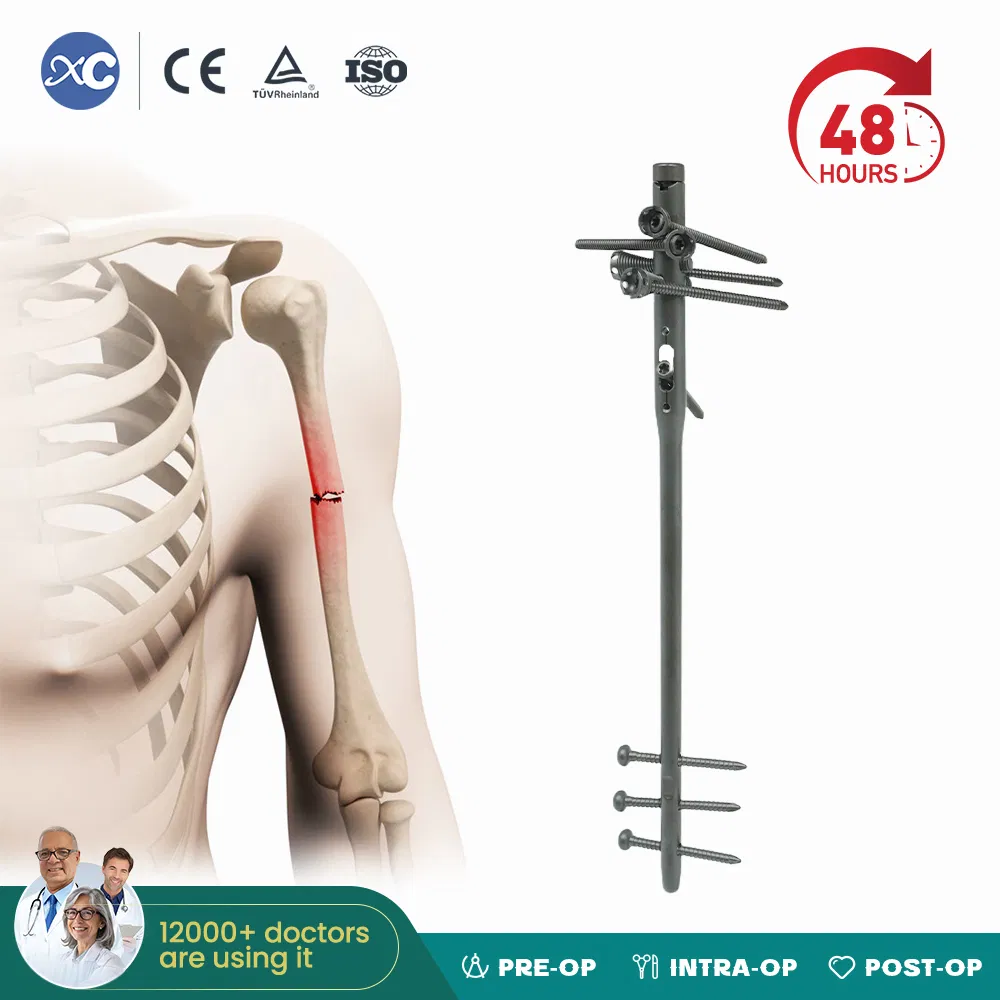

The Humerus Multi-Lock Intramedullary Nails are designed for the treatment of humerus fractures. These nails provide internal fixation and stability to facilitate bone healing in the humeral shaft and proximal region.
| Product | Material | Specification (mm) |
|---|---|---|
| Humerus Multi Lock Intramedullary Nails | Titanium Alloy | 8.5*160 L / R |
| Titanium Alloy | 7.0*200 - 300 L / R | |
| Titanium Alloy | 8.0*200 - 300 L / R |

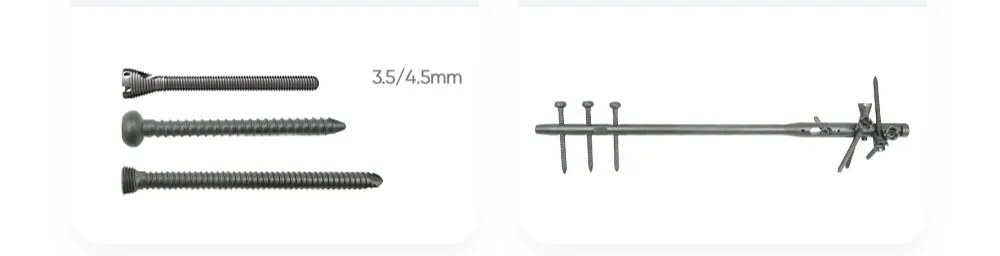

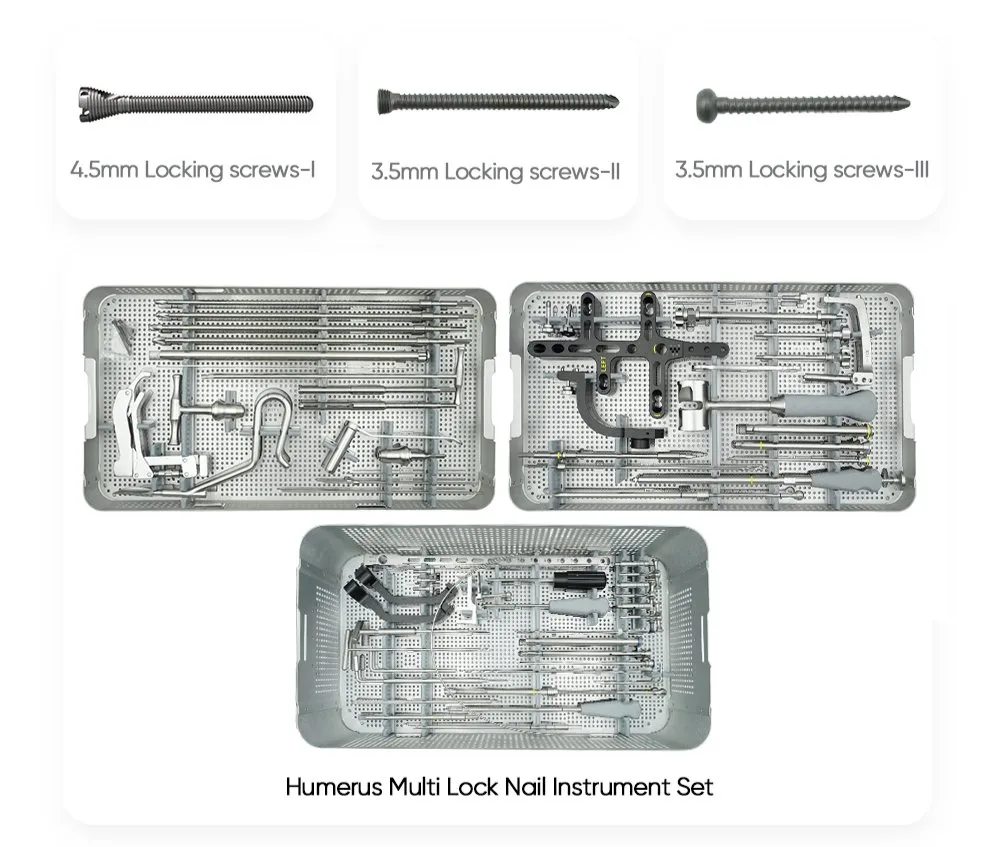

| Component | REF Code | Size / Length (mm) |
|---|---|---|

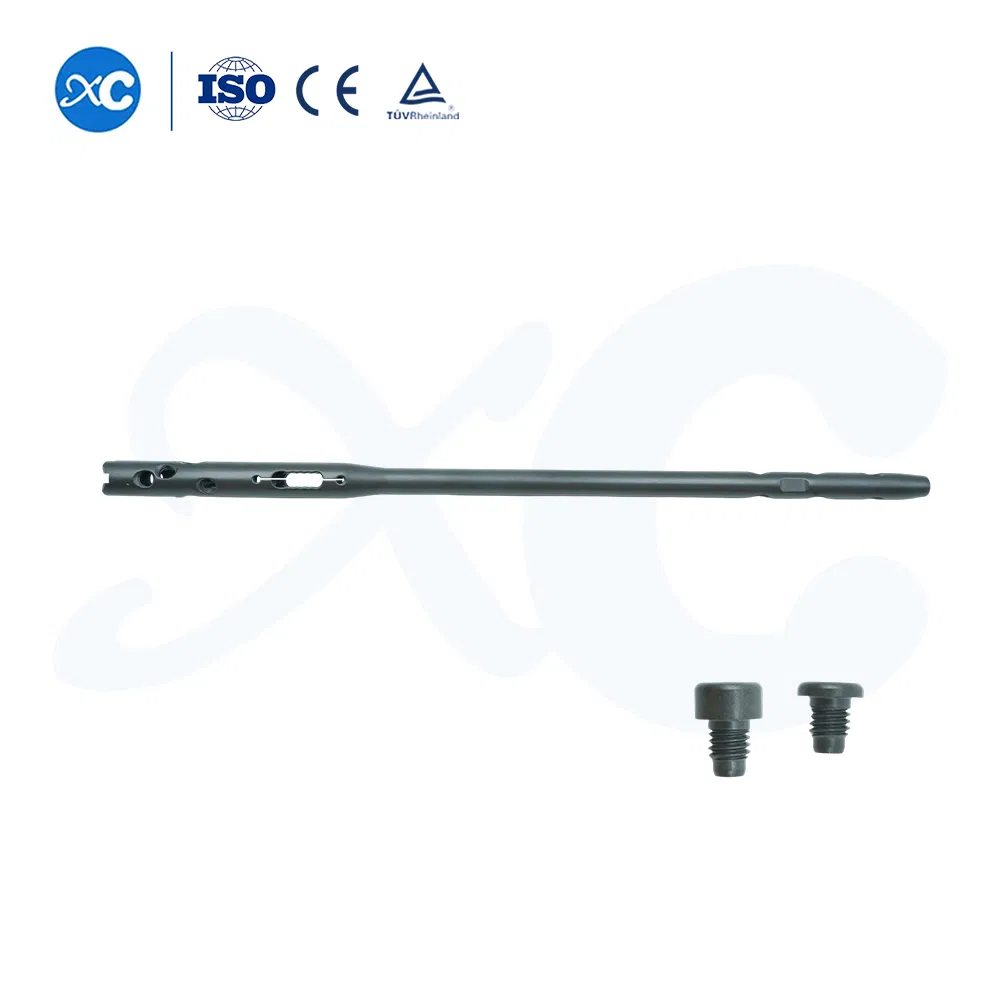

| End Cap | RZDG1WM2-15 | 2, 5, 10, 15 |

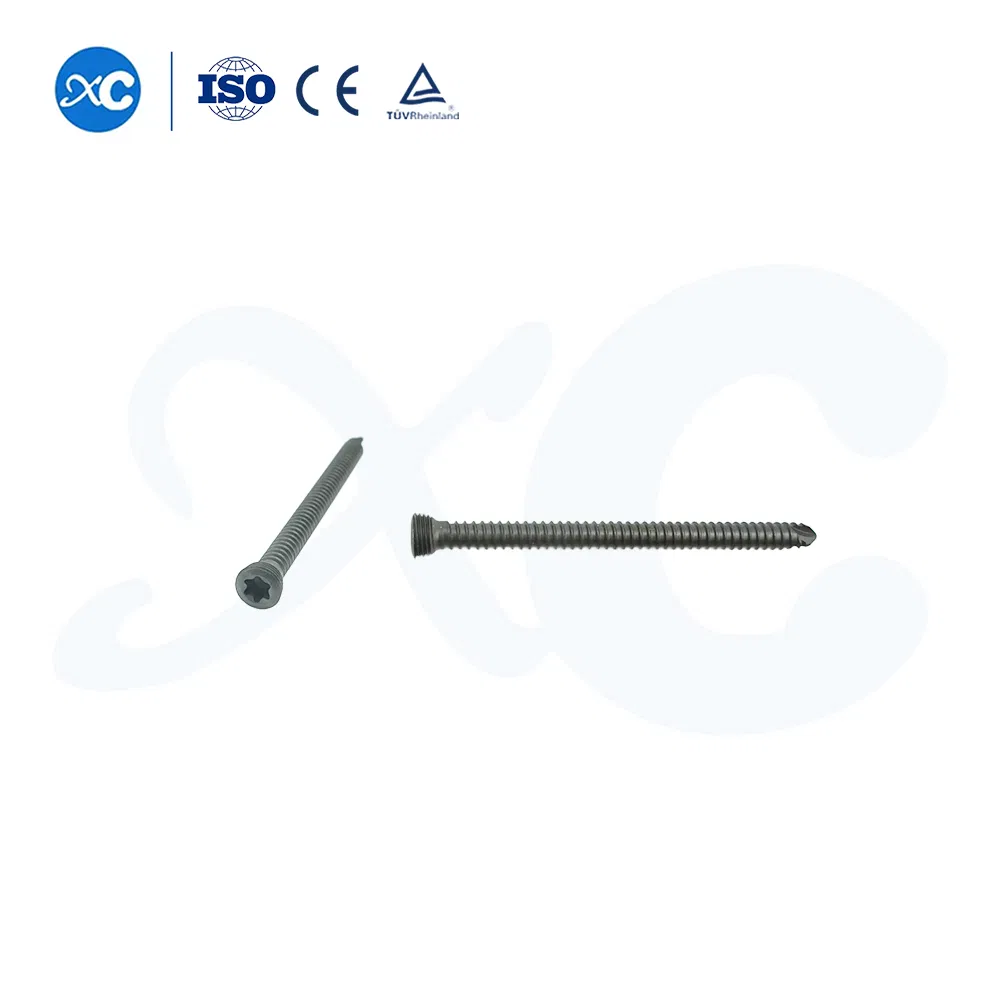

| Locking Screw-I | RZDG1LD4520-60 | 4.5 × 20-60 |
| Locking Screw-II | RSZS3526-52 | 3.5 × 26-52 |
| Locking Screw-III | RZDG1LD3520-66 | 3.5 × 20-66 |

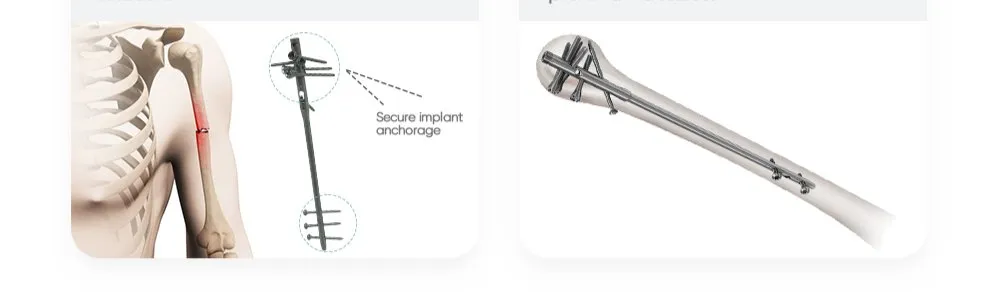

Maintains angular stability and reduces the risk of screw loosening or backing out, ensuring reliable proximal fixation.
Provides support to the humeral head, reducing the risk of varus angulation and aiding stable alignment of proximal fractures.
4.5mm screws provide robust stability; 3.5mm screws can add specific support for cases with weak bone density.
Provides more stable distal fixation, enhancing overall intramedullary nail stability and promoting early mobilization.

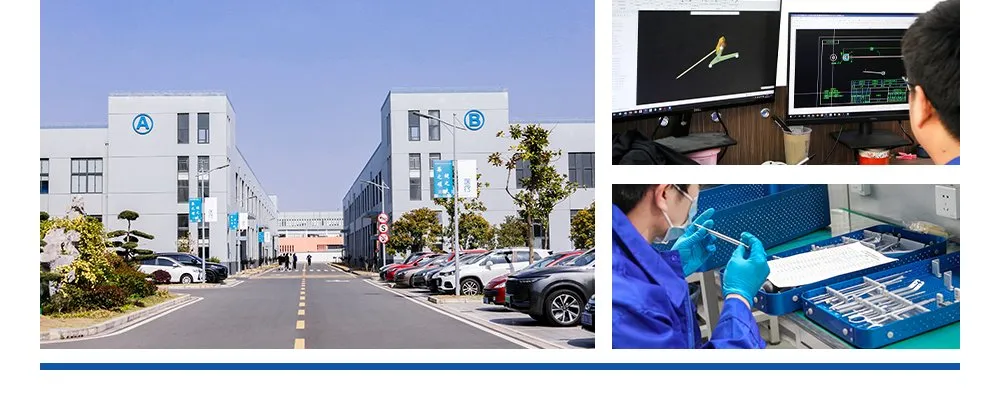

Our team can help you choose the full range of orthopedic implants and instruments. As a professional manufacturer, we have our own production lines and warehouses to ensure quality control and timely delivery.
After 15 years of research and development, we now have 6 main series of orthopedic products, such as spinal systems, interlocking nail systems, locking plate systems, basic instrument systems, and medical power tool systems. We continue to develop new areas like veterinary orthopedic products.
