Voila Orthopedic Implants
1 / 5

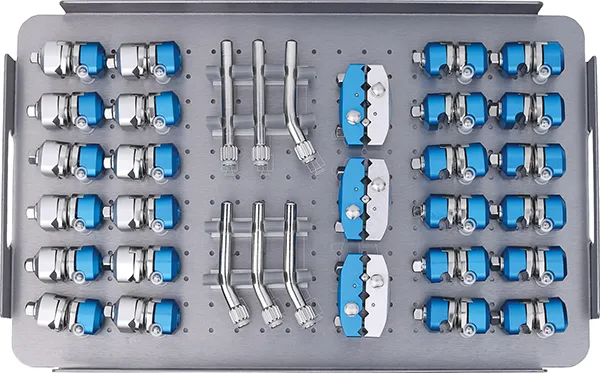

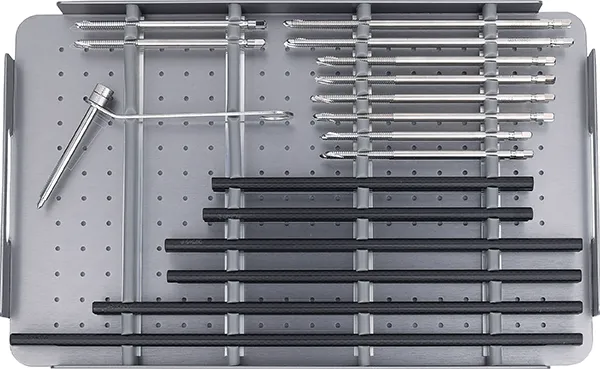

| Component Name | Specification | Quantity |
|---|---|---|
| Pin To Rod Coupling | φ8/4-5 | 12 |
| Rod To Rod Coupling | φ8/8 | 12 |
| 5-Hole Pin Clamp | φ8/5 | 3 |
| Straight Post | φ8 | 2 |
| 30° Post | φ8 | 4 |
| Self Drilling/Self Tapping Bone Screws | φ5*180 / 150 / 130 / 120 | 20 Total |
| Guides | φ4/5 | 1 |
| Carbon Fibre Rod | φ8*350 / 300 / 250 / 200 | 12 Total |
| Semi-Circular Curved Connecting Rod | φ8*160 / 200 | 2 |

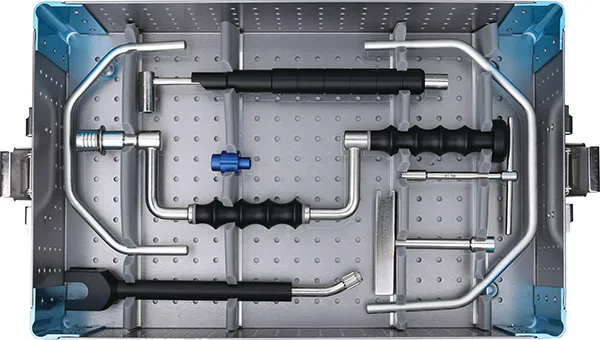

| T-Wrench / Stabilization Wrench | #7 / #22 | 2 |
| Hand Drill / Screw Driver | φ5 | 2 |
Includes Rod to Rod Couplings, Pin to Rod Couplings, 5-Hole Pin Clamps, 30° Posts, and Curved Connecting Rods with Carbon Fibre Rods. Used specifically for Proximal Tibia fractures.

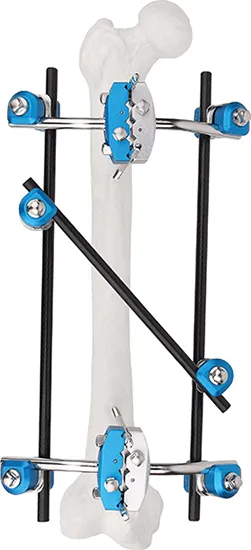

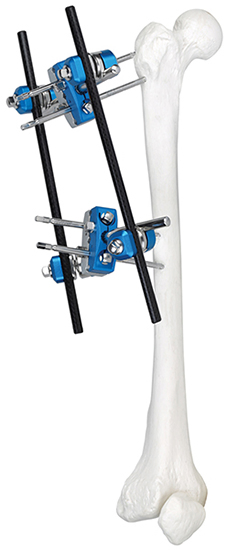

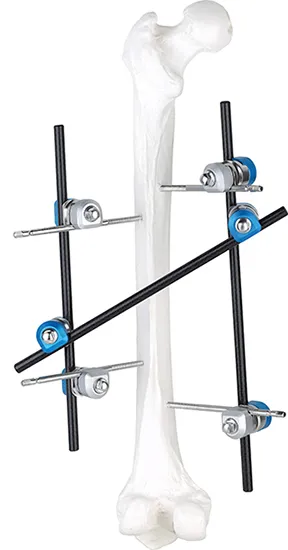

Optimized for femoral shaft stability. Components include φ8/8 Rod Couplings, φ8/4-5 Pin Couplings, and specific Carbon Fibre Rods (200mm/250mm).

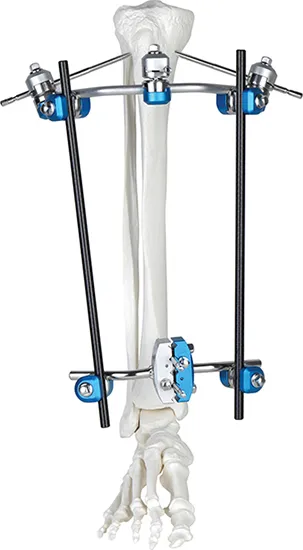

Designed for Tibia Perone applications. Utilizes 6 Rod to Rod Couplings and 5-Hole Pin Clamps for maximum circumferential stability.

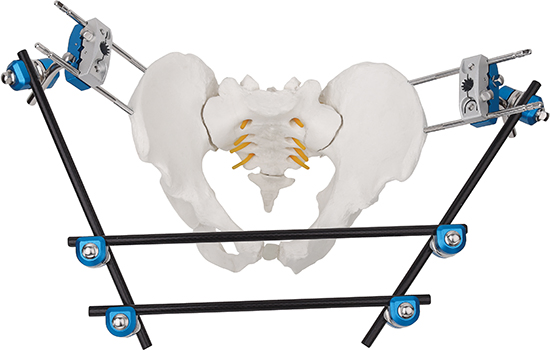

Specialized kit for Pelvic injuries, incorporating 30° posts and multiple carbon fiber rods to maintain structural integrity of the pelvic ring.

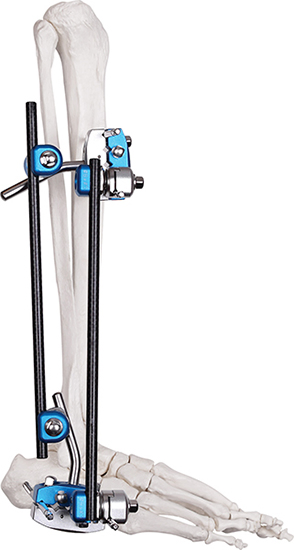

Specifically engineered for Ankle Joint stabilization, utilizing a mix of 5*150mm and 4*130mm bone screws for precise fixation.
